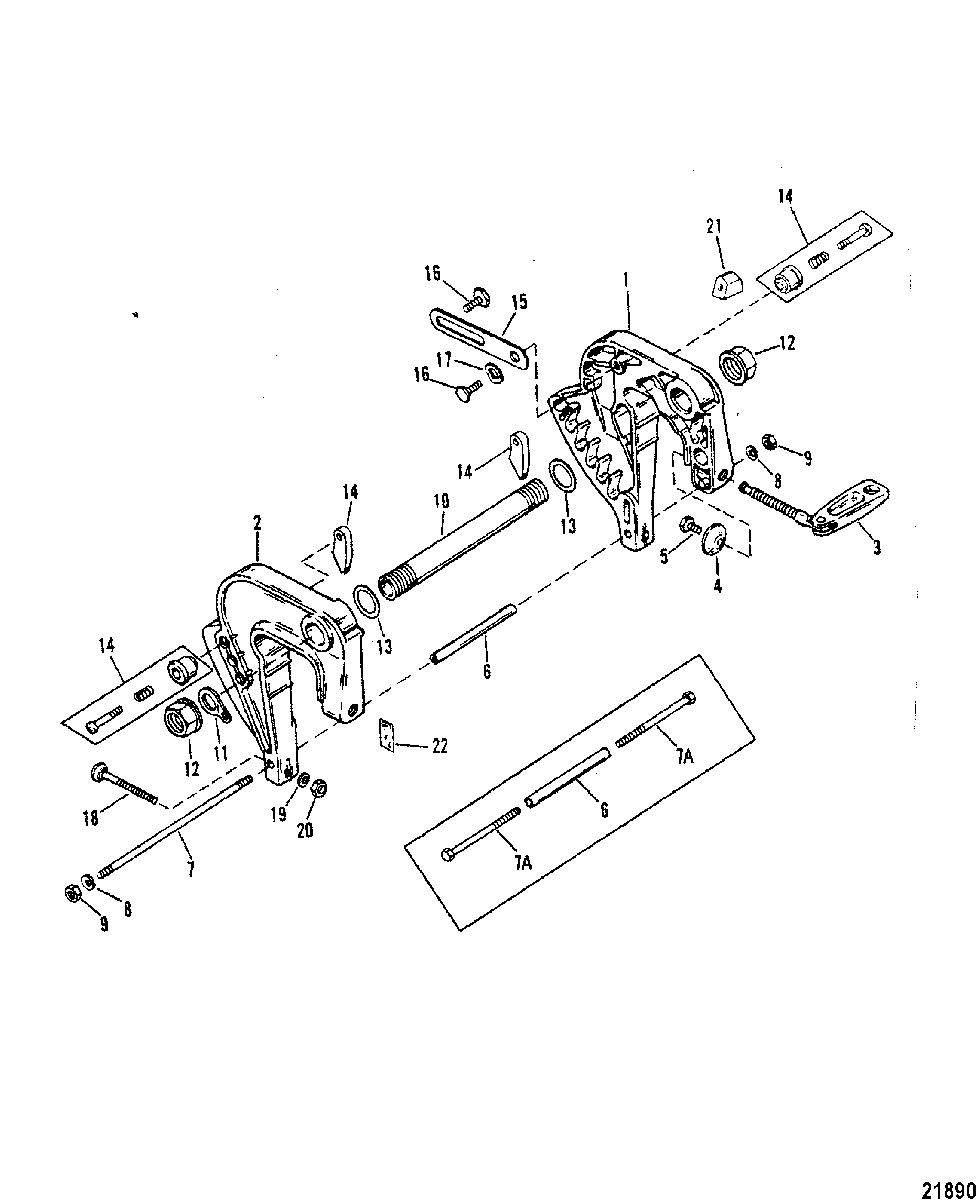

Clamp Bracket для Mariner - 10 MARATHON 0D038000 THRU 0D279999
-
№АртикулНазвание
-
13404-8894A11 CLAMP BRACKET ASSEMBLY (PORT) BLACKCLAMP BRACKET ASSEMBLY (PORT) BLACK
-
13404-8894A11 CLAMP BRACKET ASSEMBLY (PORT) GRAYCLAMP BRACKET ASSEMBLY (PORT) GRAY
-
23404-8894A11 CLAMP BRACKET ASSEMBLY (STARBOARD) BLACKCLAMP BRACKET ASSEMBLY (STARBOARD) BLACK
-
23404-8894A11 CLAMP BRACKET ASSEMBLY (STARBOARD) GRAYCLAMP BRACKET ASSEMBLY (STARBOARD) GRAY
-
310-92767A1 THUMB SCREW ASSEMBLY, (14 mm)THUMB SCREW ASSEMBLY, (14 mm)
-
310-92767A3 THUMB SCREW ASSEMBLY, (16 mm)THUMB SCREW ASSEMBLY, (16 mm)
-
412-818884 WASHERWASHER
-
510-768042 SCREWSCREW
-
623-43431 SPACER
(Stud Assembly)SPACER
(Stud Assembly) -
623-8M0084719 SPACER
(Screw Assembly)SPACER
(Screw Assembly) -
716-42129 STUD
(Stud Assembly)STUD
(Stud Assembly) -
7A10-4000333 SCREW, (M6 x 40)
(Screw Assembly)SCREW, (M6 x 40)
(Screw Assembly) -
813-400256 LOCKWASHER, (M6)
(Stud Assembly)LOCKWASHER, (M6)
(Stud Assembly) -
911-400212 NUT, (M6) Stainless Steel
(Stud Assembly)NUT, (M6) Stainless Steel
(Stud Assembly) -
1042078 TILT TUBETILT TUBE
-
1154-8M0085928 CLIPCLIP
-
1211-93164 NUT, (.875)NUT, (.875)
-
1312-71421 WASHER, NylonWASHER, Nylon
-
1442390A1 LEVER ASSEMBLY, Tilt ReturnLEVER ASSEMBLY, Tilt Return
-
1590901 STRAP, TILT STOP-PORT SIDESTRAP, TILT STOP-PORT SIDE
-
1610-42498 SCREW, (M6 x 1.0)SCREW, (M6 x 1.0)
-
1713-31030 WAVE WASHERWAVE WASHER
-
1810-43216 BOLT, (.250-20 x 3.50)BOLT, (.250-20 x 3.50)
-
1912-67983 WASHERWASHER
-
2011-8267118 NUT, (.250-20)NUT, (.250-20)
-
21814427 SHUTTLESHUTTLE
-
2237-12869 DECAL, Tilt PositionDECAL, Tilt Position
