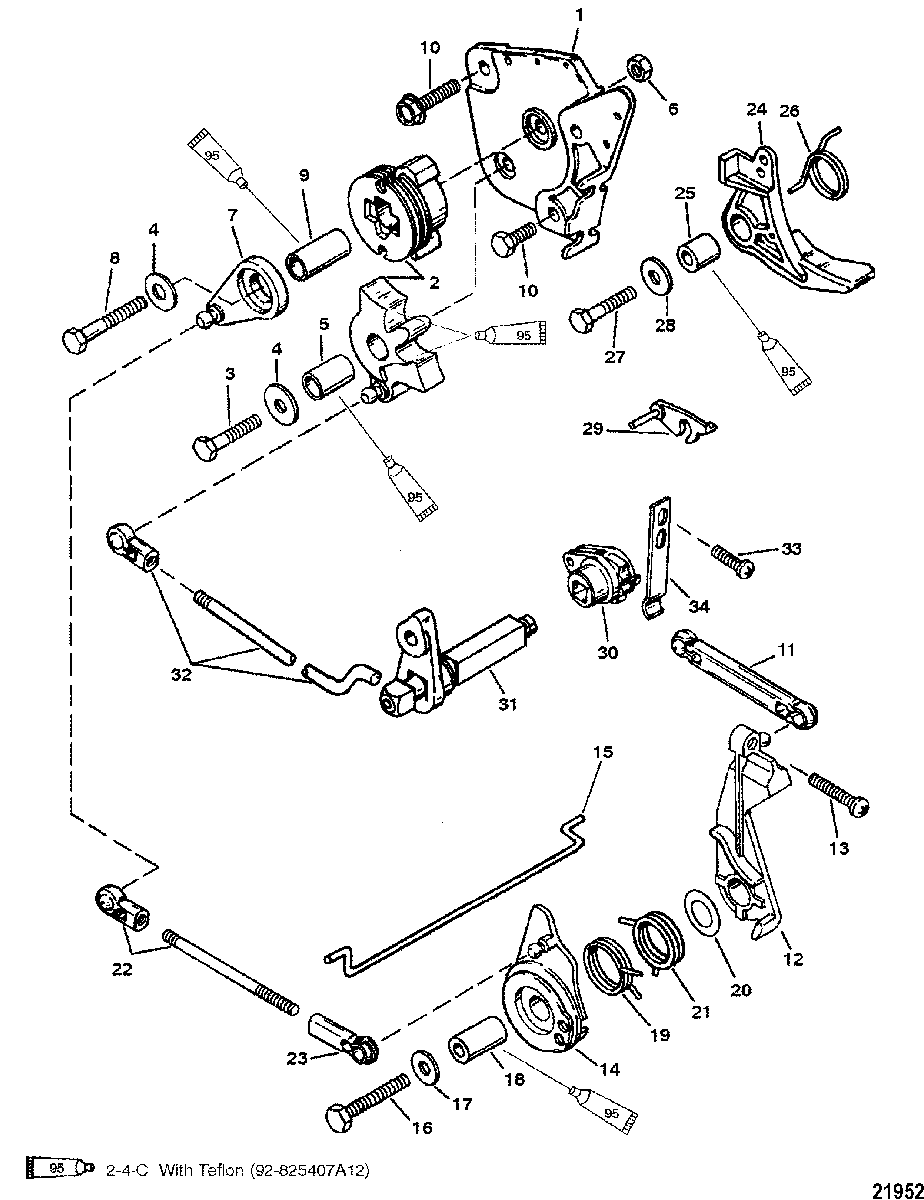

Throttle and Shift Linkage(Tiller Handle Models) для Mariner - 10 MAGNUM 9792200 THRU 0P016999
-
№АртикулНазвание
-
18M0047593 CONTROL PLATFORMCONTROL PLATFORM
-
294085A1 GEARGEAR
-
310-826650 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
412-4002316 WASHERWASHER
-
523-856737 SPACER (SHORT)SPACER (SHORT)
-
611-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
742151 LEVER, PrimaryLEVER, Primary
-
810-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
923-856738 SPACER (LONG)SPACER (LONG)
-
1010-4000171 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
11421671 TIMING LINKTIMING LINK
-
12421631 LEVER, ControlLEVER, Control
-
1310-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
14421662 ACTUATORACTUATOR
-
1542161 LINK INTERLOCKLINK INTERLOCK
-
1610-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1712-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
1823-421621 BUSHINGBUSHING
-
1924-42164 SPRINGSPRING
-
2013-69708 WAVE WASHERWAVE WASHER
-
2124-13676 SPRINGSPRING
-
228M0084745 LINK ASSEMBLY, ThrottleLINK ASSEMBLY, Throttle
-
238M0084742 SOCKETSOCKET
-
24421592 LEVERLEVER
-
2523-421581 BUSHINGBUSHING
-
2624-42160 SPRINGSPRING
-
2710-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
2812-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
2942156 LEVERLEVER
-
3042153 LEVERLEVER
-
318155501 SHIFT SHAFTSHIFT SHAFT
-
32815567T02 SHIFT LINKSHIFT LINK
-
3310-400011 SCREW, (M5 x 8)SCREW, (M5 x 8)
-
3424-39627 SPRINGSPRING
