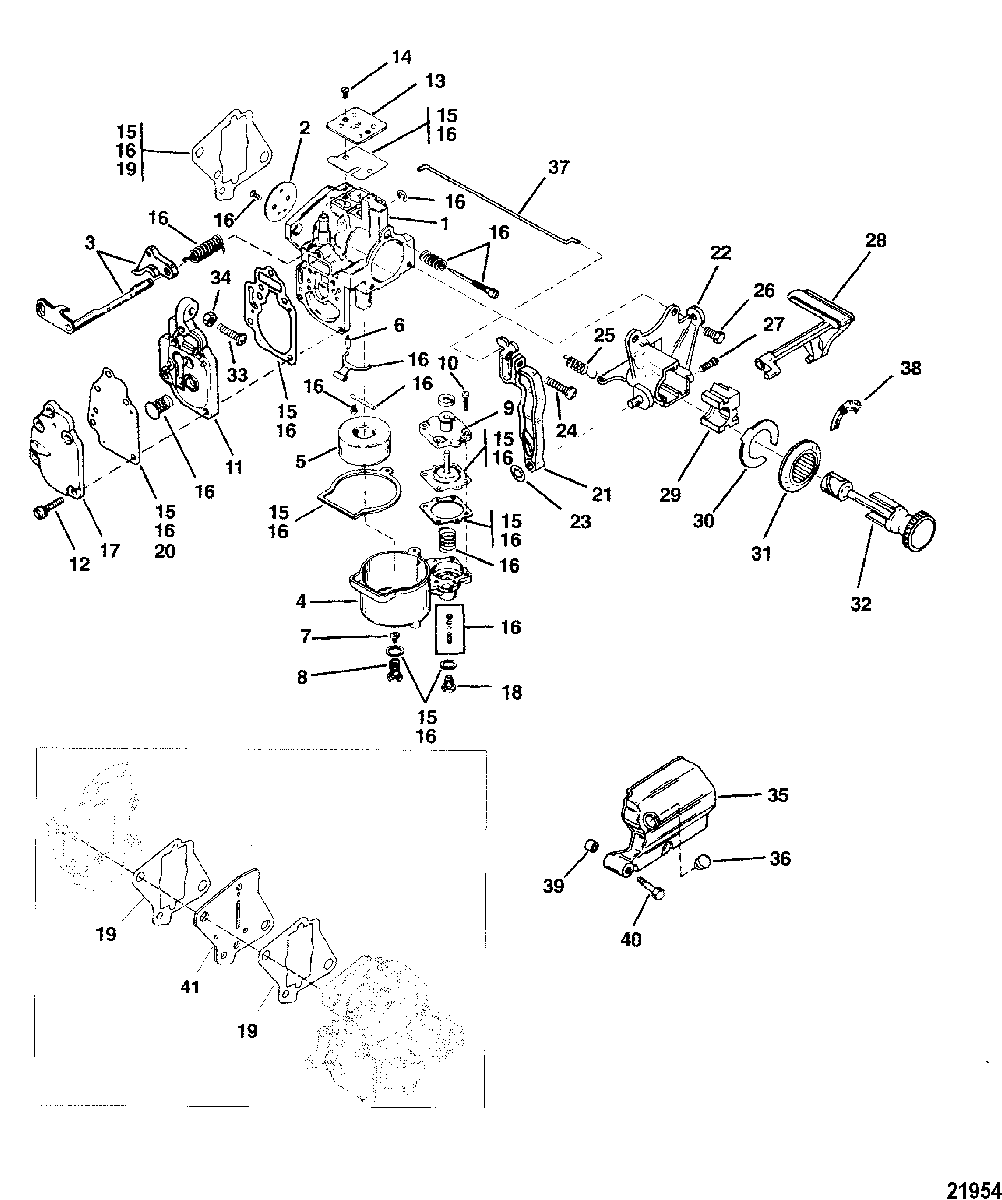

Carburetor(XR10/Magnum 10) для Mariner - 10 MAGNUM 9792200 THRU 0P016999
-
№АртикулНазвание
-
11392-8846A24 CARBURETOR
(WMC-23)CARBURETOR
(WMC-23) -
11392-827005T08 CARBURETOR
(WMC-48)CARBURETOR
(WMC-48) -
11392-827005T08 CARBURETOR
(WMC-48A)CARBURETOR
(WMC-48A) -
11392-9726T18 CARBURETOR
(WMC-49A-NORWAY)CARBURETOR
(WMC-49A-NORWAY) -
2815133 VALVE, Throttle
(WMC-23/48/48A)VALVE, Throttle
(WMC-23/48/48A) -
21395-823716 VALVE, Throttle
(WMC-49/49A)VALVE, Throttle
(WMC-49/49A) -
3813022 SHAFT, Throttle (INCLS. SCREW/SPRING)
(WMC-23/48/48A)SHAFT, Throttle (INCLS. SCREW/SPRING)
(WMC-23/48/48A) -
319267 SHAFT, Throttle (INCLS. SCREW & SPRING)
(WMC-49/49A)SHAFT, Throttle (INCLS. SCREW & SPRING)
(WMC-49/49A) -
41395-9164 BOWL, FuelBOWL, Fuel
-
51395-91691 FLOATFLOAT
-
698551 VALVE, Inlet NeedleVALVE, Inlet Needle
-
71395-6359 JET, (.052)
(WMC-23/48/48A)JET, (.052)
(WMC-23/48/48A) -
-1395-6207 JET, (.072)
(WMC-49/49A)JET, (.072)
(WMC-49/49A) -
81395-9171 PLUGPLUG
-
9813618 COVER
(WMC-23)COVER
(WMC-23) -
91395-823648 COVER, Diaphragm
(WMC-48/48A/49/49A)COVER, Diaphragm
(WMC-48/48A/49/49A) -
101395-9697 SCREWSCREW
-
111395-9702 BODYBODY
-
121395-9643 SCREWSCREW
-
131395-9699 PLATEPLATE
-
141395-9696 SCREWSCREW
-
151395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
161395-8237072 REPAIR KITREPAIR KIT
-
171395-9637 COVERCOVER
-
181395-9762 PLUGPLUG
-
1927-192061 GASKET, CarburetorGASKET, Carburetor
-
201395-9635 DIAPHRAGM/GASKETDIAPHRAGM/GASKET
-
21128053 LEVER, Fast IdleLEVER, Fast Idle
-
2212803 BRACKET, PrimerBRACKET, Primer
-
2311-821979 NUTNUT
-
2410-12110 SCREW, (#6-32 x .750)SCREW, (#6-32 x .750)
-
2524-11277 SPRING, TensionSPRING, Tension
-
2610-400018 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
2710-79965 SCREW, (#8-32 x .500) Stainless SteelSCREW, (#8-32 x .500) Stainless Steel
-
28112731 LEVER, PrimerLEVER, Primer
-
2911280 CAM BLOCKCAM BLOCK
-
3053-11278 CLIP, RetainingCLIP, Retaining
-
3112804A1 BEZEL ASSEMBLY, ChokeBEZEL ASSEMBLY, Choke
-
32128022 PRIMER KNOBPRIMER KNOB
-
3310-40056110 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
3411-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
35174421 COVER, Carburetor
USE WHERE APPLICABLECOVER, Carburetor
USE WHERE APPLICABLE -
3619-47579 PLUG
USE WHERE APPLICABLEPLUG
USE WHERE APPLICABLE -
37445541 IDLE WIREIDLE WIRE
-
3837-129701 DECAL (SLOW/FAST)DECAL (SLOW/FAST)
-
3941750T INSERTINSERT
-
4010-40056110 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
41125681 RESTRICTOR PLATE
(NORWAY)RESTRICTOR PLATE
(NORWAY) -
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
