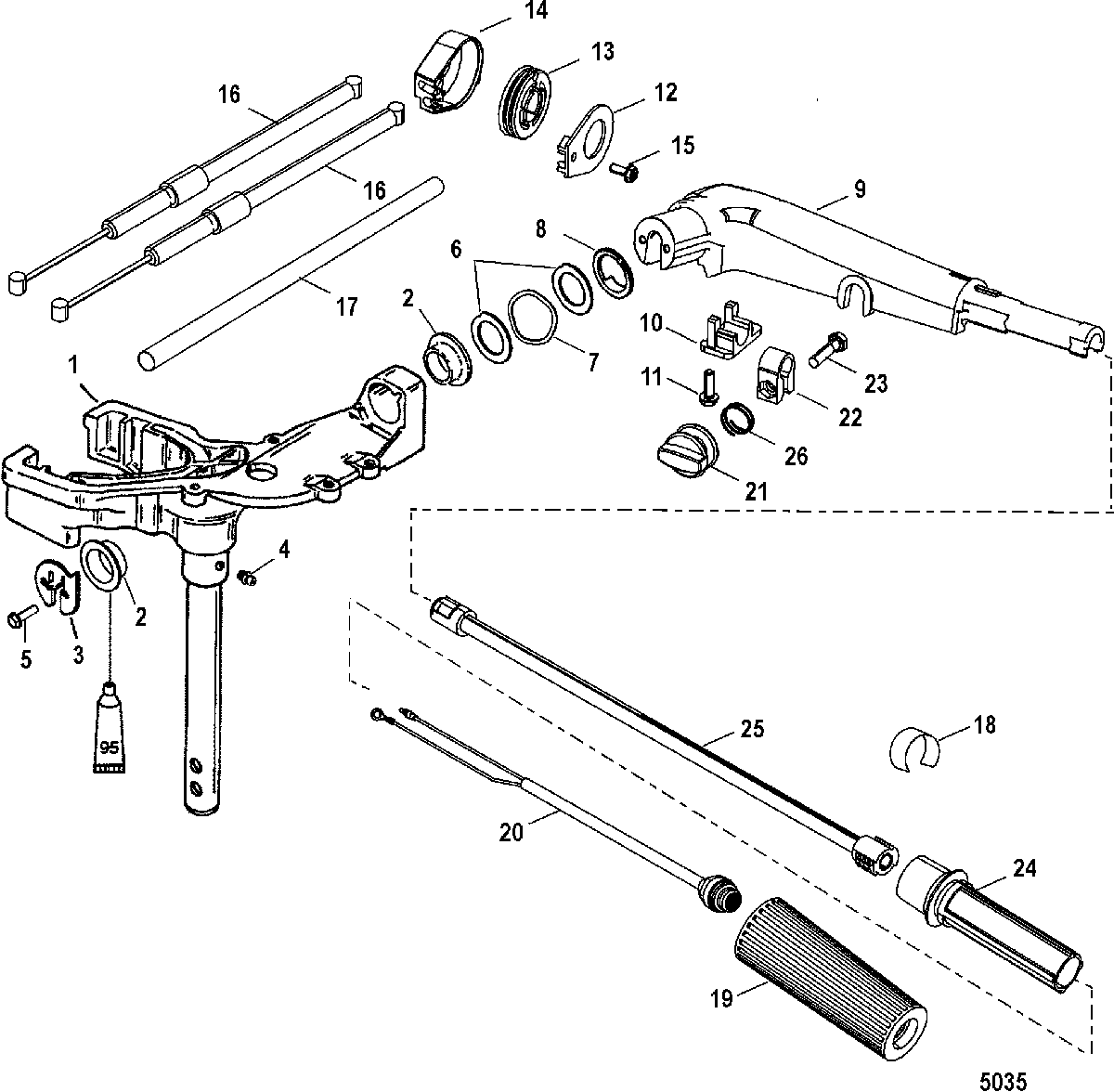

Swivel Head and Steering Handle для Mariner - 10 MAGNUM 0P017000 THRU 0P325499
-
№АртикулНазвание
-
142213A24 SWIVEL HEAD
(Black)SWIVEL HEAD
(Black) -
223-823939 BUSHINGBUSHING
-
38221471 PLATEPLATE
-
422-74036 FITTING, GreaseFITTING, Grease
-
510-4010516 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
612-822145 WASHERWASHER
-
713-826792 WAVE WASHERWAVE WASHER
-
812-822146 WASHERWASHER
-
9821468A66 ARM ASSEMBLY, Steering Handle
(Black)ARM ASSEMBLY, Steering Handle
(Black) -
10822441 RETAINERRETAINER
-
1110-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
12822148A3 COVER KIT
(Handle Shift)COVER KIT
(Handle Shift) -
12822148A2 COVER KIT
(Side Shift)COVER KIT
(Side Shift) -
13822150 PULLEYPULLEY
-
14NSS NOT SOLD SEPARATE (Pulley Case)NOT SOLD SEPARATE (Pulley Case)
-
1510-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1643242T18 CABLE, Throttle
(Tiller Handle Shift)CABLE, Throttle
(Tiller Handle Shift) -
16432426 CABLE, Throttle
(Side Shift)CABLE, Throttle
(Side Shift) -
1785-9600910 SLEEVE
(Tiller Handle Shift)SLEEVE
(Tiller Handle Shift) -
1785-960099 SLEEVE, (12.00 Inches)
(Side Shift)SLEEVE, (12.00 Inches)
(Side Shift) -
1837-8242002 DECAL
(Tiller Handle Shift)DECAL
(Tiller Handle Shift) -
1837-8242004 DECAL
(Side Shift)DECAL
(Side Shift) -
1999589003 GRIPGRIP
-
2087-8M0104615 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
21821972T KNOB, ThrottleKNOB, Throttle
-
22892995 LOCK, ThrottleLOCK, Throttle
-
2310-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
24822429 HANDLE, Throttle
(Tiller Handle Shift)HANDLE, Throttle
(Tiller Handle Shift) -
24821465 HANDLE, Throttle
(Side Shift)HANDLE, Throttle
(Side Shift) -
25821463T01 TILLER TUBETILLER TUBE
-
2624-96203 SPRINGSPRING
