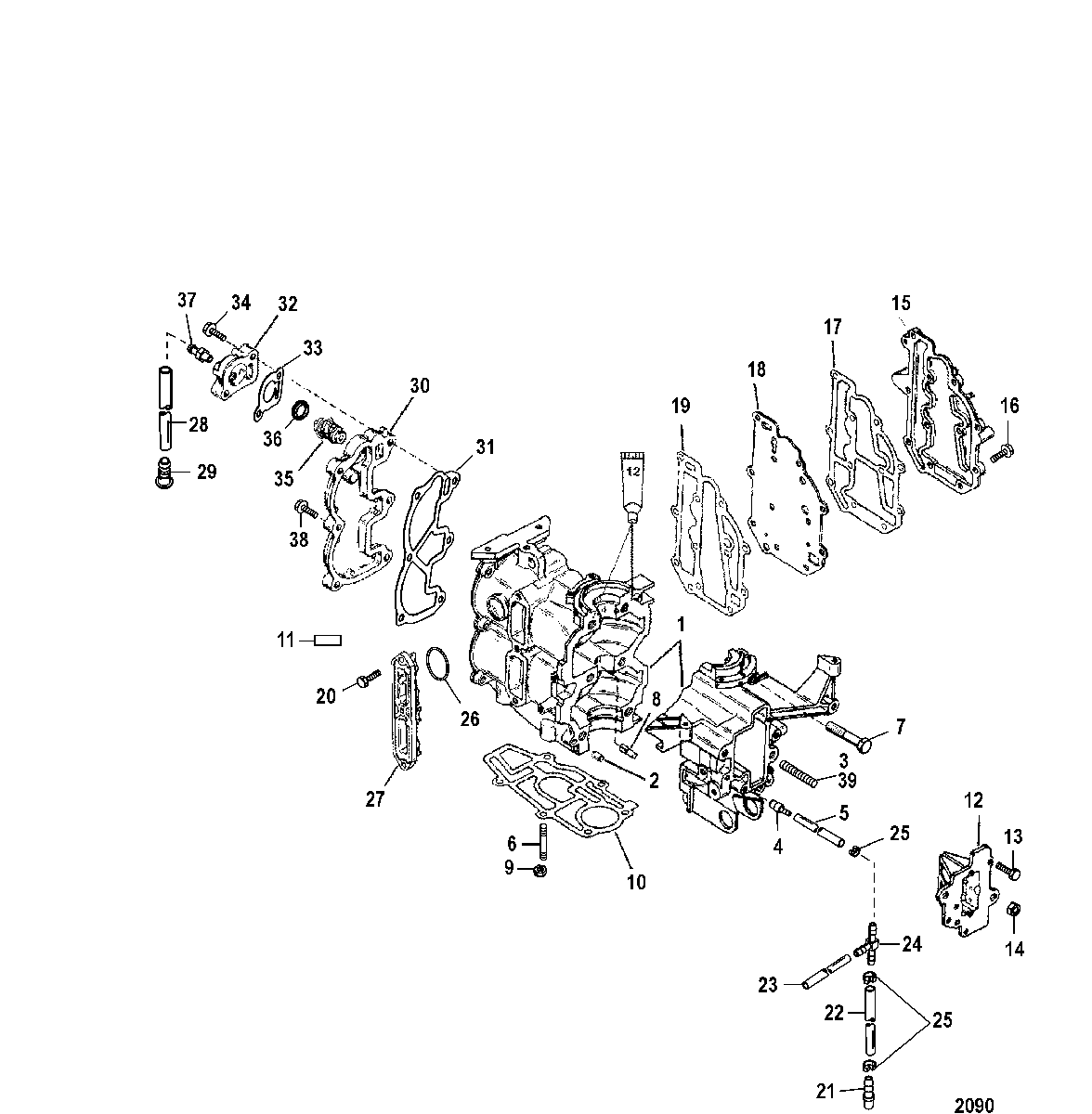

Cylinder Block and Covers для Mariner - 10 MAGNUM 0P017000 THRU 0P325499
-
№АртикулНазвание
-
1881-9727T12 CYLINDER BLOCKCYLINDER BLOCK
-
217-85171 PIN, DowelPIN, Dowel
-
316-424632 STUD, (M8 x 37.1)STUD, (M8 x 37.1)
-
421-426982 CHECK VALVECHECK VALVE
-
532-892024122 TUBING, (20.00 Feet Bulk) (Cut to 2.50 Inch Length)TUBING, (20.00 Feet Bulk) (Cut to 2.50 Inch Length)
-
616-8161949 STUD
(Non Viking)STUD
(Non Viking) -
710-421251 SCREW, (M8 x 55)SCREW, (M8 x 55)
-
817-17866 PIN, GroovePIN, Groove
-
911-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1027-191861 GASKET, PowerheadGASKET, Powerhead
-
11NSS NOT SOLD SEPARATE (Decal Serialization)NOT SOLD SEPARATE (Decal Serialization)
-
12828435A3 REED BLOCKREED BLOCK
-
1310-4000171 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1411-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
158M0048005 COVERCOVER
-
1610-40062129 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1727-19185 GASKETGASKET
-
1842365 PLATE, BafflePLATE, Baffle
-
1927-19184 GASKETGASKET
-
2010-40062129 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2122-56759 FITTING, BarbedFITTING, Barbed
-
2232-892024122 TUBING, (20.00 Feet Bulk) (Cut to 7.00 Inch Length)TUBING, (20.00 Feet Bulk) (Cut to 7.00 Inch Length)
-
2332-892024122 TUBING, (20.00 Feet Bulk) (Cut to 5.25 Inch Length)TUBING, (20.00 Feet Bulk) (Cut to 5.25 Inch Length)
-
2422-59169003 FITTING, TeeFITTING, Tee
-
2554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2625-891935 O-RINGO-RING
-
278M0036812 COVER, IntakeCOVER, Intake
-
2832-8M0108355 HOSE, (57.00 Inches Bulk), Tell Tale (Cut to 6.00 Inch Length)HOSE, (57.00 Inches Bulk), Tell Tale (Cut to 6.00 Inch Length)
-
2922-94848 FITTINGFITTING
-
301033-8906A02 COVER ASSEMBLYCOVER ASSEMBLY
-
3127-19207002 GASKETGASKET
-
328M0039352 COVERCOVER
-
3327-19205002 GASKETGASKET
-
3410-40062129 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3514586 THERMOSTAT (120 Degrees)THERMOSTAT (120 Degrees)
-
3627-62386001 GASKETGASKET
-
3722-291112 FITTINGFITTING
-
3810-40062129 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3916-429173 STUD, Carb
(Viking)STUD, Carb
(Viking) -
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
-
-19072T97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
