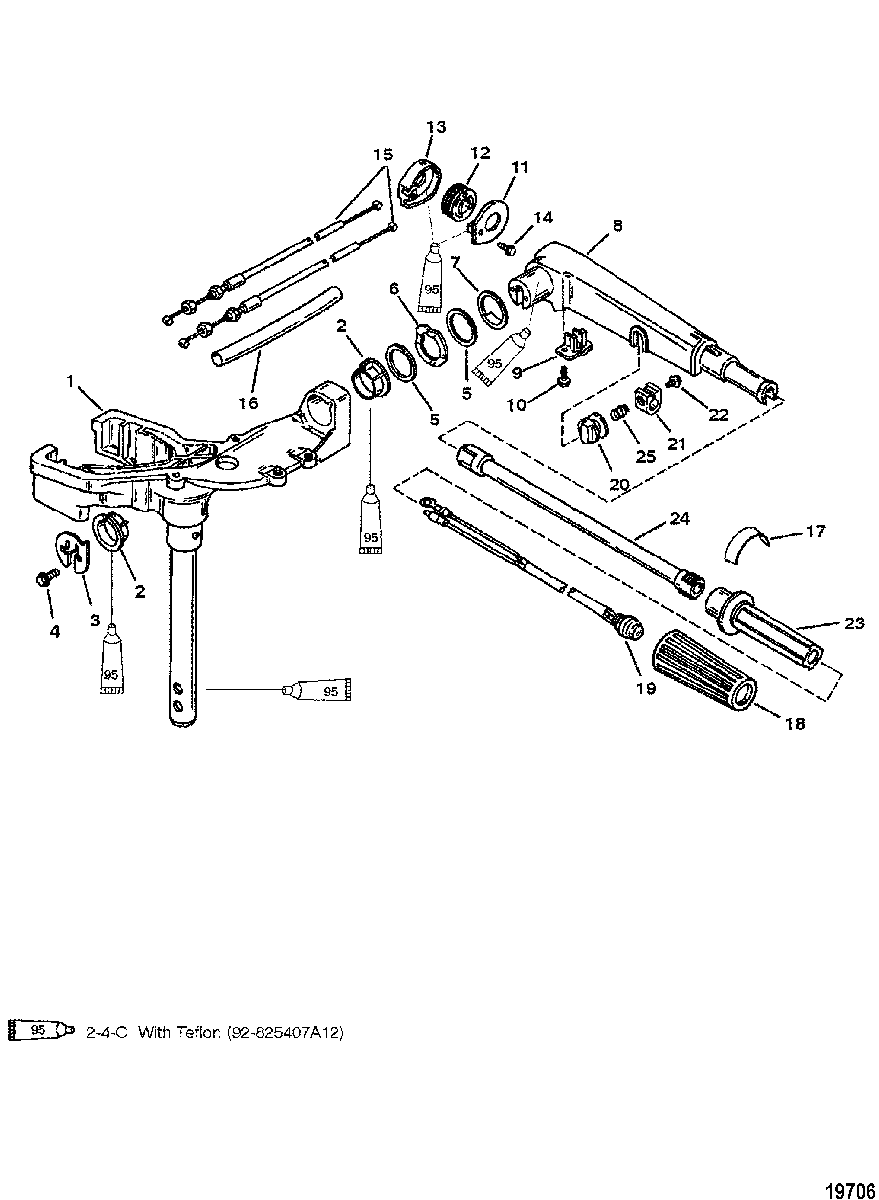

Swivel Head and Steering Handle для Mariner - 10 MAGNUM 0D281000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    42213A24 SWIVEL HEAD
    (BLACK)
    SWIVEL HEAD
    (BLACK)
  • 1
    42213A25 SWIVEL HEAD
    (GRAY)
    SWIVEL HEAD
    (GRAY)
  • 2
    23-823939 BUSHING
    BUSHING
  • 3
    822147 PLATE, Tiller Handle
    (USE WITH 6MM SCREWS REF #4)
    PLATE, Tiller Handle
    (USE WITH 6MM SCREWS REF #4)
  • 3
    8221471 PLATE
    (USE WITH 5MM SCREWS REF #4)
    PLATE
    (USE WITH 5MM SCREWS REF #4)
  • 4
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 4
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 5
    12-822145 WASHER
    WASHER
  • 6
    13-826792 WAVE WASHER
    WAVE WASHER
  • 7
    12-822146 WASHER
    WASHER
  • 8
    821468A66 ARM ASSEMBLY, Steering Handle
    (BLACK)
    ARM ASSEMBLY, Steering Handle
    (BLACK)
  • 8
    821468A66 ARM ASSEMBLY, Steering Handle
    (GRAY)
    ARM ASSEMBLY, Steering Handle
    (GRAY)
  • 9
    822441 RETAINER
    RETAINER
  • 10
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 11
    822148A3 COVER KIT
    (HANDLE SHIFT)
    COVER KIT
    (HANDLE SHIFT)
  • 11
    822148A2 COVER KIT
    (SIDE SHIFT)
    COVER KIT
    (SIDE SHIFT)
  • 12
    822150 PULLEY
    PULLEY
  • 13
    NSS NOT SOLD SEPARATE, Pulley Case (PART OF REF. #11)
    NOT SOLD SEPARATE, Pulley Case (PART OF REF. #11)
  • 14
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 15
    43242T09 CABLE, Throttle
    (HANDLE SHIFT)
    CABLE, Throttle
    (HANDLE SHIFT)
  • 15
    432426 CABLE, Throttle
    (SIDE SHIFT)
    CABLE, Throttle
    (SIDE SHIFT)
  • 16
    85-9600910 SLEEVE
    (HANDLE SHIFT)
    SLEEVE
    (HANDLE SHIFT)
  • 16
    85-960099 SLEEVE, (12.00 Inches)
    (SIDE SHIFT)
    SLEEVE, (12.00 Inches)
    (SIDE SHIFT)
  • 17
    37-8242002 DECAL
    (HANDLE SHIFT)
    DECAL
    (HANDLE SHIFT)
  • 17
    37-8242004 DECAL
    (SIDE SHIFT)
    DECAL
    (SIDE SHIFT)
  • 18
    99589003 GRIP
    GRIP
  • 19
    87-8M0104615 SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 20
    821972T KNOB, Throttle
    KNOB, Throttle
  • 21
    892995 LOCK, Throttle
    LOCK, Throttle
  • 22
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 23
    822429 HANDLE, Throttle
    (HANDLE SHIFT)
    HANDLE, Throttle
    (HANDLE SHIFT)
  • 23
    821465 HANDLE, Throttle
    (SIDE SHIFT)
    HANDLE, Throttle
    (SIDE SHIFT)
  • 24
    821463T01 TILLER TUBE
    TILLER TUBE
  • 25
    24-96203 SPRING
    SPRING
