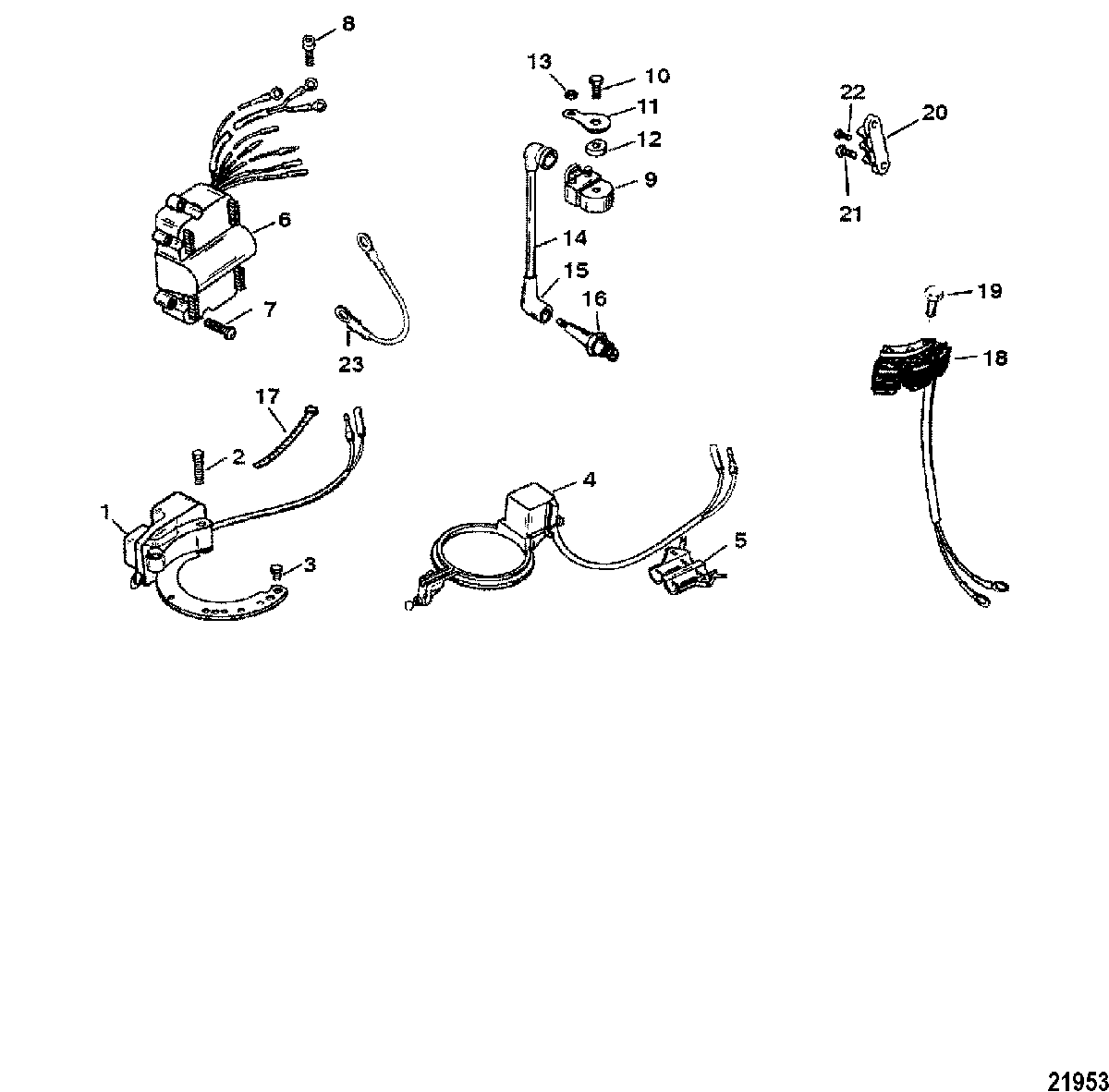

Ignition Components для Mariner - 10 MAGNUM 0D281000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    86617A20 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 2
    10-4000120 SCREW, (M5 x 25)
    SCREW, (M5 x 25)
  • 3
    10-400018 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 4
    98450A10 TRIGGER ASSEMBLY
    TRIGGER ASSEMBLY
  • 5
    11100 CLIP
    CLIP
  • 6
    339-7452A19 SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 7
    10-40019108 SCREW, (M5 x 20)
    SCREW, (M5 x 20)
  • 8
    10-48408 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 9
    339-832757A4 COIL KIT
    COIL KIT
  • 10
    10-40112 SCREW, (M6 x 45)
    SCREW, (M6 x 45)
  • 11
    88173 TAB WASHER
    TAB WASHER
  • 12
    23-88171 BUSHING
    BUSHING
  • 13
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 14
    84-813715A2 CABLE SET, High Tension (5 and 8.25 Inch)
    CABLE SET, High Tension (5 and 8.25 Inch)
  • 15
    85-63709A1 BOOT/TERMINAL KIT
    BOOT/TERMINAL KIT
  • 16
    33-14814568 SPARK PLUG (NGK#BPZ8HS)
    SPARK PLUG (NGK#BPZ8HS)
  • 16
    33-8M0114746 SPARK PLUG (NGK#BP8HS-15)
    SPARK PLUG (NGK#BP8HS-15)
  • 17
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 18
    86704A10 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 19
    10-4000123 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
  • 20
    86-638131 TERMINAL BLOCK
    TERMINAL BLOCK
  • 21
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 22
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 23
    84-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black
    CABLE ASSEMBLY, (4.00 Inches) Black
