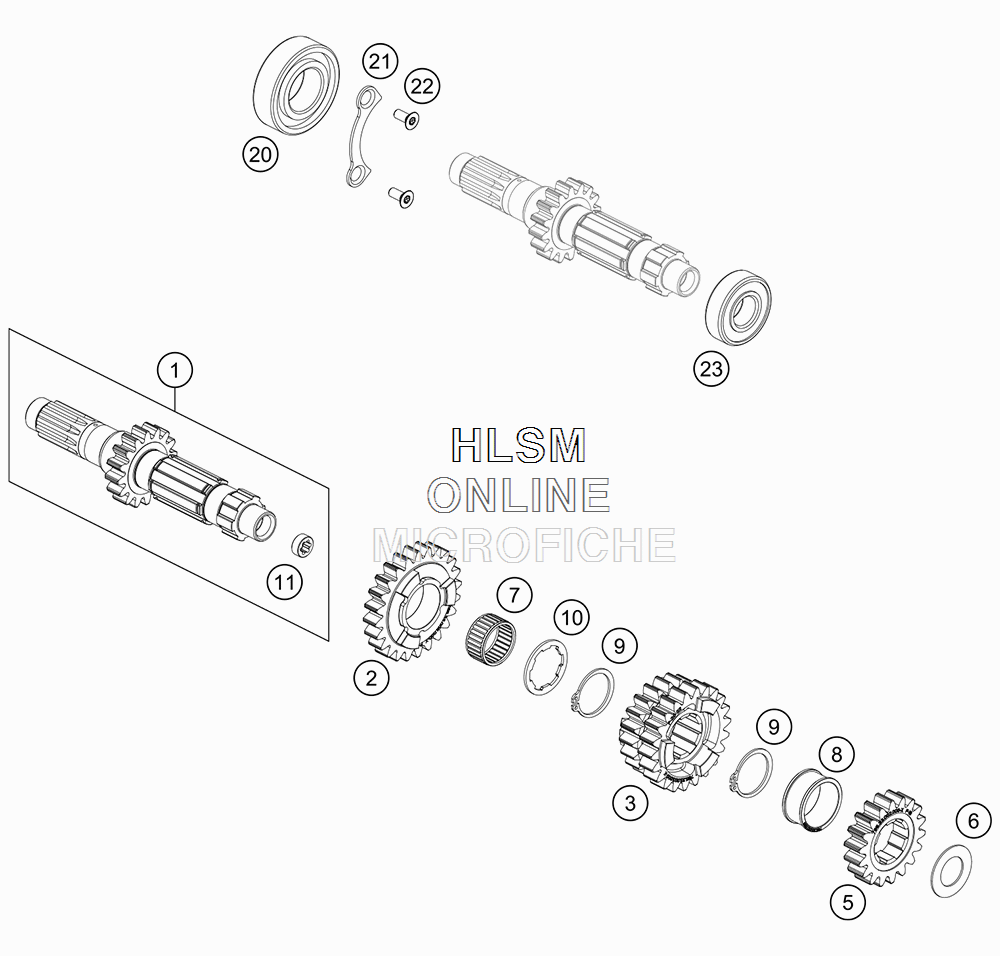

TRANSMISSION I - MAIN SHAFT для Ktm 450 SX-F - 2019 года выпуска
-
№АртикулНазвание
-
179533001000 INPUT SHAFTINPUT SHAFT
-
279533005000 IDLER GEAR 5 TH.IDLER GEAR 5 TH.
-
379533003000 SLIDING GEAR 3./4.SLIDING GEAR 3./4.
-
579533002000 FIXED GEAR 2 ND.FIXED GEAR 2 ND.
-
656033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
-
70405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
70405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
90417025000 CIRCLIP SW25CIRCLIP SW25
-
1079533034000 THRUST WAHSERTHRUST WAHSER
-
1178033001110 BUSHINGBUSHING
-
200625062056 GROOVE BALL BEARING 6205 C4 NTNGROOVE BALL BEARING 6205 C4 NTN
-
2178033032000 TAB WASHER BEARING MAIN SHAFTTAB WASHER BEARING MAIN SHAFT
-
220019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
-
230625062036 BALL BEARING 6203 RSH C3BALL BEARING 6203 RSH C3
