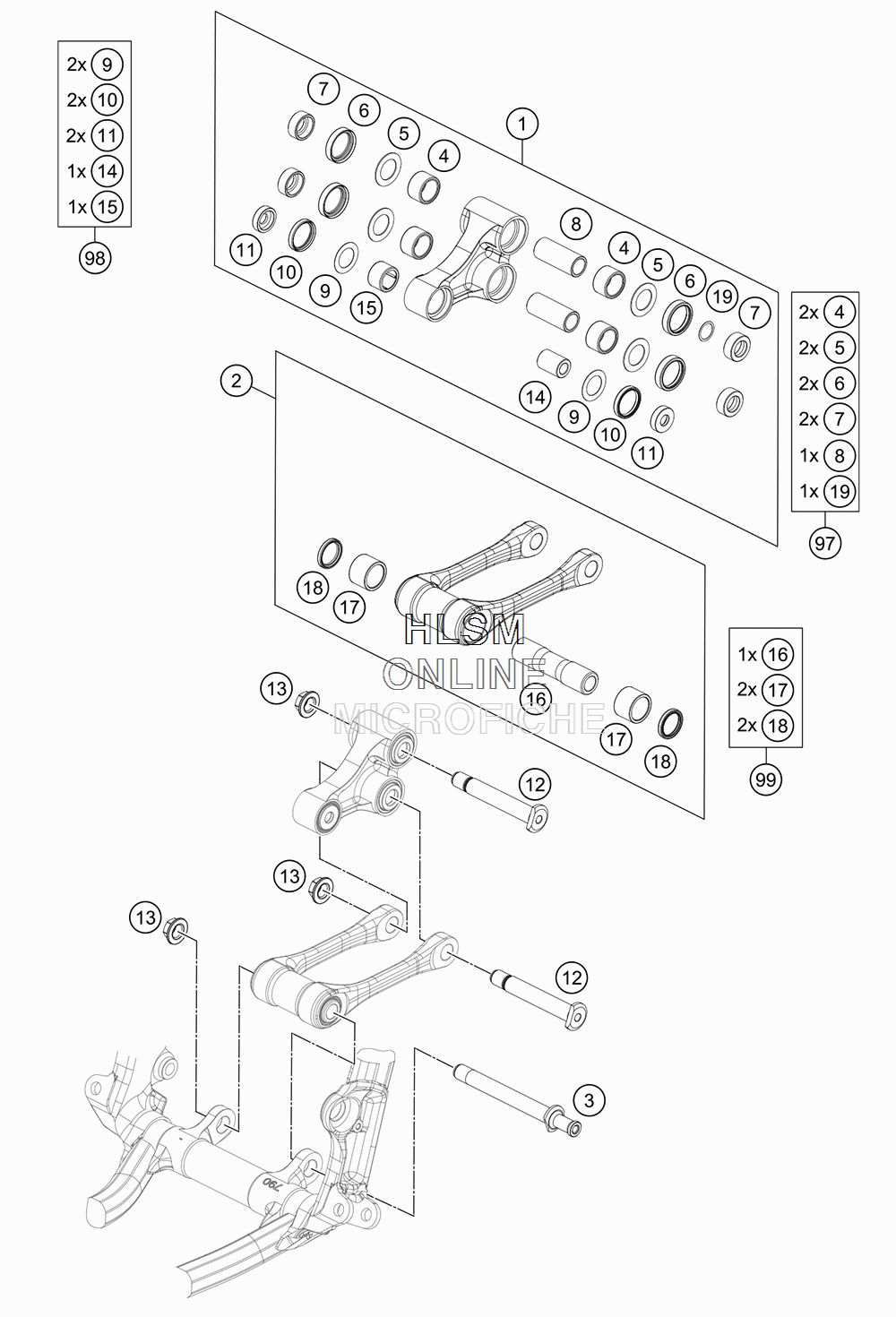

PRO LEVER LINKING для Ktm 450 SX-F - 2019 года выпуска

  • №
    Артикул
    Название
  • 1
    7900408014401 TRIANGLE LEVER CPL. SX
    TRIANGLE LEVER CPL. SX
  • 2
    7900408304401 PULLROD CPL. SX 2016
    PULLROD CPL. SX 2016
  • 3
    79004084000 BOLT TIE-ROD BEARING M14X1,5
    BOLT TIE-ROD BEARING M14X1,5
  • 4
    54603097000 NEEDLE BUSH HK 2016
    NEEDLE BUSH HK 2016
  • 5
    59033080000 SHIM 20X32X1
    SHIM 20X32X1
  • 6
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 7
    77204080130 BUCKET SHAFT SEAL RING 25X11
    BUCKET SHAFT SEAL RING 25X11
  • 8
    54603081000 BUSHING SLEEVE 15 X 20 X 48
    BUSHING SLEEVE 15 X 20 X 48
  • 9
    50180604 SHIM D29,75 X D19 X T0,4
    SHIM D29,75 X D19 X T0,4
  • 10
    0760243050 SHAFT SEAL RING 24X30X5
    SHAFT SEAL RING 24X30X5
  • 11
    77204080020 BUCKET FOR SHAFT SEAL RING
    BUCKET FOR SHAFT SEAL RING
  • 12
    77204085000 BOLT FOR CANTILEVER M14
    BOLT FOR CANTILEVER M14
  • 13
    77204087000 HEX NUT M14X1.5 SW17
    HEX NUT M14X1.5 SW17
  • 14
    77204080010 BEARING SLEEVE 10X18X25,5
    BEARING SLEEVE 10X18X25,5
  • 15
    0618182416 NEEDLE BUSH HN1816 RS 18/24/16
    NEEDLE BUSH HN1816 RS 18/24/16
  • 16
    79004084010 BEARING SLEEVE F. TIE-ROD
    BEARING SLEEVE F. TIE-ROD
  • 17
    0618222820 NEEDLE BEARING HK2220 22X28X20
    NEEDLE BEARING HK2220 22X28X20
  • 18
    0760222841 SHAFT SEAL RING G22X28X4
    SHAFT SEAL RING G22X28X4
  • 19
    54603090010 STEEL WASHER 15,2X19X0,1
    STEEL WASHER 15,2X19X0,1
  • 19
    54603090020 STEEL WASHER 15,2X19X0,2
    STEEL WASHER 15,2X19X0,2
  • 19
    54603090030 STEEL WASHER 15,2X19X0,3
    STEEL WASHER 15,2X19X0,3
  • 97
    77204080110 TRIANGLE LEVER REP. KIT REAR
    TRIANGLE LEVER REP. KIT REAR
  • 98
    77204080090 TRIANGLE LEVER REP. KIT FRONT
    TRIANGLE LEVER REP. KIT FRONT
  • 99
    79004083010 PULL ROD REP. KIT SX-F
    PULL ROD REP. KIT SX-F
