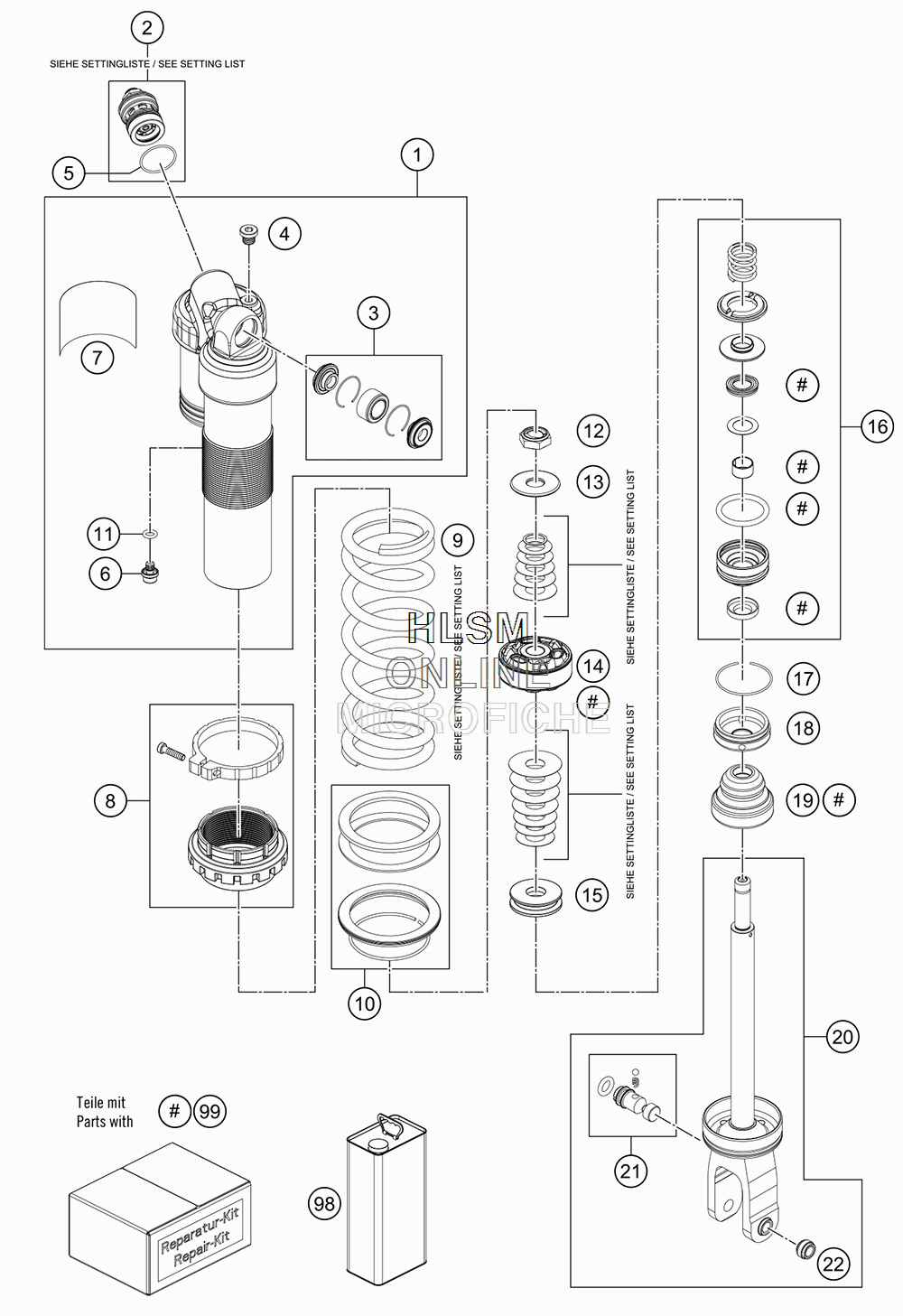

SHOCK ABSORBER DISASSEMBLED для Ktm 350 SX-F - 2019 года выпуска

  • №
    Артикул
    Название
  • 1
    50181144S1 MONOSHOCK UPPER PART CPL.
    MONOSHOCK UPPER PART CPL.
  • 2
    50181101S23 DCC CPL.
    DCC CPL.
  • 2
    50181101S29 SHOCK CPL.
    SHOCK CPL.
  • 2
    50181101S30 DCC LINK 2019 US KPL.
    DCC LINK 2019 US KPL.
  • 2
    50181101S33 STRUT KPL.
    STRUT KPL.
  • 3
    R12025 REP.KIT BEAR./SEAL KGW 1525 HD
    REP.KIT BEAR./SEAL KGW 1525 HD
  • 4
    50180095 BLEED PLUG R 1/8
    BLEED PLUG R 1/8
  • 5
    50180218 O-RING 25X1,5 VITON
    O-RING 25X1,5 VITON
  • 6
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 7
    52000146 STICKER WP W ARNING 92X53MM
    STICKER WP W ARNING 92X53MM
  • 8
    50180991S SPRING ADJUSTER PLASTIC CPL.
    SPRING ADJUSTER PLASTIC CPL.
  • 9
    91210128S SPRING 255 36 N/MM
    SPRING 255 36 N/MM
  • 9
    91210123S SPRING 260 39 N/MM
    SPRING 260 39 N/MM
  • 9
    91210124S SPRING 260 42 N/MM
    SPRING 260 42 N/MM
  • 9
    91210100S SPRING 260 45 N/MM
    SPRING 260 45 N/MM
  • 9
    91210101S SPRING 260 48 N/MM
    SPRING 260 48 N/MM
  • 10
    50180824S SPRING PLATE SET
    SPRING PLATE SET
  • 11
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 12
    50181207 LOCKING NUT M12X1 H9 SW19
    LOCKING NUT M12X1 H9 SW19
  • 13
    50181092 REBOUND DISC 12X34 T2 H0
    REBOUND DISC 12X34 T2 H0
  • 14
    50181255S KOLBEN IШ12 AШ50 KPL. MY18
    KOLBEN IШ12 AШ50 KPL. MY18
  • 15
    50181091 REBOUND DISC 12X43 H8
    REBOUND DISC 12X43 H8
  • 16
    50180603SA ADAPTER D50 H28 CPL.
    ADAPTER D50 H28 CPL.
  • 17
    50180126 CIRCLIP 53X1,75
    CIRCLIP 53X1,75
  • 18
    50180626 RESERVOIR CAP D=50 H=10
    RESERVOIR CAP D=50 H=10
  • 19
    50181100 BUMP RUBBER 57X18 H46
    BUMP RUBBER 57X18 H46
  • 20
    50181148S1 MONOSHOCK BOTTOM P AR T CPL.
    MONOSHOCK BOTTOM P AR T CPL.
  • 21
    50181094S ADJUSTING SCREW M8X0,5 CPL.
    ADJUSTING SCREW M8X0,5 CPL.
  • 22
    46811205 ADAPTOR-BUSH M10X1,50, D=15
    ADAPTOR-BUSH M10X1,50, D=15
  • 98
    50180751S1 SHOCK ABSORBER FLUID 5 LT
    SHOCK ABSORBER FLUID 5 LT
  • 99
    RP10019 REVISIONSKIT 5018 LINK 2019
    REVISIONSKIT 5018 LINK 2019
