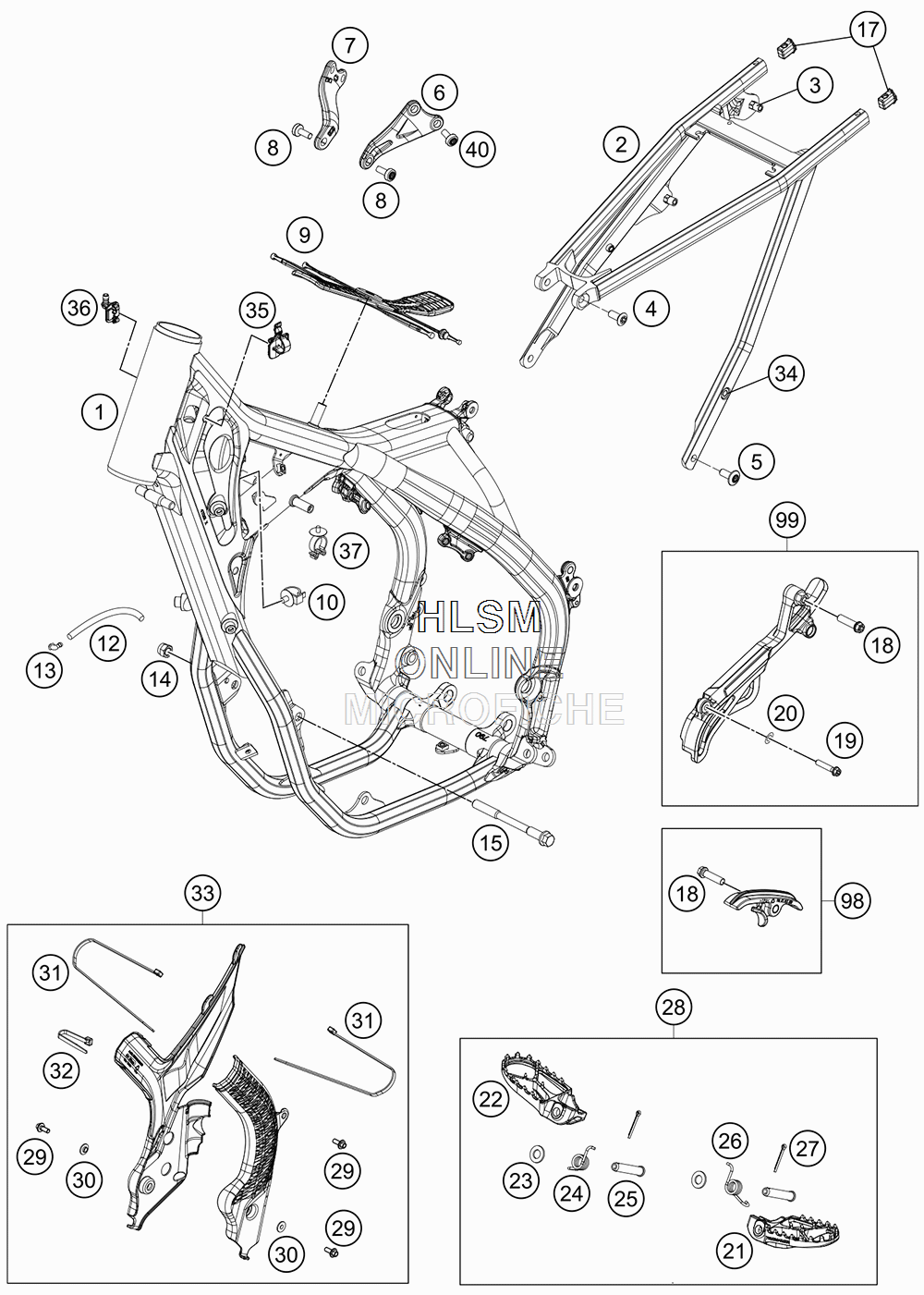

FRAME для Ktm 350 SX-F - 2019 года выпуска

  • №
    Артикул
    Название
  • 1
    7910300100033 FRAME 791S3 250/350 SX-F
    FRAME 791S3 250/350 SX-F
  • 1
    79103002000 SUBFRAME
    SUBFRAME
  • 3
    77303139000 BLIND RIVET NUT EM6-60LF/HX
    BLIND RIVET NUT EM6-60LF/HX
  • 4
    0019080206S FLAT HEAD SCREW M. ISA45 M8X20
    FLAT HEAD SCREW M. ISA45 M8X20
  • 5
    79003003000 SPECIAL SCREW M8X18 TORX45 SS
    SPECIAL SCREW M8X18 TORX45 SS
  • 6
    7910301300001S ENGINE BRACE, LEFT
    ENGINE BRACE, LEFT
  • 7
    7910301400001S ENGINE BRACE, RIGHT
    ENGINE BRACE, RIGHT
  • 8
    0035080206S AH-COLLAR SCREW M8X20 ISA45
    AH-COLLAR SCREW M8X20 ISA45
  • 9
    79607012000 TANK REST RUBBER
    TANK REST RUBBER
  • 10
    58111076000 CABLE SUPPORT KHS NR.150-47610
    CABLE SUPPORT KHS NR.150-47610
  • 12
    55007016001 PVC-HOSE 7X10 PER METER
    PVC-HOSE 7X10 PER METER
  • 13
    50303089000 ANGLE PIECE
    ANGLE PIECE
  • 14
    54310086100 SELF LOCKING NUT M10 CU WS=14
    SELF LOCKING NUT M10 CU WS=14
  • 15
    77203014000 ENGINE BRAC.SCR. M10X115
    ENGINE BRAC.SCR. M10X115
  • 17
    79103002010 REAR FRAME BIT
    REAR FRAME BIT
  • 18
    0025080306 HH COLLAR SCREW M8X30
    HH COLLAR SCREW M8X30
  • 19
    0025060406 HH COLLAR SCREW M6X40
    HH COLLAR SCREW M6X40
  • 20
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 21
    79003040000 FOOTREST L/S
    FOOTREST L/S
  • 22
    79003041000 FOOTREST R/S
    FOOTREST R/S
  • 23
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 24
    79003044000 FOOTREST SPRING R/S
    FOOTREST SPRING R/S
  • 25
    54803044000 PIN FOR FOOT PED 51.5X9.8 MM
    PIN FOR FOOT PED 51.5X9.8 MM
  • 26
    79003045000 FOOTREST SPRING L/S
    FOOTREST SPRING L/S
  • 27
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 28
    79003040033 FOOT PEGS SET CPL. 2016
    FOOT PEGS SET CPL. 2016
  • 29
    0014050123 HH COLLAR SCREW M 5X12
    HH COLLAR SCREW M 5X12
  • 30
    79103092050 BUSH Ш5,1/6,5/13X 3/1,8
    BUSH Ш5,1/6,5/13X 3/1,8
  • 31
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 32
    44011076140 CABLE TIE 140/2,5MM BLACK
    CABLE TIE 140/2,5MM BLACK
  • 33
    7910309400030 FRAME PROTECTION SET
    FRAME PROTECTION SET
  • 34
    79003002080 BLIND RIVET NUT M6 KNURLED
    BLIND RIVET NUT M6 KNURLED
  • 35
    79111093000 WIRE HOLDER LE 19
    WIRE HOLDER LE 19
  • 36
    79107013010 WIRE HOLDER / FUEL VENTILATION
    WIRE HOLDER / FUEL VENTILATION
  • 37
    61111041000 CABLE SUPPORT
    CABLE SUPPORT
  • 40
    0035080156S AH-COLLAR SCREW M8X15 TORX45
    AH-COLLAR SCREW M8X15 TORX45
  • 98
    79003053010 CHAIN SLIDING KIT BELOW CPL.16
    CHAIN SLIDING KIT BELOW CPL.16
  • 99
    79003096010 SPROCKET COVER KIT
    SPROCKET COVER KIT
