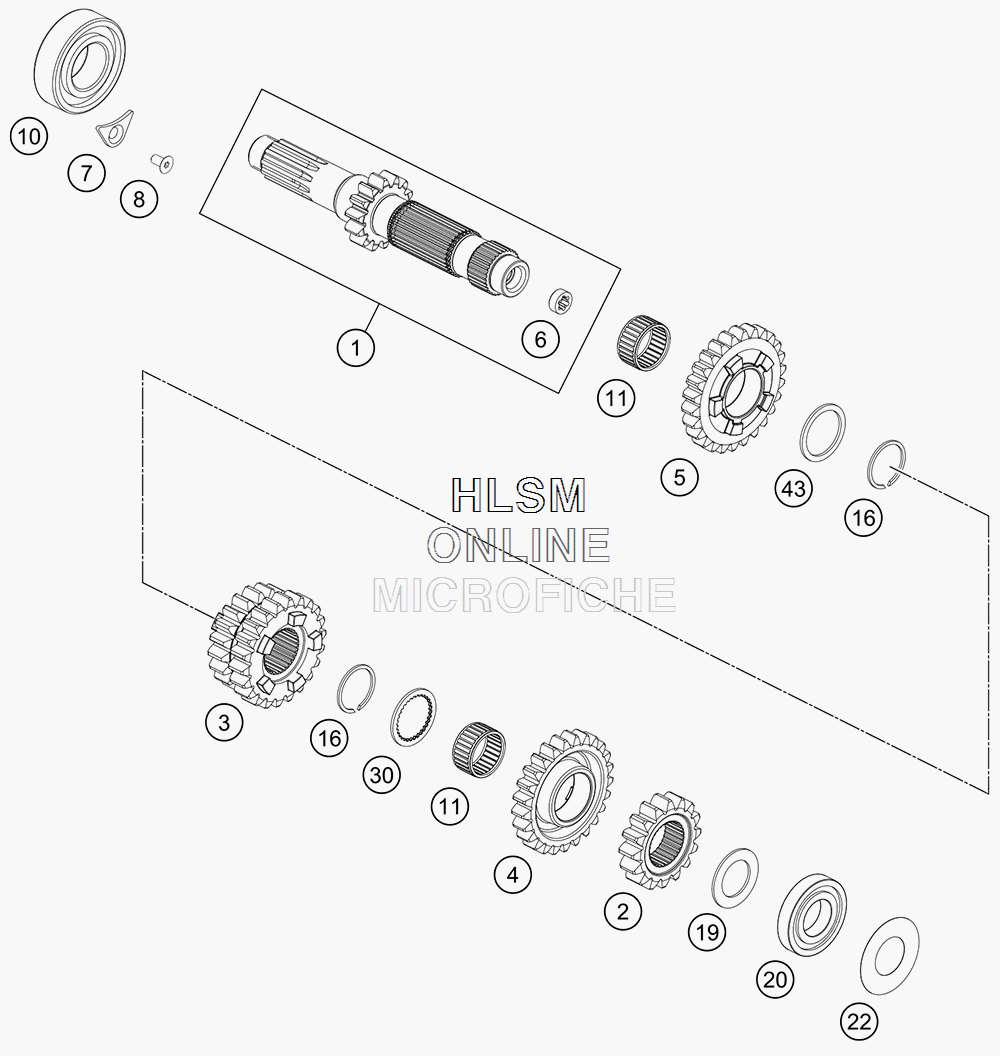

TRANSMISSION I - MAIN SHAFT для Ktm 350 EXC-F - 2019 года выпуска
-
№АртикулНазвание
-
177233101100 MAIN SHAFT CPL. 14TMAIN SHAFT CPL. 14T
-
254833202100 IDLER GEAR 2 ND. GEAR T=16IDLER GEAR 2 ND. GEAR T=16
-
379233103100 SLIDING GEAR 3RD/4TH., T=20/22SLIDING GEAR 3RD/4TH., T=20/22
-
454833205100 IDLER GEAR 5.G, Z=25IDLER GEAR 5.G, Z=25
-
554833206100 IDLER GEAR 6.G, Z=26IDLER GEAR 6.G, Z=26
-
678033001110 BUSHINGBUSHING
-
775030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
80019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
-
100625062056 GROOVE BALL BEARING 6205 C4 NTNGROOVE BALL BEARING 6205 C4 NTN
-
110405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
160417024000 CIRCLIP WS24CIRCLIP WS24
-
1977233015000 DISK 20,2X32X1,3DISK 20,2X32X1,3
-
200625160041 BALL BEARING TM 16004 C4BALL BEARING TM 16004 C4
-
2277233088000 SPACER SHIM 21X42X0.2SPACER SHIM 21X42X0.2
-
3054833043000 STOP DISC 25X0,8X30X30X7HSTOP DISC 25X0,8X30X30X7H
-
4354833044000 STOP DISC 25X31X1,5STOP DISC 25X31X1,5
