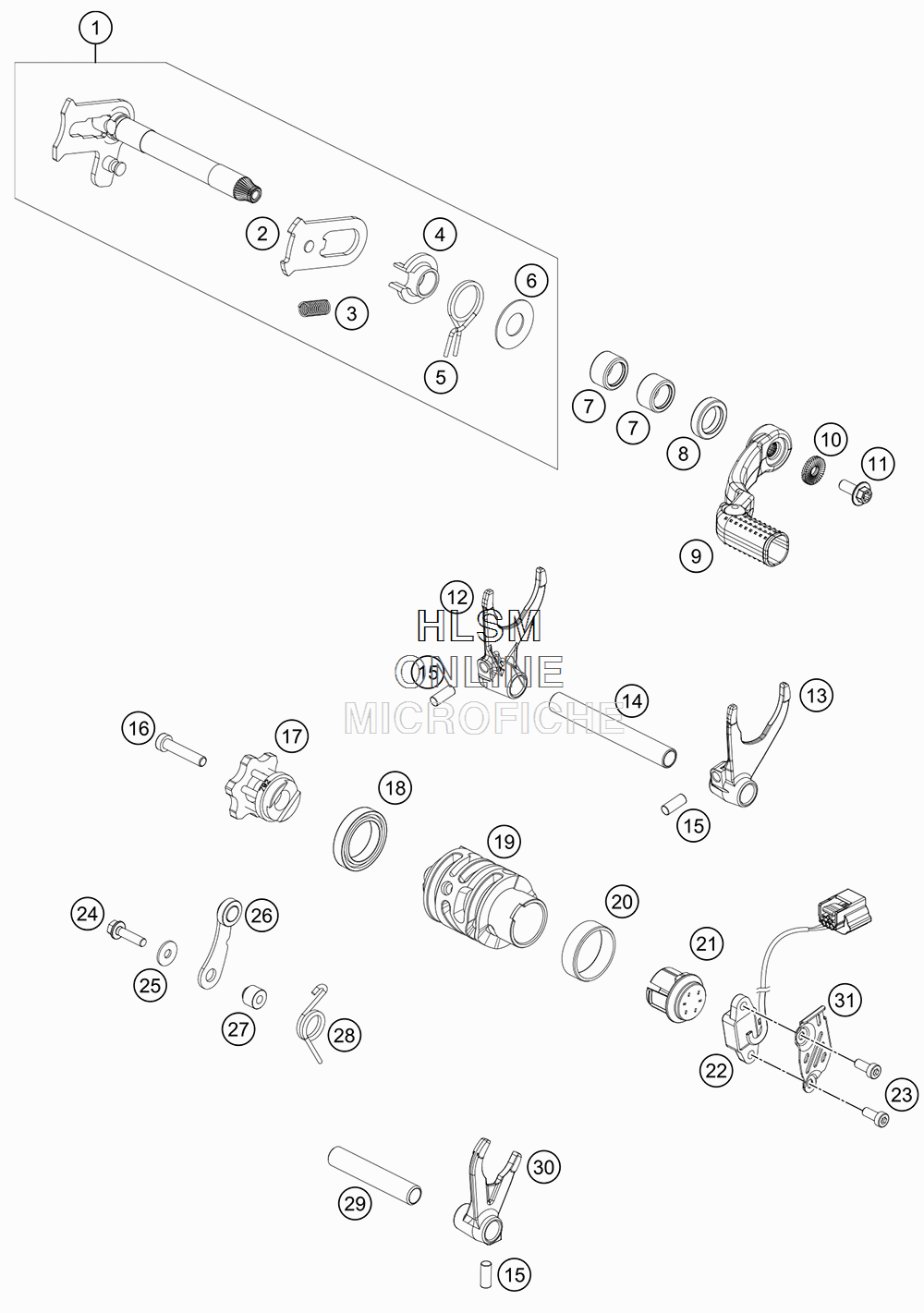

SHIFTING MECHANISM для Ktm 350 EXC-F - 2019 года выпуска

  • №
    Артикул
    Название
  • 1
    79234005133 SHIFT SHAFT CPL.
    SHIFT SHAFT CPL.
  • 2
    79234008144 SLIDING PLATE CPL.
    SLIDING PLATE CPL.
  • 3
    56534013100 TENSIONING SPRING 0,8MM
    TENSIONING SPRING 0,8MM
  • 4
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 5
    54834014000 RETURN SPRING
    RETURN SPRING
  • 6
    54634050000 STOP DISK 14X30X1
    STOP DISK 14X30X1
  • 7
    54632095000 NEEDLE BEAR.HK 1412 14X20X12
    NEEDLE BEAR.HK 1412 14X20X12
  • 8
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 9
    79234031100 SHIFT LEVER CPL.
    SHIFT LEVER CPL.
  • 10
    50233041500 PAIR NORDLOCK WASHER M6
    PAIR NORDLOCK WASHER M6
  • 11
    0024060156S HH COLLAR SCREW M6X15 TORX30
    HH COLLAR SCREW M6X15 TORX30
  • 12
    79234203000 SHIFT FORK 1ST -3RD GEAR
    SHIFT FORK 1ST -3RD GEAR
  • 13
    79234202000 SHFIT FORK 2ND-4TH GEAR
    SHFIT FORK 2ND-4TH GEAR
  • 14
    77034019000 SHIFTING MAIN L=93MM
    SHIFTING MAIN L=93MM
  • 15
    0402061480 NEEDLE ROLLER DIN5402 6X14,8
    NEEDLE ROLLER DIN5402 6X14,8
  • 16
    0984060302 AH SCREW DIN6912 M 6X30
    AH SCREW DIN6912 M 6X30
  • 17
    79234015100 SHIFT STAR CMPL
    SHIFT STAR CMPL
  • 18
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 19
    79234112000 SHIFT ROLLER
    SHIFT ROLLER
  • 20
    79234012010 FRICTION BEARING CONTROLLER
    FRICTION BEARING CONTROLLER
  • 21
    79234012020 MAGNET HOLDER CPL.
    MAGNET HOLDER CPL.
  • 22
    79211023000 GEAR SENSOR
    GEAR SENSOR
  • 23
    0984050143S CYL. SCREW DIN6912 M5X14 8.8
    CYL. SCREW DIN6912 M5X14 8.8
  • 24
    0025050206 HH COLLAR SCREW M5X20
    HH COLLAR SCREW M5X20
  • 25
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 26
    79234024044 LOCKING LEVER CPL.
    LOCKING LEVER CPL.
  • 27
    54634052300 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 28
    54834023000 LOCKING LEVER SPRING
    LOCKING LEVER SPRING
  • 29
    54834019000 SHIFT. RAIL MAIN SHAFT 250/300
    SHIFT. RAIL MAIN SHAFT 250/300
  • 30
    79234201000 SHIFT FORK 5TH-6TH GEAR
    SHIFT FORK 5TH-6TH GEAR
  • 31
    79211024000 GUARD PLATE MOTION SENSOR
    GUARD PLATE MOTION SENSOR
