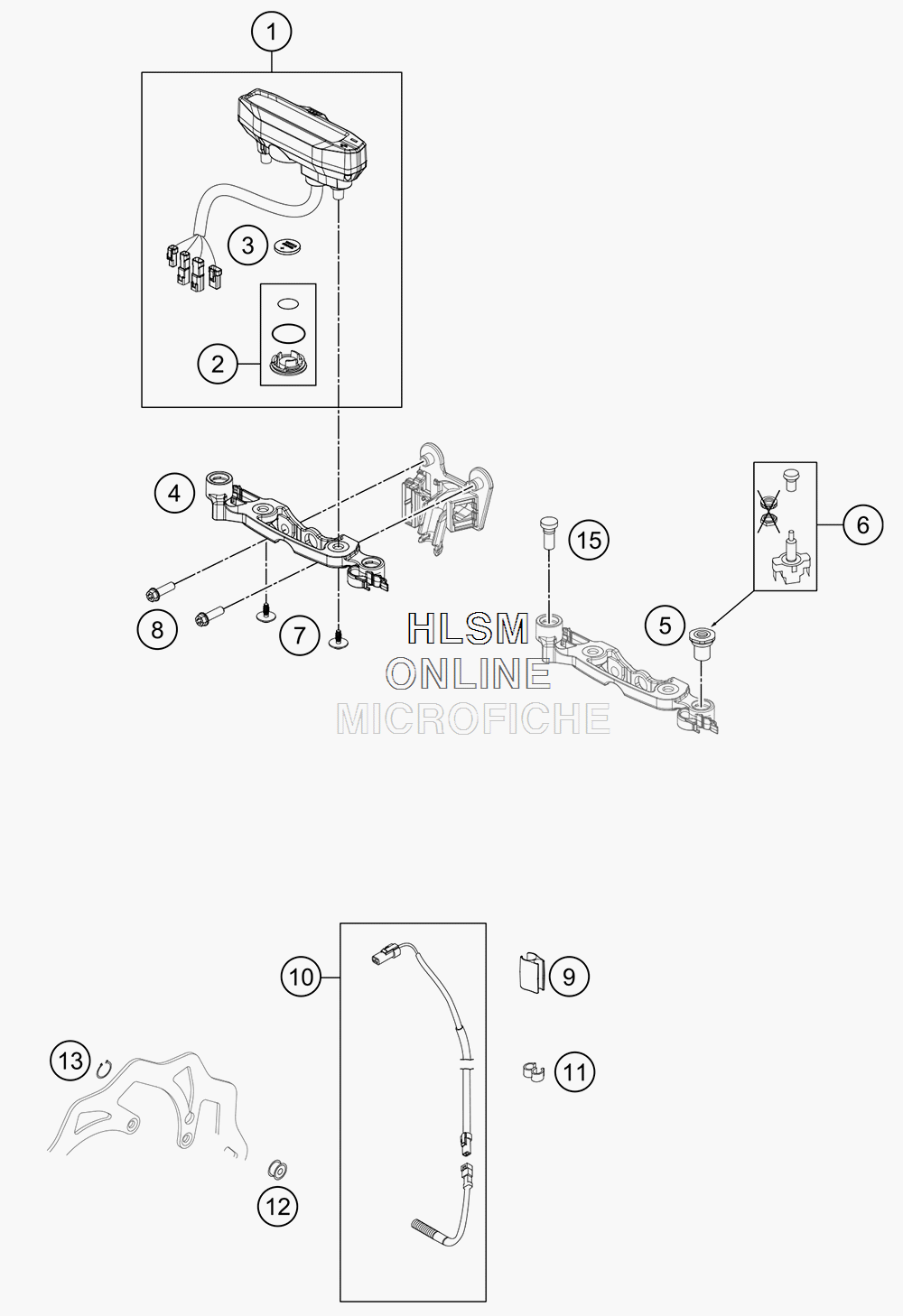

INSTRUMENTS/LOCK SYSTEM для Ktm 300 XCW TPI - 2019 года выпуска`
-
№АртикулНазвание
-
177714069400 TACHO DIGITAL KM/H F. 21"TACHO DIGITAL KM/H F. 21"
-
277714069010 BATTERY COVER F. SPEEDOMETERBATTERY COVER F. SPEEDOMETER
-
358314068000 BATTERY F. SPEEDOM. M.A.E. 02BATTERY F. SPEEDOM. M.A.E. 02
-
455614060000 SPEED INDICATOR MOUNTSPEED INDICATOR MOUNT
-
554814060050 SPEC. NUT F. PULL SWITCH WS=17SPEC. NUT F. PULL SWITCH WS=17
-
655011599000 PULL SWITCH LOOSEPULL SWITCH LOOSE
-
70081645121 EJOT DELTA PT SCREW 45X12-ZEJOT DELTA PT SCREW 45X12-Z
-
80024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
954813026000 CABLE SUPPORT 10/6MMCABLE SUPPORT 10/6MM
-
1054814068100 CABLE FOR DIGITAL SPEEDOM. 06CABLE FOR DIGITAL SPEEDOM. 06
-
1160111094000 CLIP 5/7 MMCLIP 5/7 MM
-
1254814069050 MAGNET FOR DIGITAL SPEEDOM. 03MAGNET FOR DIGITAL SPEEDOM. 03
-
130471009104 CIRCLIP DIN0471- 9X1CIRCLIP DIN0471- 9X1
-
1555638063000 OIL INDICATOROIL INDICATOR
