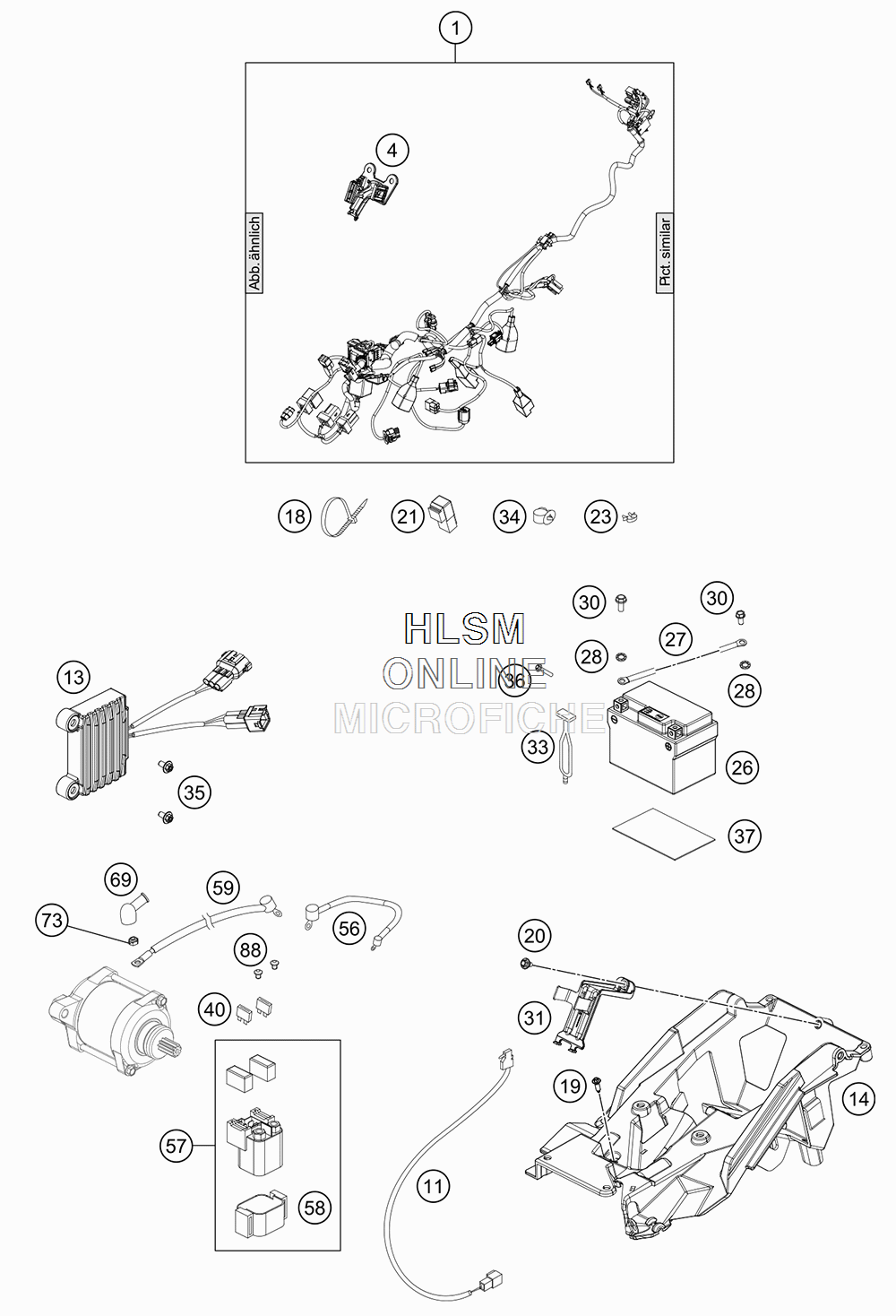

WIRING HARNESS для Ktm 300 XCW TPI - 2019 года выпуска

  • №
    Артикул
    Название
  • 1
    55611175033 MAIN HARNE 250/300 XC-W CPL 17
    MAIN HARNE 250/300 XC-W CPL 17
  • 4
    77711083000 SUPPORT BRACKET
    SUPPORT BRACKET
  • 11
    77711050000 BREAK LIGHT SWITCH FRONT
    BREAK LIGHT SWITCH FRONT
  • 13
    79611034000 VOL T AGE REGULA TOR
    VOL T AGE REGULA TOR
  • 14
    55411055000 BATTERY BOX
    BATTERY BOX
  • 18
    44011076140 CABLE TIE 140/2,5MM BLACK
    CABLE TIE 140/2,5MM BLACK
  • 18
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 18
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 19
    0017060206 SCREW F. PLASTIC K60X20AL SW6
    SCREW F. PLASTIC K60X20AL SW6
  • 20
    59001092050 SPECIAL SCREW M6X12,5
    SPECIAL SCREW M6X12,5
  • 21
    61111057000 RELAY CM1A-R-12V-H80
    RELAY CM1A-R-12V-H80
  • 23
    57013072000 WIRING HOLDER 12MM
    WIRING HOLDER 12MM
  • 23
    57013072100 WIRING HOLDER 16MM
    WIRING HOLDER 16MM
  • 26
    79111053000 BATTERY 12V/24WH
    BATTERY 12V/24WH
  • 27
    58411097100 GROUND CABLE D=6MM L=140MM
    GROUND CABLE D=6MM L=140MM
  • 28
    58411098100 CONTACT WASHER M6 VSV-K6
    CONTACT WASHER M6 VSV-K6
  • 30
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
  • 31
    79011056100 BATTERY BOX SUPPORT
    BATTERY BOX SUPPORT
  • 33
    50303018000 RUBBER L=145MM
    RUBBER L=145MM
  • 34
    58111076000 CABLE SUPPORT KHS NR.150-47610
    CABLE SUPPORT KHS NR.150-47610
  • 35
    0024060156 HH COLLAR SCREW M6X15
    HH COLLAR SCREW M6X15
  • 36
    0017060205 SCREW FOR PLASTIC K60X20
    SCREW FOR PLASTIC K60X20
  • 37
    59003001099 METAMOLL 90X45X3MM
    METAMOLL 90X45X3MM
  • 40
    58011109120 FUSE 20 A
    FUSE 20 A
  • 56
    58711086000 WIRING HARNESS BATTERY DUKE'99
    WIRING HARNESS BATTERY DUKE'99
  • 57
    58211058050 BRACKET RUBBER F .ST AR TRELA Y 07
    BRACKET RUBBER F .ST AR TRELA Y 07
  • 58
    58211058000 STARTER RELAY 12V
    STARTER RELAY 12V
  • 59
    55111059000 STARTERCABLE 1100MM
    STARTERCABLE 1100MM
  • 69
    77240099000 PROTECTION CAP F. STARTER ENG.
    PROTECTION CAP F. STARTER ENG.
  • 73
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 88
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
