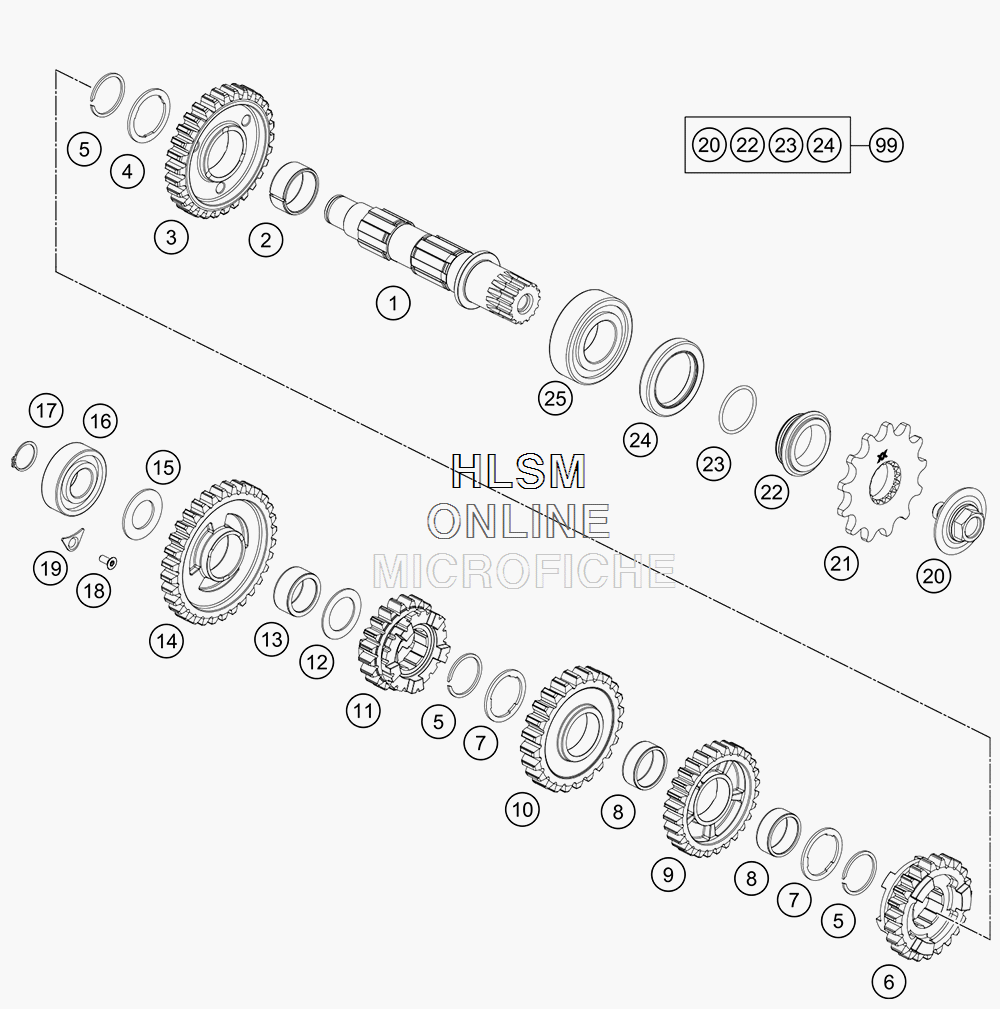

TRANSMISSION II - COUNTERSHAFT для Ktm 250 EXC F - 2019 года выпуска`
-
№АртикулНазвание
-
179143311000 COUNTERSHAFTCOUNTERSHAFT
-
20405242812 NEDDLE BEAR. K24X28X11,9 DIV.NEDDLE BEAR. K24X28X11,9 DIV.
-
379133112000 IDLER GEAR , 2ND GEAR , TEETH=30IDLER GEAR , 2ND GEAR , TEETH=30
-
477733044000 STOP DISC 24X32X1,5STOP DISC 24X32X1,5
-
50417024000 CIRCLIP WS24CIRCLIP WS24
-
679133115000 SLIDING GEAR , 5TH GEAR , TEETH=23SLIDING GEAR , 5TH GEAR , TEETH=23
-
777733043000 STOP DISC 23,4X31X1,5STOP DISC 23,4X31X1,5
-
80405222611 NEEDLE BEAR.K 22X26X10 DIVIDEDNEEDLE BEAR.K 22X26X10 DIVIDED
-
979133114000 IDLER GEAR , 4TH GEAR , TEETH=28IDLER GEAR , 4TH GEAR , TEETH=28
-
1079133113000 IDLER GEAR , 3RD GEAR , TEETH=24IDLER GEAR , 3RD GEAR , TEETH=24
-
1179133116000 SLIDING GEAR , 6TH GEAR , TEETH=20SLIDING GEAR , 6TH GEAR , TEETH=20
-
1254833080000 STOP DISC 20,2X30X1STOP DISC 20,2X30X1
-
130405202612 NEEDLE BEARING K 20X26X12NEEDLE BEARING K 20X26X12
-
1479133111000 IDLER GEAR , 1ST GEAR , TEETH=32IDLER GEAR , 1ST GEAR , TEETH=32
-
1577233020000 STOP DISK 17,2X30X1,3STOP DISK 17,2X30X1,3
-
160625062035 BALL BEARING 6203 JR2 C3BALL BEARING 6203 JR2 C3
-
170471170015 CIRCLIP DIN 0471-17X1, 5CIRCLIP DIN 0471-17X1, 5
-
180019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
-
1975030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
2059033034044 SCREW 10.9+SPRING WASHERSCREW 10.9+SPRING WASHER
-
2179233029013 SPROCKET 13TSPROCKET 13T
-
2179233129014 ENGINE SPROCKET 14ZENGINE SPROCKET 14Z
-
2278133014000 SPACER SLEEVE COUNTERSPACER SLEEVE COUNTER
-
230770020220 O-RING 25,12X1,78 NBR70O-RING 25,12X1,78 NBR70
-
240760324571 SHAFT SEAL RING 32X45X7 BSLNBRSHAFT SEAL RING 32X45X7 BSLNBR
-
2549030023000 CYL.ROLL BEARING NJ205CYL.ROLL BEARING NJ205
-
9900050000941 COUNTER SHAFT REP.KIT 4 STROKECOUNTER SHAFT REP.KIT 4 STROKE
