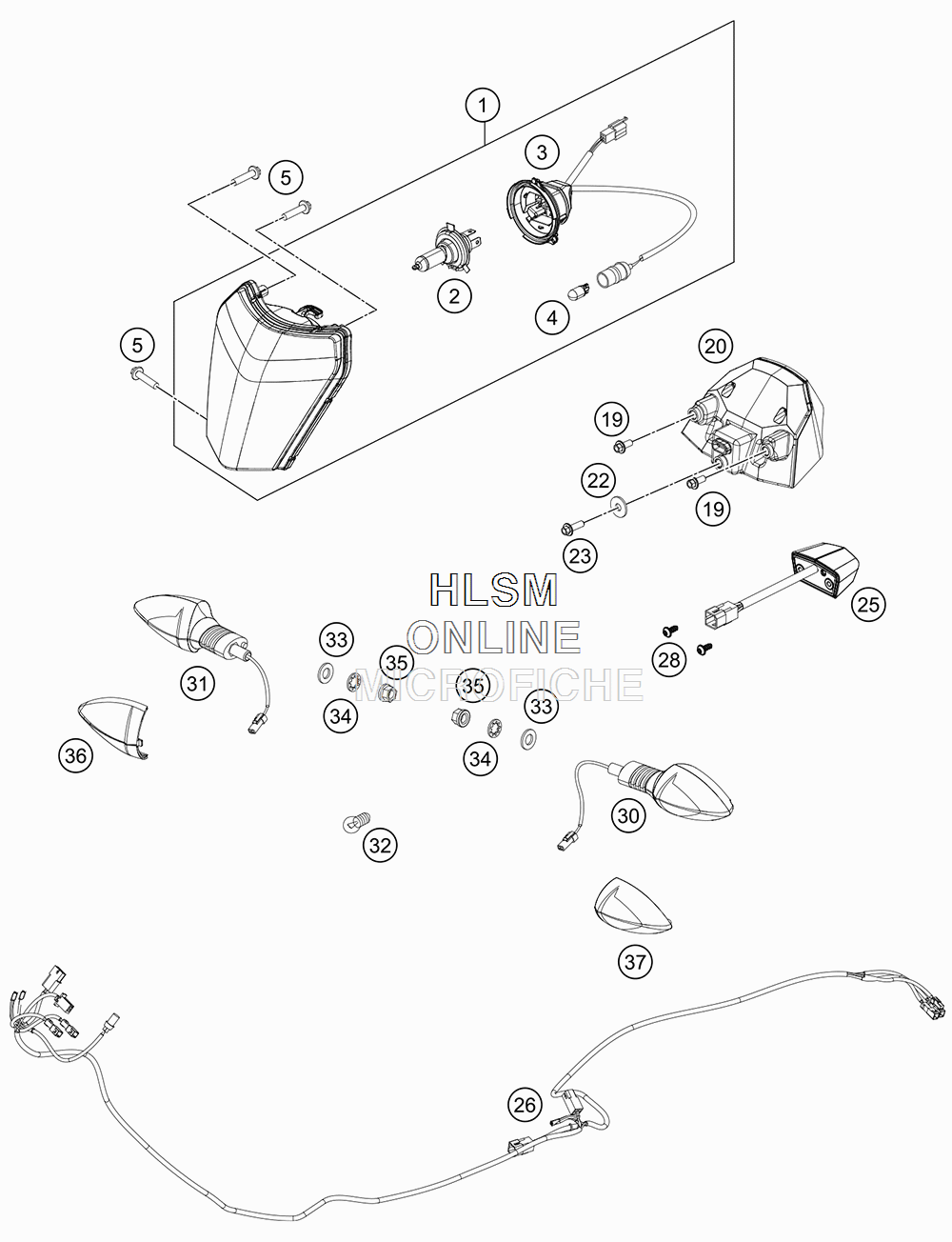

LIGHTING SYSTEM для Ktm 250 EXC F - 2019 года выпуска

  • №
    Артикул
    Название
  • 1
    78114001000 HEAD LIGHT CPL.
    HEAD LIGHT CPL.
  • 2
    54611038012 BULB HS1 12V 35/35W WHITE
    BULB HS1 12V 35/35W WHITE
  • 3
    78114001050 LAMP BRACKET CPL.
    LAMP BRACKET CPL.
  • 4
    49011435100 BULB 12V 5W (W2,1X9,5D) PHIL.
    BULB 12V 5W (W2,1X9,5D) PHIL.
  • 5
    0081050181 SCREW FOR PLASTIC K50X18 T20
    SCREW FOR PLASTIC K50X18 T20
  • 19
    0014050123 HH COLLAR SCREW M 5X12
    HH COLLAR SCREW M 5X12
  • 20
    78114140000 REAR LIGHT USA
    REAR LIGHT USA
  • 22
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 23
    0014050163 HH COLLAR SCREW M 5X16
    HH COLLAR SCREW M 5X16
  • 25
    60314047000 NUMBER PLATE LIGHT
    NUMBER PLATE LIGHT
  • 26
    77711081100 TURN SIGNAL WIRING HARNESS
    TURN SIGNAL WIRING HARNESS
  • 28
    0081050121 SCREW FOR PLASTIC K50X12
    SCREW FOR PLASTIC K50X12
  • 30
    78114025000 FLASHER CPL.FRONT L/S REAR R/S
    FLASHER CPL.FRONT L/S REAR R/S
  • 31
    78114026000 FLASHER CPL.FRONT R/S REAR L/S
    FLASHER CPL.FRONT R/S REAR L/S
  • 32
    44111015100 BULB 12V 10W
    BULB 12V 10W
  • 33
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 34
    0797100003 LOCK WASHER DIN6797-J10,5 ZI
    LOCK WASHER DIN6797-J10,5 ZI
  • 35
    58414030000 HH COLLAR NUT M10X1,25
    HH COLLAR NUT M10X1,25
  • 36
    78114028000 FLASHER LENS L/S R/S TRANSP.
    FLASHER LENS L/S R/S TRANSP.
  • 37
    78114027000 FLASHER LENS FRO.L/S-REAR R/S
    FLASHER LENS FRO.L/S-REAR R/S
