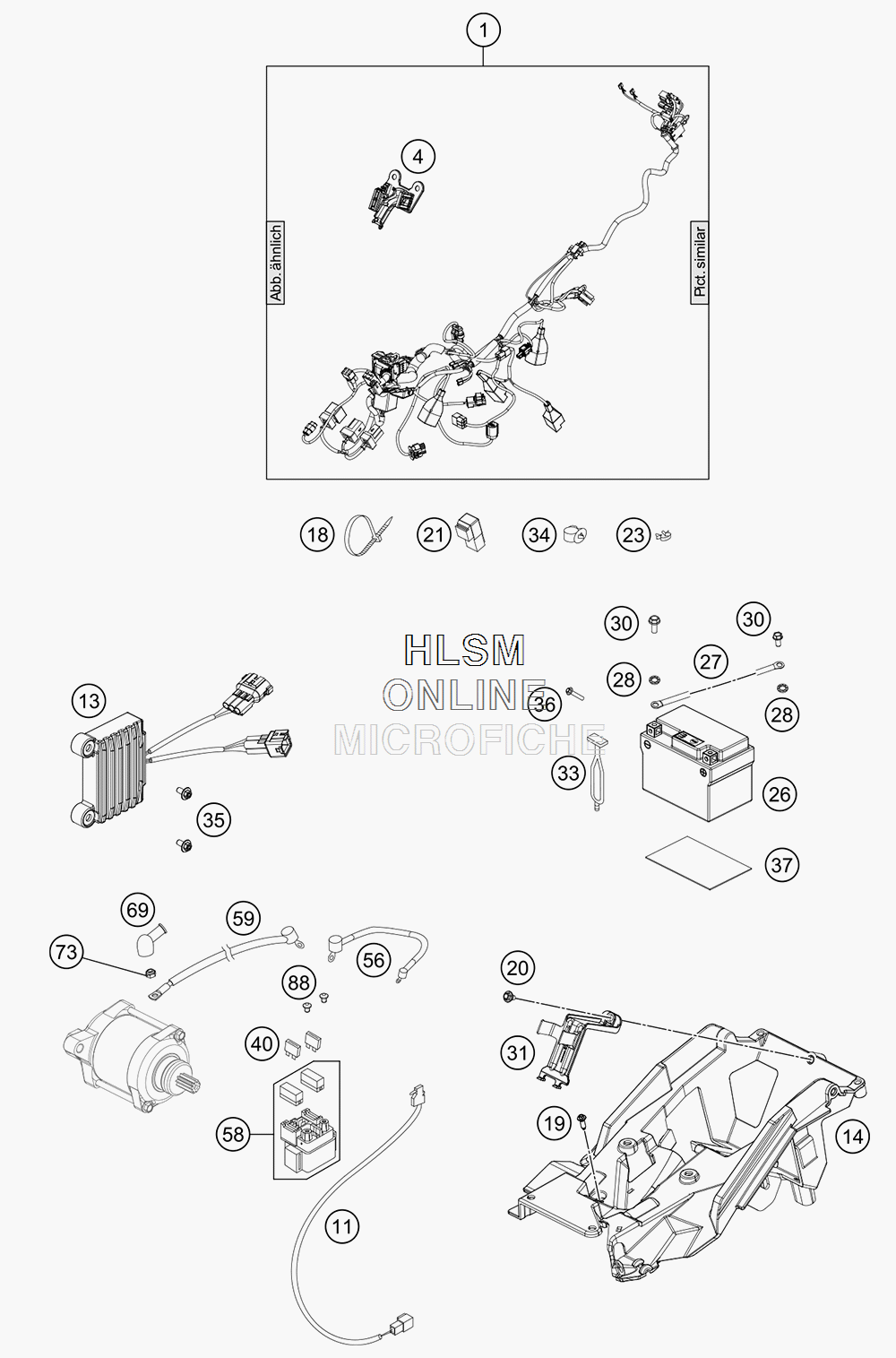

WIRING HARNESS для Ktm 250 XCWTPI - 2018 года выпуска`
-
№АртикулНазвание
-
155611175033 MAIN HARNE 250/300 XC-W CPLMAIN HARNE 250/300 XC-W CPL
-
477711083000 SUPPORT BRACKETSUPPORT BRACKET
-
1177711050000 BREAK LIGHT SWITCH FRONTBREAK LIGHT SWITCH FRONT
-
1379611034000 VOL T AGE REGULA TORVOL T AGE REGULA TOR
-
1455411055000 BATTERY BOXBATTERY BOX
-
1844011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
1844011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
1844011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
190017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
2059001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
2161111057000 RELAY CM1A-R-12V-H80RELAY CM1A-R-12V-H80
-
2357013072000 WIRING HOLDER 12MMWIRING HOLDER 12MM
-
2357013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
2677311953000 LITHIUM ION BATTERY 5SLITHIUM ION BATTERY 5S
-
2758411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
2858411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
300025050126 HH COLLAR SCREW M5X12HH COLLAR SCREW M5X12
-
3179011056100 BATTERY BOX SUPPORTBATTERY BOX SUPPORT
-
3350303018000 RUBBER L=145MMRUBBER L=145MM
-
3458111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
350023060123 COLLAR SCREW M6X12COLLAR SCREW M6X12
-
360017060205 SCREW FOR PLASTIC K60X20SCREW FOR PLASTIC K60X20
-
3759003001099 METAMOLL 90X45X3MMMETAMOLL 90X45X3MM
-
4058011109120 FUSE 20 AFUSE 20 A
-
5658711086000 WIRING HARNESS BATTERY DUKEWIRING HARNESS BATTERY DUKE
-
5858211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
5955111059000 STARTERCABLE 1100MMSTARTERCABLE 1100MM
-
6977240099000 PROTECTION CAP F. STARTER ENG.PROTECTION CAP F. STARTER ENG.
-
730985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
880902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
