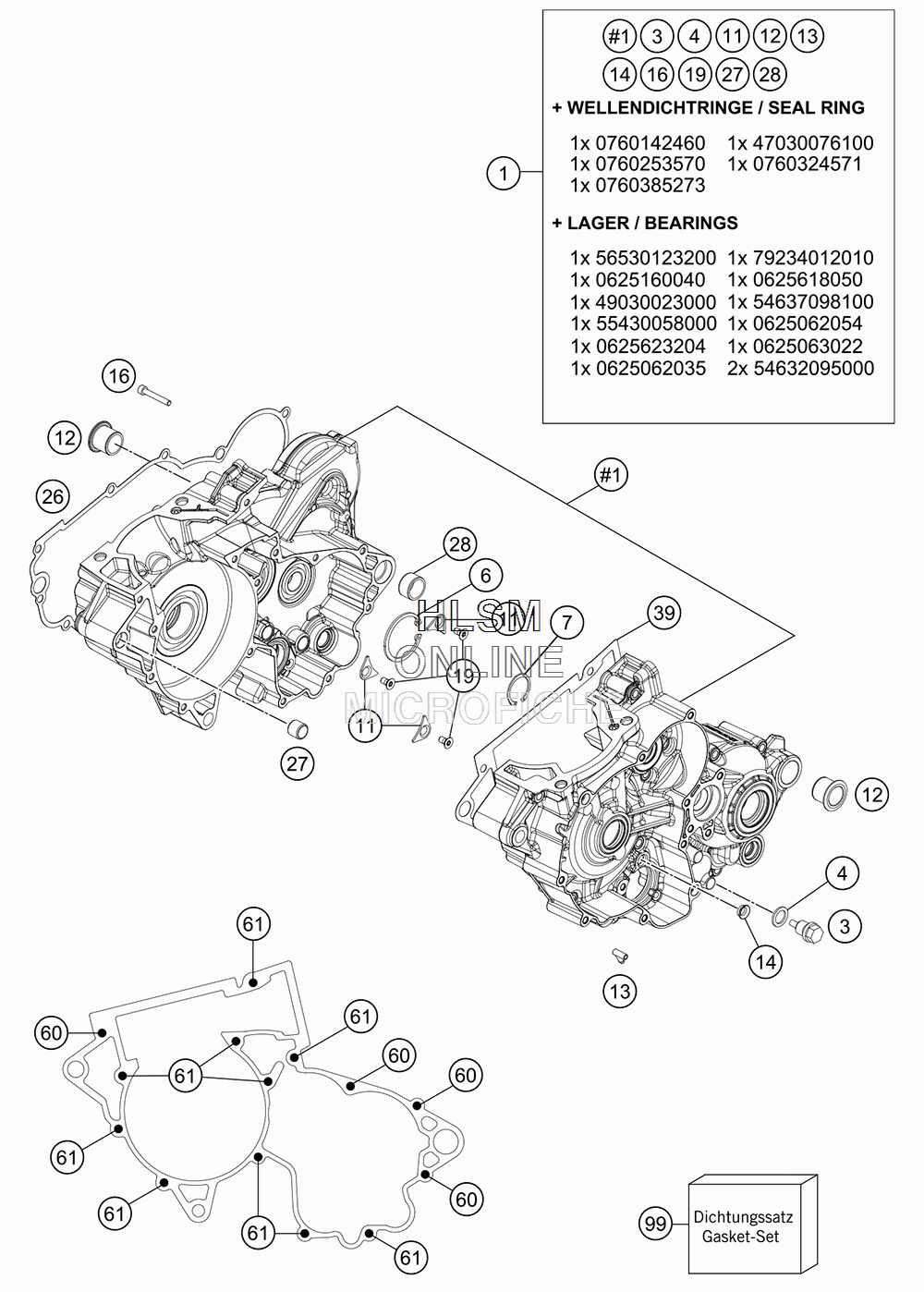

ENGINE CASE для Ktm 250 XCWTPI - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    55430200133 ENIGNE CASE CPL.
    ENIGNE CASE CPL.
  • 3
    58030021000 OILDRAIN PLUG W.MAG. M 12X1,5
    OILDRAIN PLUG W.MAG. M 12X1,5
  • 4
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 6
    0472042175 CIRCLIP DIN0472-42X1,75
    CIRCLIP DIN0472-42X1,75
  • 7
    55430059100 CIRCLIP DIN0472-28X1,2
    CIRCLIP DIN0472-28X1,2
  • 11
    75030085000 RETAINING PLATE F. CS BEARING
    RETAINING PLATE F. CS BEARING
  • 12
    75030010100 CASE BUSH
    CASE BUSH
  • 13
    45130022000 ANGLE PIECE 50CCM LC
    ANGLE PIECE 50CCM LC
  • 14
    55140030100 COLLAR BUSHING
    COLLAR BUSHING
  • 16
    0912060406 AH SCREW DIN0912 M 6X40
    AH SCREW DIN0912 M 6X40
  • 19
    0019050106S INT. TORX FLAT HEAD M5X10 10.9
    INT. TORX FLAT HEAD M5X10 10.9
  • 26
    55430025100 CLUTCH COVER GASKET INSIDE
    CLUTCH COVER GASKET INSIDE
  • 27
    54630027000 DOWEL BUSHING 13,8X11X12
    DOWEL BUSHING 13,8X11X12
  • 28
    54830027000 DOWEL 21X12
    DOWEL 21X12
  • 39
    55430039000 ENGINE CASE GASKET
    ENGINE CASE GASKET
  • 60
    0025060606 HH COLLAR SCREW M6X60
    HH COLLAR SCREW M6X60
  • 61
    0025060456 HH COLLAR SCREW M6X45
    HH COLLAR SCREW M6X45
  • 99
    55430199000 GASKET SET 250 EXC/SX
    GASKET SET 250 EXC/SX
