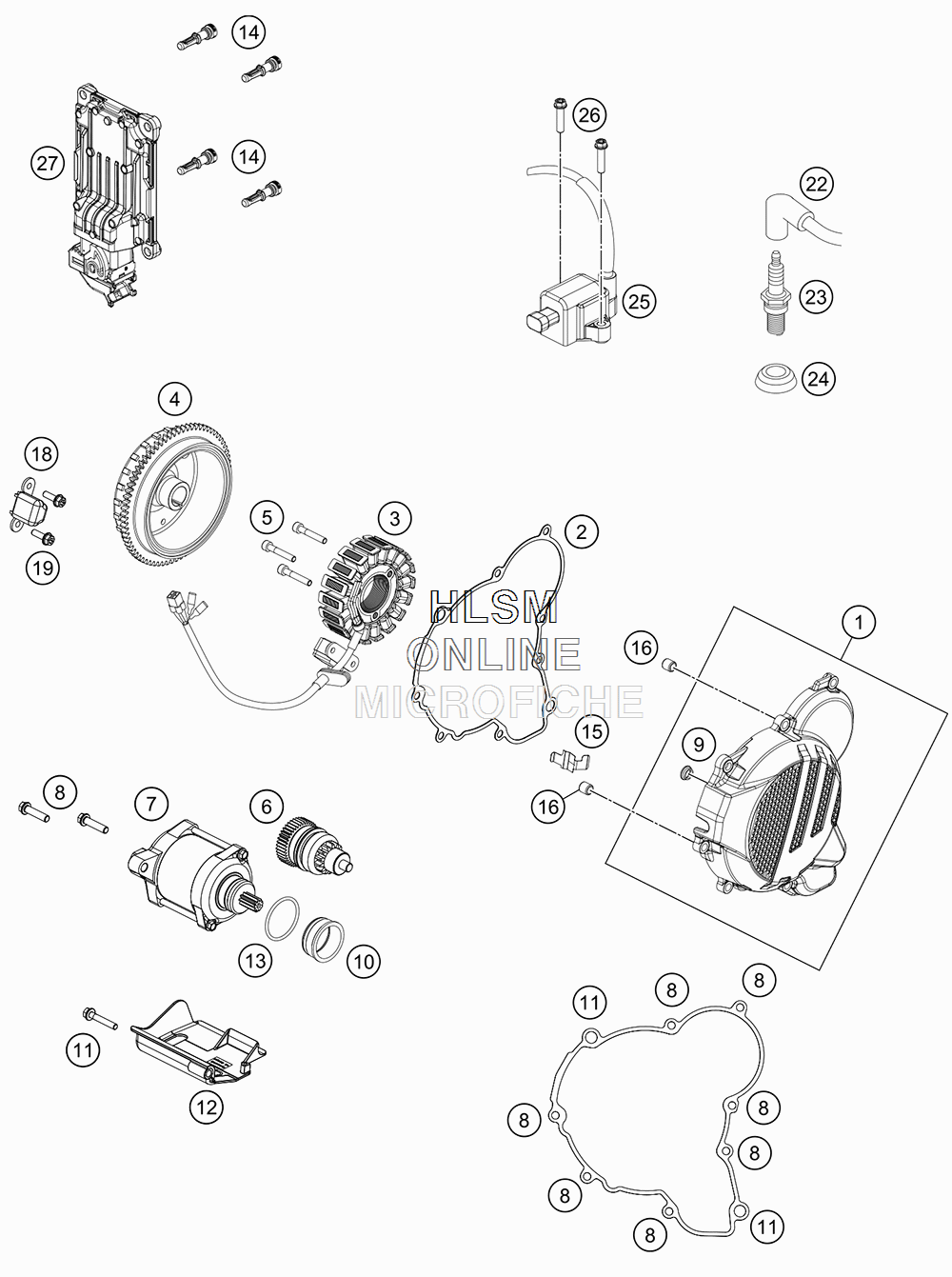

IGNITION SYSTEM для Ktm 250 XCWTPI - 2018 года выпуска`
-
№АртикулНазвание
-
15543010214415 IGNITION COVER CPL.IGNITION COVER CPL.
-
255430040000 IGNITION COVER GASKETIGNITION COVER GASKET
-
355439104000 STATORSTATOR
-
455439105000 ROTORROTOR
-
50912050303 AH SCREW DIN0912-M 5X30AH SCREW DIN0912-M 5X30
-
655440126000 BENDIXBENDIX
-
755440001000 STARTER ENGINESTARTER ENGINE
-
80025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
955140030100 COLLAR BUSHINGCOLLAR BUSHING
-
1055440012000 BEARING BUSHBEARING BUSH
-
110025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
1255440040044 PROTECTION CAP ST AR TER ENGINEPROTECTION CAP ST AR TER ENGINE
-
130770021260 O-RING 34,59X2,62O-RING 34,59X2,62
-
1455641030000 HOLDER CONTROL UNITHOLDER CONTROL UNIT
-
1555439140220 HOLDING PLATE GENERATOR CABLEHOLDING PLATE GENERATOR CABLE
-
1649030090100 DOWEL 9,8 X7X10DOWEL 9,8 X7X10
-
1859039034000 PULSER COIL KOKUSAN 4K3-A/BPULSER COIL KOKUSAN 4K3-A/B
-
190025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
2255639007000 IGNITION WIREIGNITION WIRE
-
2355439193000 SPARK PLUGSPARK PLUG
-
2450231012000 SEALING CUP FOR SPARK PLUGSEALING CUP FOR SPARK PLUG
-
2555639006000 IGINITION COILIGINITION COIL
-
260025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
2755641031000 CONTROL DEVICE EFICONTROL DEVICE EFI
