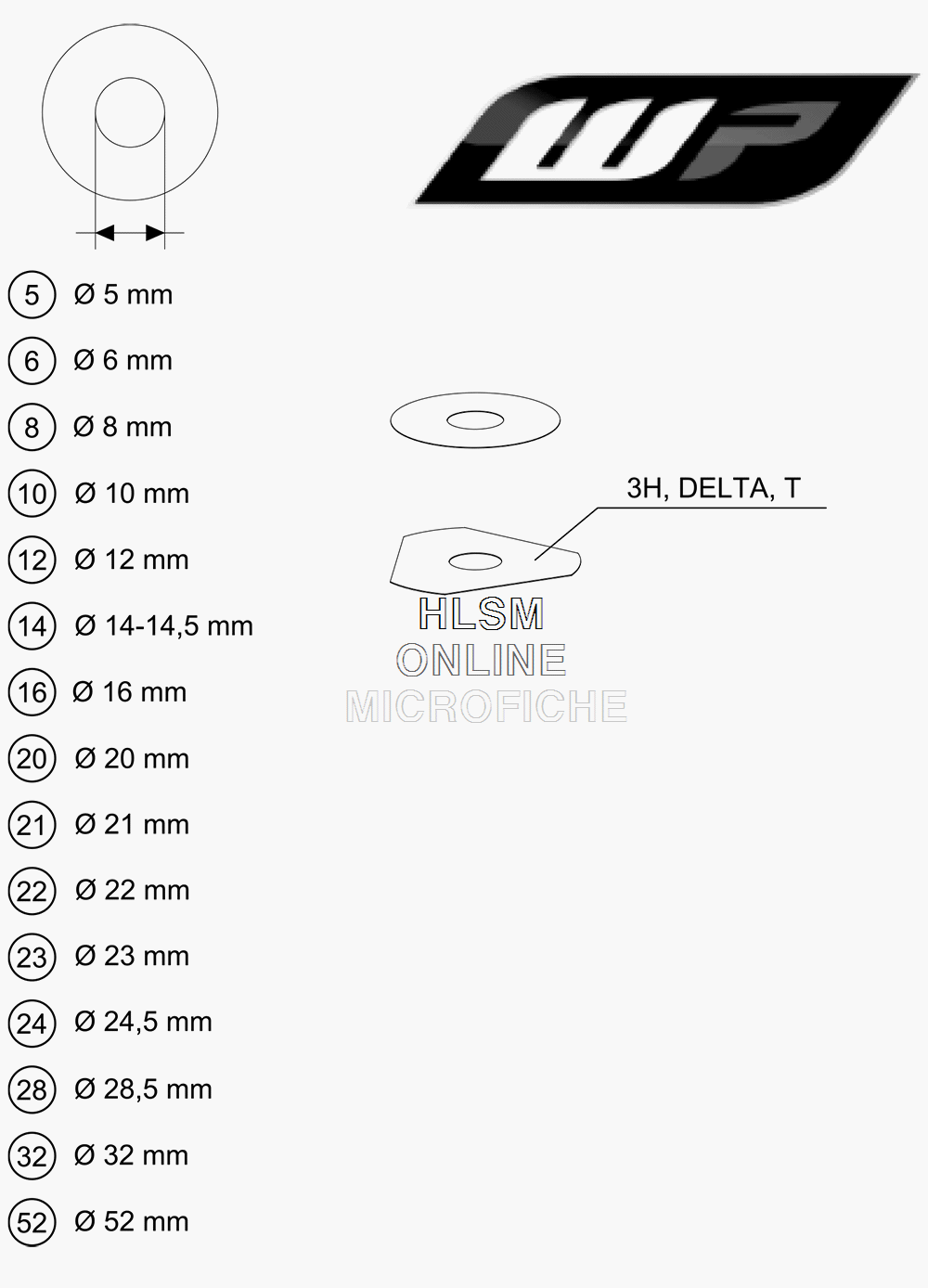

WP SHIMS FOR SETTING для Ktm 250 EXC TPI - 2018 года выпуска
-
№АртикулНазвание
-
544906890 WASHER 5X15X2WASHER 5X15X2
-
640540400 SHIM 6X12X0,1SHIM 6X12X0,1
-
640540401 SHIM 6X14X0,1SHIM 6X14X0,1
-
640540402 SHIM 6X16X0,1SHIM 6X16X0,1
-
640540403 SHIM 6X18X0,1SHIM 6X18X0,1
-
640540404 SHIM 6X12X0,15SHIM 6X12X0,15
-
640540405 SHIM 6X14X0,15SHIM 6X14X0,15
-
640540406 SHIM 6X16X0,15SHIM 6X16X0,15
-
640540407 SHIM 6X18X0,15SHIM 6X18X0,15
-
640540408 SHIM 6X12X0,2SHIM 6X12X0,2
-
640540409 SHIM 6X14X0,2SHIM 6X14X0,2
-
640540410 SHIM 6X16X0,2SHIM 6X16X0,2
-
640540411 SHIM 6X18X0,2SHIM 6X18X0,2
-
648600095 SHIM 6X20X0,20SHIM 6X20X0,20
-
640540412 SHIM 6X12X0,25SHIM 6X12X0,25
-
640540413 SHIM 6X14X0,25SHIM 6X14X0,25
-
640540414 SHIM 6X16X0,25SHIM 6X16X0,25
-
640540415 SHIM 6X18X0,25SHIM 6X18X0,25
-
640540417 SHIM 6X8,5X0,10SHIM 6X8,5X0,10
-
640540418 SHIM 6X9X0,10SHIM 6X9X0,10
-
640540419 SHIM 6X9,5X0,10SHIM 6X9,5X0,10
-
640540423 SHIM 6X9,5X0,15SHIM 6X9,5X0,15
-
640540425 SHIM 6X8,5X0,20SHIM 6X8,5X0,20
-
640540426 SHIM 6X9X0,20SHIM 6X9X0,20
-
640540427 SHIM 6X9,5X0,20SHIM 6X9,5X0,20
-
640540447 SHIM 6X10X0,3SHIM 6X10X0,3
-
640540449 SHIM 6X9X0,3SHIM 6X9X0,3
-
640540450 SHIM 6X9,5X0,3SHIM 6X9,5X0,3
-
640540494 SHIM 6X18X0,4SHIM 6X18X0,4
-
640540774 SHIM 6X18X0,1 DELTASHIM 6X18X0,1 DELTA
-
640541383 SHIM 6X11X0,1SHIM 6X11X0,1
-
640541391 SHIM 6X11X0,3SHIM 6X11X0,3
-
640541402 SHIM 6X11X0,2SHIM 6X11X0,2
-
640541403 SHIM 6X10X0,20SHIM 6X10X0,20
-
640541404 SHIM 6X10X0,1SHIM 6X10X0,1
-
640541405 SHIM 6X10X0,15SHIM 6X10X0,15
-
640541406 SHIM 6X11X0,15SHIM 6X11X0,15
-
640541408 SHIM 6X8,0X0,30SHIM 6X8,0X0,30
-
640541414 SHIM 6X8,0X0,10SHIM 6X8,0X0,10
-
640541416 SHIM 6X8X0,3SHIM 6X8X0,3
-
640541417 SHIM 6X11X0,25SHIM 6X11X0,25
-
648600102 SHIM 6X24X0,25SHIM 6X24X0,25
-
648600063 SHIM 6X24X0,1SHIM 6X24X0,1
-
648600064 SHIM 6X22X0,1SHIM 6X22X0,1
-
648600065 SHIM 6X20X0,1SHIM 6X20X0,1
-
648600069 SHIM 6X20X0,15SHIM 6X20X0,15
-
648600100 SHIM 6X24X0,15SHIM 6X24X0,15
-
648600116 SHIM 6X24X0,1 DELTASHIM 6X24X0,1 DELTA
-
648600139 SHIM 6X22X0,1 DELTASHIM 6X22X0,1 DELTA
-
648600217 BACKPLATE 6X10X0,25BACKPLATE 6X10X0,25
-
648600325 SHIM 6X13X0,1SHIM 6X13X0,1
-
648600327 SHIM 6X15X0,1SHIM 6X15X0,1
-
648600329 SHIM 6X17X0,1SHIM 6X17X0,1
-
648600331 SHIM 6X19X0,1SHIM 6X19X0,1
-
648600096 SHIM 6X20X0,25 (NLA)SHIM 6X20X0,25 (NLA)
-
648600097 SHIM 6X22X0,15SHIM 6X22X0,15
-
648600099 SHIM 6X22X0,25 (NLA)SHIM 6X22X0,25 (NLA)
-
640540448 BACKPLATE 6X8,5X0,30BACKPLATE 6X8,5X0,30
-
648600479 SHIM 6X20X0,1 T/3HSHIM 6X20X0,1 T/3H
-
648600332 SHIM 6X21X0,1SHIM 6X21X0,1
-
648600333 SHIM 6X23X0,1SHIM 6X23X0,1
-
640541393 SHIM 6X12X0,3SHIM 6X12X0,3
-
648600330 SHIM 6X17X0,15SHIM 6X17X0,15
-
648600988 SHIM 6X28X0,10SHIM 6X28X0,10
-
648600989 SHIM 6X26X0,10SHIM 6X26X0,10
-
648601091 SHIM 6X28X0,15SHIM 6X28X0,15
-
648601093 SHIM 6X26X0,15SHIM 6X26X0,15
-
648600328 SHIM 6X15X0,15SHIM 6X15X0,15
-
648600326 SHIM 6X13X0,15SHIM 6X13X0,15
-
648601548 SHIM 6X17X1,5SHIM 6X17X1,5
-
648601693 SHIM 6X18X3SHIM 6X18X3
-
648600098 SHIM 6X22X0,20SHIM 6X22X0,20
-
648601300 WASHER 6X25X1.5WASHER 6X25X1.5
-
648601692 SHIM 6X30X0,15SHIM 6X30X0,15
-
648601550 SHIM 6X30X0,10SHIM 6X30X0,10
-
640541392 SHIM 6X8X0,2SHIM 6X8X0,2
-
840540477 SHIM 8X18X0,4SHIM 8X18X0,4
-
843570120 SHIM 8X18X0,10SHIM 8X18X0,10
-
844916098 WASHER 8,4X16X0,8WASHER 8,4X16X0,8
-
844916130 WASHER 8,2X15X1WASHER 8,2X15X1
-
844916180 WASHER 8,2X11X1WASHER 8,2X11X1
-
848600214 SHIM 8X16X0,1SHIM 8X16X0,1
-
848600385 SHIM 8X14X0.25SHIM 8X14X0.25
-
848600346 SHIM 8X11X0,2SHIM 8X11X0,2
-
848600215 CHECK VALVE 8X20X0,1CHECK VALVE 8X20X0,1
-
848600485 SHIM 8X10X0,10SHIM 8X10X0,10
-
848601402 SHIM 8X13X0,10SHIM 8X13X0,10
-
848600350 CHECK VALVE 8X16X0,15CHECK VALVE 8X16X0,15
-
848600061 CHECK VALVE 8X24X0,4CHECK VALVE 8X24X0,4
-
848600062 CHECK VALVE 8X24X0,1CHECK VALVE 8X24X0,1
-
848600216 CHECK VALVE 8X22X0,1CHECK VALVE 8X22X0,1
-
848600480 SHIM 8X10X0,20SHIM 8X10X0,20
-
848600555 SHIM 8X16X0,20SHIM 8X16X0,20
-
848600213 SHIM 8X14X0,10SHIM 8X14X0,10
-
848600357 CHECK VALVE 8X11X0,1CHECK VALVE 8X11X0,1
-
848600351 CHECK VALVE 8X12X0,1CHECK VALVE 8X12X0,1
-
848600607 STEERING DAMPER WASHERSTEERING DAMPER WASHER
-
848601095 SHIM 8X17X0,10SHIM 8X17X0,10
-
848600352 CHECK VALVE 8X11X0,4CHECK VALVE 8X11X0,4
-
848601860 WASHER 8X11X0,15WASHER 8X11X0,15
-
1036120284 SHIM 10X16X0,10SHIM 10X16X0,10
-
1036120298 SHIM 10X16X0,2SHIM 10X16X0,2
-
1036120312 SHIM 10X16X0,30SHIM 10X16X0,30
-
1036120314 SHIM 10X18X0,30SHIM 10X18X0,30
-
1036120325 SHIM 10X19X0,15SHIM 10X19X0,15
-
1036120327 SHIM 10X23X0,15SHIM 10X23X0,15
-
1036120328 SHIM 10X25X0,15SHIM 10X25X0,15
-
1036120329 SHIM 10X27X0,15SHIM 10X27X0,15
-
1036120330 SHIM 10X29X0,15SHIM 10X29X0,15
-
1036120331 SHIM 10X31X0,15SHIM 10X31X0,15
-
1036120332 SHIM 10X33X0,15SHIM 10X33X0,15
-
1036120334 SHIM 10X21X0,20SHIM 10X21X0,20
-
1036120335 SHIM 10X23X0,20SHIM 10X23X0,20
-
1036120336 SHIM 10X25X0,20SHIM 10X25X0,20
-
1036120337 SHIM 10X27X0,20SHIM 10X27X0,20
-
1036120338 SHIM 10X29X0,20SHIM 10X29X0,20
-
1036120339 SHIM 10X31X0,20SHIM 10X31X0,20
-
1036120340 SHIM 10X33X0,20SHIM 10X33X0,20
-
1036120342 SHIM 10X21X0,25SHIM 10X21X0,25
-
1036120343 SHIM 10X23X0,25SHIM 10X23X0,25
-
1036120344 SHIM 10X25X0,25SHIM 10X25X0,25
-
1036120345 SHIM 10X27X0,25SHIM 10X27X0,25
-
1036120349 SHIM 10X19X0,30SHIM 10X19X0,30
-
1036120350 SHIM 10X21X0,30SHIM 10X21X0,30
-
1036120313 SHIM 10X17X0,30SHIM 10X17X0,30
-
1036120354 SHIM 10X29X0,30SHIM 10X29X0,30
-
1040140275 WASHER 10X35X0,15WASHER 10X35X0,15
-
1048601708 SHIM 10X30X0,40SHIM 10X30X0,40
-
1036120346 SHIM 10X29X0,25SHIM 10X29X0,25
-
1036120355 SHIM 10X31X0,30SHIM 10X31X0,30
-
1036120348 SHIM 10X33X0,25SHIM 10X33X0,25
-
1036120604 SHIM D10XD22X2,5SHIM D10XD22X2,5
-
1246810490 SHIM 12X24X0,20SHIM 12X24X0,20
-
1246810491 SHIM 12X26X0,20SHIM 12X26X0,20
-
1246810492 SHIM 12X28X0,20SHIM 12X28X0,20
-
1246810493 SHIM 12X30X0,20SHIM 12X30X0,20
-
1246810494 SHIM 12X32X0,20SHIM 12X32X0,20
-
1246810495 SHIM 12X34X0,20SHIM 12X34X0,20
-
1246810496 SHIM 12X36X0,20SHIM 12X36X0,20
-
1246810497 SHIM 12X38X0,20SHIM 12X38X0,20
-
1246810498 SHIM 12X40X0,20SHIM 12X40X0,20
-
1246810499 SHIM 12X24X0,25SHIM 12X24X0,25
-
1246810500 SHIM 12X26X0,25SHIM 12X26X0,25
-
1246810501 SHIM 12X28X0,25SHIM 12X28X0,25
-
1246810502 SHIM 12X30X0,25SHIM 12X30X0,25
-
1246810504 SHIM 12X34X0,25SHIM 12X34X0,25
-
1246810505 SHIM 12X36X0,25SHIM 12X36X0,25
-
1246810507 SHIM 12X40X0,25SHIM 12X40X0,25
-
1246810508 SHIM 12X24X0,30SHIM 12X24X0,30
-
1246810509 SHIM 12X26X0,30SHIM 12X26X0,30
-
1246810510 SHIM 12X28X0,30SHIM 12X28X0,30
-
1246810512 SHIM 12X32X0,30SHIM 12X32X0,30
-
1246810513 SHIM 12X34X0,30SHIM 12X34X0,30
-
1246810518 SHIM 12X26X0,15SHIM 12X26X0,15
-
1246810519 SHIM 12X28X0,15SHIM 12X28X0,15
-
1246810520 SHIM 12X30X0,15SHIM 12X30X0,15
-
1246810521 SHIM 12X32X0,15SHIM 12X32X0,15
-
1246810522 SHIM 12X34X0,15SHIM 12X34X0,15
-
1246810523 SHIM 12X36X0,15SHIM 12X36X0,15
-
1246810524 SHIM 12X38X0,15SHIM 12X38X0,15
-
1246810525 SHIM 12X40X0,15SHIM 12X40X0,15
-
1246810604 SHIM 12X20X0,10SHIM 12X20X0,10
-
1246810606 SHIM 12X22X0,10SHIM 12X22X0,10
-
1246810607 SHIM 12X23X0,10SHIM 12X23X0,10
-
1246810608 SHIM 12X24X0,10SHIM 12X24X0,10
-
1246810610 SHIM 12X27X0,15SHIM 12X27X0,15
-
1246810611 SHIM 12X18X0,15SHIM 12X18X0,15
-
1246810612 SHIM 12X19X0,15SHIM 12X19X0,15
-
1246810615 SHIM 12X22X0,15SHIM 12X22X0,15
-
1246810636 BACKPLATE 12X16X0,30BACKPLATE 12X16X0,30
-
1246810637 BACKPLATE 12X17X0,30BACKPLATE 12X17X0,30
-
1246810638 BACKPLATE 12X18X0,30BACKPLATE 12X18X0,30
-
1246810639 SHIM 12X19X0,30SHIM 12X19X0,30
-
1246810641 BACKPLATE 12X21X0,30BACKPLATE 12X21X0,30
-
1246811582 BACKPLATE 12X30X0,10BACKPLATE 12X30X0,10
-
1246810631 SHIM 12X20X0,25SHIM 12X20X0,25
-
1246810633 SHIM 12X22X0,25SHIM 12X22X0,25
-
1246811580 SHIM 12X32X0,10SHIM 12X32X0,10
-
1246810503 SHIM 12X32X0,25SHIM 12X32X0,25
-
1246810517 SHIM 12X24X0,15 (NLA)SHIM 12X24X0,15 (NLA)
-
1246810856 SHIM 12X20X0,3 CCSHIM 12X20X0,3 CC
-
1246811258 RING 12X24X2,5RING 12X24X2,5
-
1246812018 SHIM 12X42X0,25SHIM 12X42X0,25
-
1246812015 SHIM 12X44X0,20SHIM 12X44X0,20
-
1246810613 SHIM 12X20X0,15SHIM 12X20X0,15
-
1246810623 SHIM 12X21X0,20SHIM 12X21X0,20
-
1246810624 SHIM 12X22X0,20SHIM 12X22X0,20
-
1246810642 SHIM 12X22X0,30SHIM 12X22X0,30
-
1246810643 SHIM 12X23X0,30SHIM 12X23X0,30
-
1246811629 SHIM 12X28X0,10SHIM 12X28X0,10
-
1246810511 SHIM 12X30X0,30SHIM 12X30X0,30
-
1246810514 SHIM 12X36X0,30SHIM 12X36X0,30
-
1246810506 SHIM 12X38X0,25SHIM 12X38X0,25
-
1246810515 SHIM 12X38X0,30SHIM 12X38X0,30
-
1246812017 SHIM 12X42X0,20SHIM 12X42X0,20
-
1246812016 SHIM 12X44X0,25SHIM 12X44X0,25
-
1246810622 SHIM 12X20X0,20SHIM 12X20X0,20
-
1246811635 CURVED WASHER 12X26X0,10CURVED WASHER 12X26X0,10
-
1446811046 SHIM 14,5X35,4X1,25SHIM 14,5X35,4X1,25
-
1650180023 SHIM 16X23X0,20SHIM 16X23X0,20
-
1650180023 SHIM 16X23X0,20SHIM 16X23X0,20
-
1650180006 BACKPLATE 16X20X0,10BACKPLATE 16X20X0,10
-
1650180007 SHIM 16X21X0,10SHIM 16X21X0,10
-
1650180028 SHIM 16X21X0,25SHIM 16X21X0,25
-
1650180210 WASHER 16X21X1WASHER 16X21X1
-
1650180008 SHIM 16X22X0,10SHIM 16X22X0,10
-
1650180022 SHIM 16X22X0,20SHIM 16X22X0,20
-
1650180037 SHIM 16X23X0,30SHIM 16X23X0,30
-
1650180038 SHIM 16X24X0,30SHIM 16X24X0,30
-
1650180032 SHIM 15X25X0,25SHIM 15X25X0,25
-
1650180039 SHIM 16X25X0,30SHIM 16X25X0,30
-
1650180012 SHIM 16X26X0,10SHIM 16X26X0,10
-
1650180019 SHIM 16X26X0,15SHIM 16X26X0,15
-
1650180026 SHIM 16X26X0,20SHIM 16X26X0,20
-
1650180040 SHIM 16X26X0,30SHIM 16X26X0,30
-
1650180041 SHIM 16X28X0,10SHIM 16X28X0,10
-
1650180045 SHIM 16X28X0,15SHIM 16X28X0,15
-
1650180054 SHIM 16X28X0,20SHIM 16X28X0,20
-
1650180063 SHIM 16X28X0,25SHIM 16X28X0,25
-
1650180072 SHIM 16X28X0,30SHIM 16X28X0,30
-
1650180046 SHIM 16X30X0,15SHIM 16X30X0,15
-
1650180055 SHIM 16X30X0,20SHIM 16X30X0,20
-
1650180064 SHIM 16X30X0,25SHIM 16X30X0,25
-
1650180073 SHIM 16X30X0,30SHIM 16X30X0,30
-
1650180047 SHIM 16X32X0,15SHIM 16X32X0,15
-
1650180056 SHIM 16X32X0,20SHIM 16X32X0,20
-
1650180065 SHIM 16X32X0,25SHIM 16X32X0,25
-
1650180074 SHIM 16X32X0,30SHIM 16X32X0,30
-
1650180044 SHIM 16X34X0,10SHIM 16X34X0,10
-
1650180048 SHIM 16X34X0,15SHIM 16X34X0,15
-
1650180057 SHIM 16X34X0,20SHIM 16X34X0,20
-
1650180066 SHIM 16X34X0,25SHIM 16X34X0,25
-
1650180075 SHIM 16X34X0,30SHIM 16X34X0,30
-
1650180049 SHIM 16X36X0,15SHIM 16X36X0,15
-
1650180058 SHIM 16X36X0,20SHIM 16X36X0,20
-
1650180067 SHIM 16X36X0,25SHIM 16X36X0,25
-
1650180076 SHIM 16X36X0,30SHIM 16X36X0,30
-
1650180050 SHIM 16X38X0,15SHIM 16X38X0,15
-
1650180059 SHIM 16X38X0,20SHIM 16X38X0,20
-
1650180068 SHIM 16X38X0,25SHIM 16X38X0,25
-
1650180077 SHIM 16X38X0,30SHIM 16X38X0,30
-
1650180051 SHIM 16X40X0,15SHIM 16X40X0,15
-
1650180060 SHIM 16X40X0,20SHIM 16X40X0,20
-
1650180069 SHIM 16X40X0,25SHIM 16X40X0,25
-
1650180078 SHIM 16X40X0,30SHIM 16X40X0,30
-
1650180052 SHIM 16X42X0,15SHIM 16X42X0,15
-
1650180061 SHIM 16X42X0,20SHIM 16X42X0,20
-
1650180070 SHIM 16X42X0,25SHIM 16X42X0,25
-
1650180079 SHIM 16X42X0,30SHIM 16X42X0,30
-
1650180053 SHIM 16X44X0,15SHIM 16X44X0,15
-
1650180062 SHIM 16X44X0,20SHIM 16X44X0,20
-
1650180071 SHIM 16X44X0,25SHIM 16X44X0,25
-
1650180080 SHIM 16X44X0,30SHIM 16X44X0,30
-
1650180177 WASHER 16X8,2X0,6WASHER 16X8,2X0,6
-
1650180033 SHIM 16X26X0.25SHIM 16X26X0.25
-
1650180034 BACKPLATE 16X20X0,30BACKPLATE 16X20X0,30
-
1650180035 BACKPLATE 16X21X0,30BACKPLATE 16X21X0,30
-
1650180036 BACKPLATE 16X22X0,30BACKPLATE 16X22X0,30
-
1650180036 BACKPLATE 16X22X0,30BACKPLATE 16X22X0,30
-
1650180024 SHIM 16X24X0,20SHIM 16X24X0,20
-
1650180027 SHIM 16X20X0,25SHIM 16X20X0,25
-
1650180031 SHIMSHIM
-
1650180029 SHIMSHIM
-
1650180010 SHIM 16X24X0,10SHIM 16X24X0,10
-
2048600212 PRESSURE-RING 20X16,25X0,20PRESSURE-RING 20X16,25X0,20
-
2050180666 SHIM 20X24X0,30SHIM 20X24X0,30
-
2050180654 SHIM 20X36X0,20SHIM 20X36X0,20
-
2050180655 SHIM 20X38X0,20SHIM 20X38X0,20
-
2050180656 SHIM 20X40X0,20SHIM 20X40X0,20
-
2050180665 SHIM 20X40X0,25SHIM 20X40X0,25
-
2050180662 SHIM 20X34X0,25SHIM 20X34X0,25
-
2050180657 SHIM 20X24X0,25SHIM 20X24X0,25
-
2050180653 SHIM 20X34X0,20SHIM 20X34X0,20
-
2050180634 RING 20X22,9X1RING 20X22,9X1
-
2050180650 SHIM 20,2X28X0, 20SHIM 20,2X28X0, 20
-
2050180663 SHIM 20X36X0,25SHIM 20X36X0,25
-
2050180664 SHIM 20X38X0,25SHIM 20X38X0,25
-
2050180659 SHIM 20,2X28X0,25SHIM 20,2X28X0,25
-
2150180209 WASHER 21X36X0,25WASHER 21X36X0,25
-
2250180330 PRESS. RING 22X18X0,30PRESS. RING 22X18X0,30
-
2350180635 SHUTTLE VALVE 23X38X0,25SHUTTLE VALVE 23X38X0,25
-
2350180578 SHIM D23XD16X2SHIM D23XD16X2
-
2440541061 WASHER 24,5X34X2WASHER 24,5X34X2
-
2836120469 SHIM 28,5X14X2SHIM 28,5X14X2
-
2836120471 SHIM 28,5X14X5SHIM 28,5X14X5
-
3248600460 WASHER 32X42X2,5WASHER 32X42X2,5
-
3250600065 SHIM 32X45X2SHIM 32X45X2
-
3246811637 PRESSURE RING 36X32,25PRESSURE RING 36X32,25
-
5250600002 SHIM 52X59X2,2SHIM 52X59X2,2
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER
- BALANCER SHAFT
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT - PISTON
- CYLINDER- CYLINDER HEAD
- DECAL
- ENGINE 250 EXC TPI 2018 FUEL DISTRIBUTOR
- ENGINE CASE
- EXHAUST CONTROL
- EXHAUST SYSTEM
- FRAME
- FRONT FORK DISASSEMBLED
- FRONT FORK- TRIPLE CLAMP
- FRONT WHEEL
- FUEL PUMP
- HAND BRAKE CYLINDER
- HANDLEBAR- CONTROLS
- IGNITION SYSTEM
- INSTRUMENTS / LOCK SYSTEM
- KICK STARTER
- LIGHTING SYSTEM
- LUBRICATING SYSTEM
- MASK- FENDERS
- REAR BRAKE CONTROL
- REAR WHEEL
- REED VALVE CASE
- SHIFTING MECHANISM
- SHOCK ABSORBER
- SHOCK ABSORBER DISASSEMBLED
- SIDE/CENTER STAND
- SWING ARM
- TANK- SEAT- COVER
- THROTTLE BODY
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
- WATER PUMP
- WIRING HARNESS
- • WP SHIMS FOR SETTING
