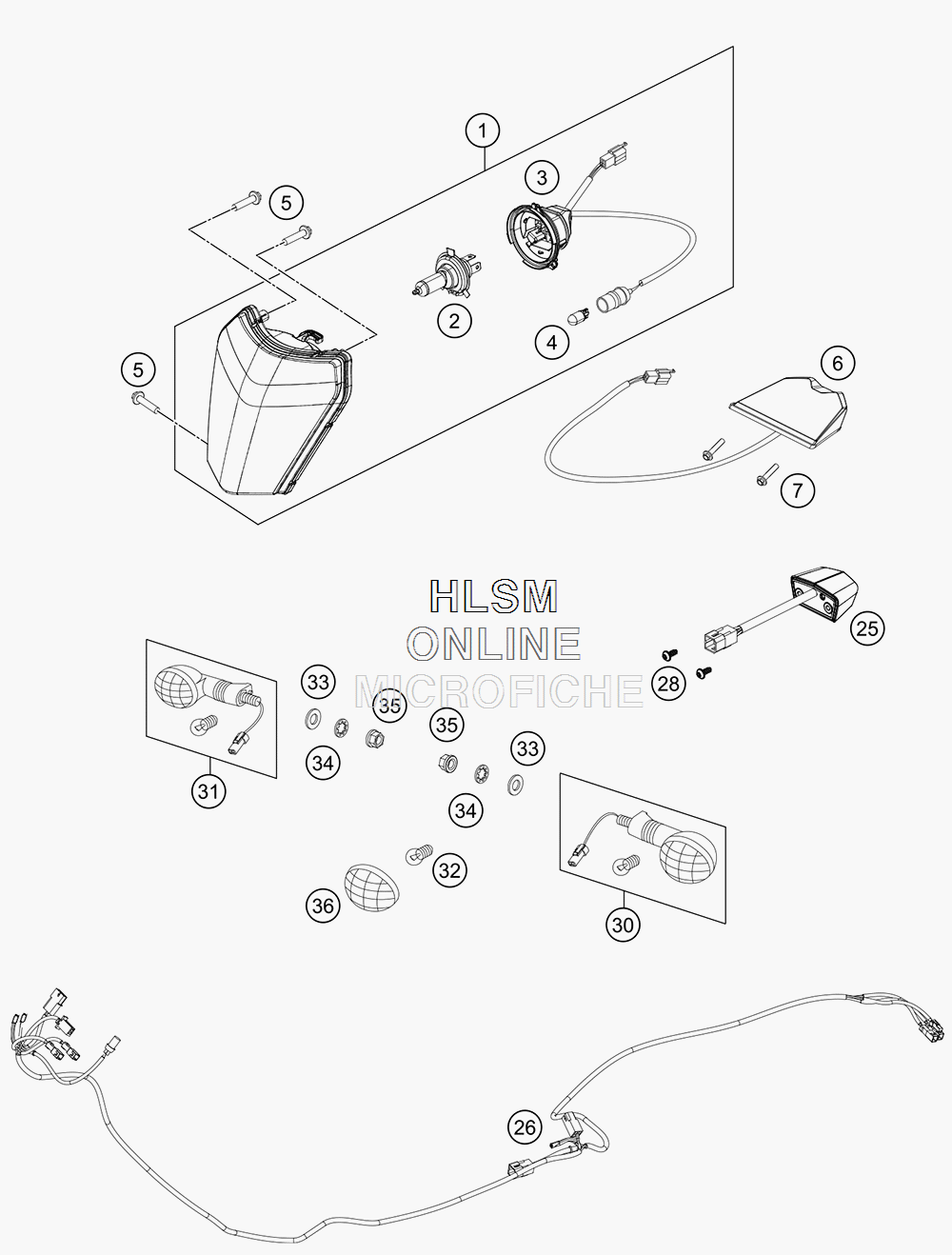

LIGHTING SYSTEM для Ktm 250 EXC TPI - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    78114001000 HEAD LIGHT CPL.
    HEAD LIGHT CPL.
  • 2
    54611038012 BULB HS1 12V 35/35W WHITE
    BULB HS1 12V 35/35W WHITE
  • 3
    78114001050 LAMP BRACKET CPL.
    LAMP BRACKET CPL.
  • 4
    49011435100 BULB 12V 5W (W2,1X9,5D) PHIL.
    BULB 12V 5W (W2,1X9,5D) PHIL.
  • 5
    0081050181 SCREW FOR PLASTIC K50X18 T20
    SCREW FOR PLASTIC K50X18 T20
  • 6
    78114040000 REAR LIGHT
    REAR LIGHT
  • 7
    0017060255 EJOT PT SCREW K60X25-Z SW6
    EJOT PT SCREW K60X25-Z SW6
  • 25
    60314047000 NUMBER PLATE LIGHT
    NUMBER PLATE LIGHT
  • 26
    77711081100 TURN SIGNAL WIRING HARNESS
    TURN SIGNAL WIRING HARNESS
  • 28
    0081050121 SCREW FOR PLASTIC K50X12
    SCREW FOR PLASTIC K50X12
  • 30
    54814025200 FLASHER CPL. FR.L/S RE.R/S
    FLASHER CPL. FR.L/S RE.R/S
  • 31
    54814026200 FLASHER CPL. FR.R/S RE.L/S
    FLASHER CPL. FR.R/S RE.L/S
  • 32
    44111015100 BULB 12V 10W
    BULB 12V 10W
  • 33
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 34
    0797100003 LOCK WASHER DIN6797-J10,5 ZI
    LOCK WASHER DIN6797-J10,5 ZI
  • 35
    58414030000 HH COLLAR NUT M10X1,25
    HH COLLAR NUT M10X1,25
  • 36
    54814028000 FLASHER LENS L/S R/S
    FLASHER LENS L/S R/S
