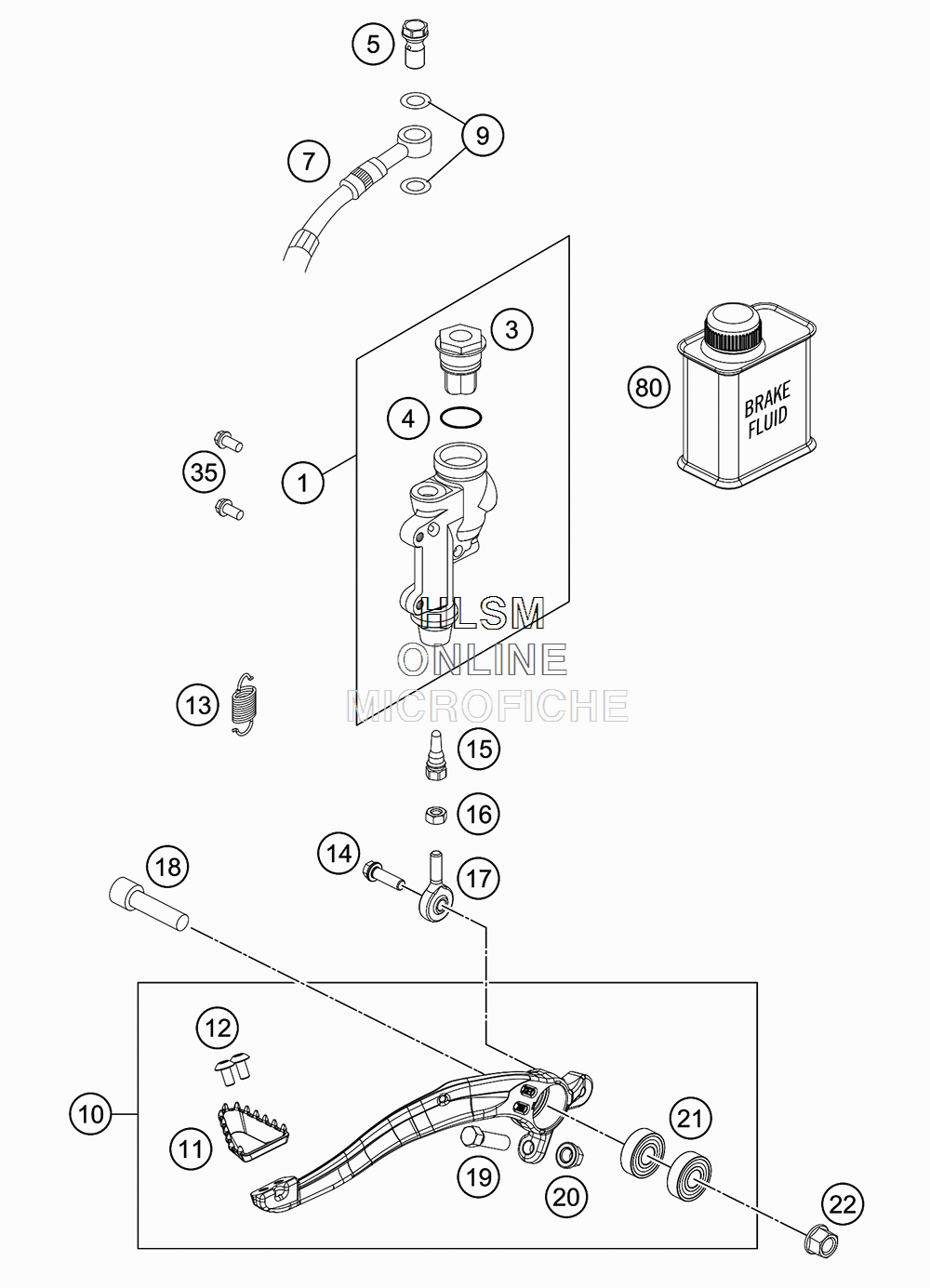

REAR BRAKE CONTROL для Ktm 150 SX - 2018 года выпуска`
-
№АртикулНазвание
-
177013060044 REAR BRAKE CYLINDER CPL.REAR BRAKE CYLINDER CPL.
-
354813062100 REAR BRAKE CYL. COVER CPL.REAR BRAKE CYL. COVER CPL.
-
454813063000 FOOT-BRAKE CYL. GASKETFOOT-BRAKE CYL. GASKET
-
554813020100 HOLLOW SCREW BLACK M10X1X19HOLLOW SCREW BLACK M10X1X19
-
777213070100 BRAKE HOSE REARBRAKE HOSE REAR
-
90603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
1079413050044 FOOT BRAKE LEVER CPL.FOOT BRAKE LEVER CPL.
-
1179413051000 STEP BRAKE LEVERSTEP BRAKE LEVER
-
1278105081010 SCREW TORX M5X10SCREW TORX M5X10
-
1379003062000 RETURN SPRING F. BRAKE LEVERRETURN SPRING F. BRAKE LEVER
-
140025060206S HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1554813056000 PUSH ROD L=28MMPUSH ROD L=28MM
-
160934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
1754813055100 SWIVEL HEAD CMP6SWIVEL HEAD CMP6
-
180032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
1959001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
2046030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
210625060002 BALL BEARING SKF 6000-2RS1BALL BEARING SKF 6000-2RS1
-
2254630044000 COLLAR NUT M10COLLAR NUT M10
-
350025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
8000062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
