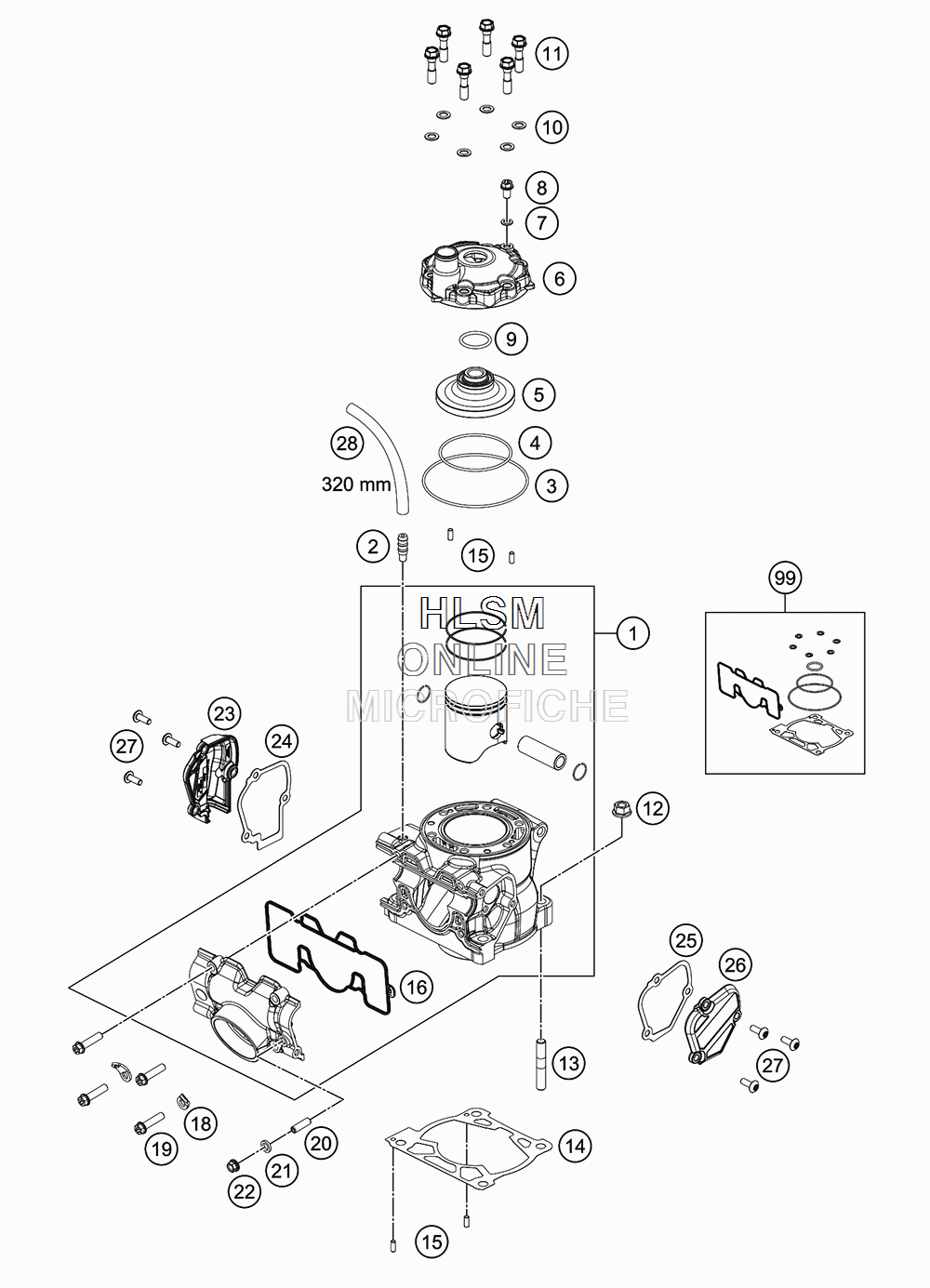

CYLINDER CYLINDER HEAD для Ktm 150 SX - 2018 года выпуска`
-
№АртикулНазвание
-
151630038000 CYLINDER + PISTON CPL.CYLINDER + PISTON CPL.
-
258336020090 VACUUM CONNECTION M 6X1VACUUM CONNECTION M 6X1
-
30770890200 O-RING 89X2 NBR 70 SHO-RING 89X2 NBR 70 SH
-
40770640200 O-RING 64X2 FPM 80SHO-RING 64X2 FPM 80SH
-
551630060000 COMBUSTION CHAMBER INLAYCOMBUSTION CHAMBER INLAY
-
651630106000 CYLINDER HEADCYLINDER HEAD
-
70603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
80025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
907702300251 O-RING 23,00X2,5 NBR 70 SHO-RING 23,00X2,5 NBR 70 SH
-
100603070121 CU-SEAL RING DIN7603- 7,3X12X1CU-SEAL RING DIN7603- 7,3X12X1
-
1150430079000 CYLINDER HEAD SCREWCYLINDER HEAD SCREW
-
1250330045000 HH COLLAR NUT M 8HH COLLAR NUT M 8
-
130835080326 STUD DIN 835 M8X32STUD DIN 835 M8X32
-
1450430035015 CYLINDER BASE GASKET 0.15MMCYLINDER BASE GASKET 0.15MM
-
1450430035020 CYLINDER BASE GASKET 0.20MMCYLINDER BASE GASKET 0.20MM
-
1450430035025 CYLINDER BASE GASKET 0.25MMCYLINDER BASE GASKET 0.25MM
-
1450430035040 CYLINDER BASE GASKET 0.40MMCYLINDER BASE GASKET 0.40MM
-
1450430035050 CYLINDER BASE GASKET 0.50MMCYLINDER BASE GASKET 0.50MM
-
1450430035075 CYLINDER BASE GASKET 0.75MMCYLINDER BASE GASKET 0.75MM
-
150402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
1650437046000 GASKET CONNECTION FLANGEGASKET CONNECTION FLANGE
-
1851005074000 RETAINING PLATERETAINING PLATE
-
190025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
200913060203 THREAD PIN DIN0913-M 6X20THREAD PIN DIN0913-M 6X20
-
210603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
2277336088106 COLLAR NUT M6X1 SW8COLLAR NUT M6X1 SW8
-
235043700700033 EXHAUST CONTROL COVER R/SEXHAUST CONTROL COVER R/S
-
2450437008000 GASKET EXH. CONTROL COVER R/SGASKET EXH. CONTROL COVER R/S
-
2550437006000 GASKET EXH. CONTROL COVER L/SGASKET EXH. CONTROL COVER L/S
-
265043700500033 EXHAUST CONTROL COVER L/SEXHAUST CONTROL COVER L/S
-
2758605083014 SCREW M5X14 TORX 25SCREW M5X14 TORX 25
-
2850335030001 PVC-HOSE 6X9PVC-HOSE 6X9
-
9950430097000 CYLINDER GASKET SETCYLINDER GASKET SET
