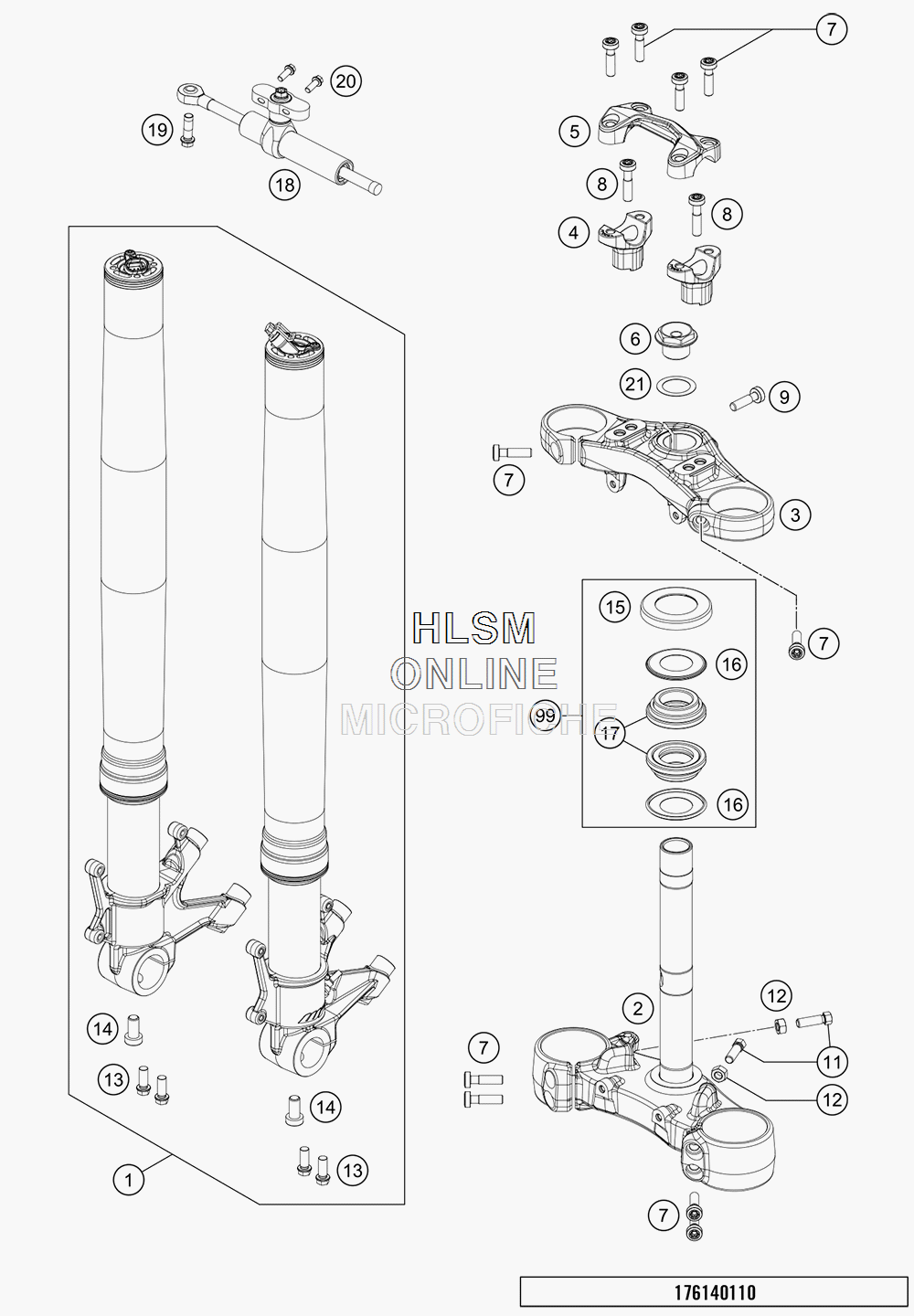

FRONT FORK - TRIPLE CLAMP для Ktm 1290 SUPER DUKE GT ORANGE - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    14181Q2301 FORK SAFE
    FORK SAFE
  • 2
    6140103202933S BOTTOM TRIPLE CLAMP CPL.
    BOTTOM TRIPLE CLAMP CPL.
  • 3
    6140103402933S UPPER TRIPLE CLAMP
    UPPER TRIPLE CLAMP
  • 4
    6140103904233S HANDLE BAR SUPPORT
    HANDLE BAR SUPPORT
  • 5
    6130103800033S HANDLEBAR CLAMP
    HANDLEBAR CLAMP
  • 6
    6900103600001 STEERING HEAD SCREW
    STEERING HEAD SCREW
  • 7
    0035080306 AH-COLLAR SCREW M8X30 ISA45
    AH-COLLAR SCREW M8X30 ISA45
  • 8
    0032100356S AH-COLLAR SCREW M10X35 ISA45
    AH-COLLAR SCREW M10X35 ISA45
  • 9
    0035080306S AH-COLLAR SCREW M8X30 ISA45
    AH-COLLAR SCREW M8X30 ISA45
  • 11
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 12
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 13
    0025080206 HH COLLAR SCREW M8X20
    HH COLLAR SCREW M8X20
  • 14
    00501020S1 AH SCREW M10X20 SET
    AH SCREW M10X20 SET
  • 15
    69001086100 PROT. RING STEER. HEAD BEARING
    PROT. RING STEER. HEAD BEARING
  • 16
    69001084100 STEARING HEAD GASKET
    STEARING HEAD GASKET
  • 17
    69001081000 STEERINGHEAD BEARING CPL.
    STEERINGHEAD BEARING CPL.
  • 18
    16181N52ES STEERING DAMPER CPL. STROKE 75
    STEERING DAMPER CPL. STROKE 75
  • 19
    0025080256S HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 20
    0025060206S HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 21
    0988253505 THRUST WASH DIN0988-25X35X0,5
    THRUST WASH DIN0988-25X35X0,5
  • 99
    69001081044 STEARING HEAD REP . KIT
    STEARING HEAD REP . KIT
