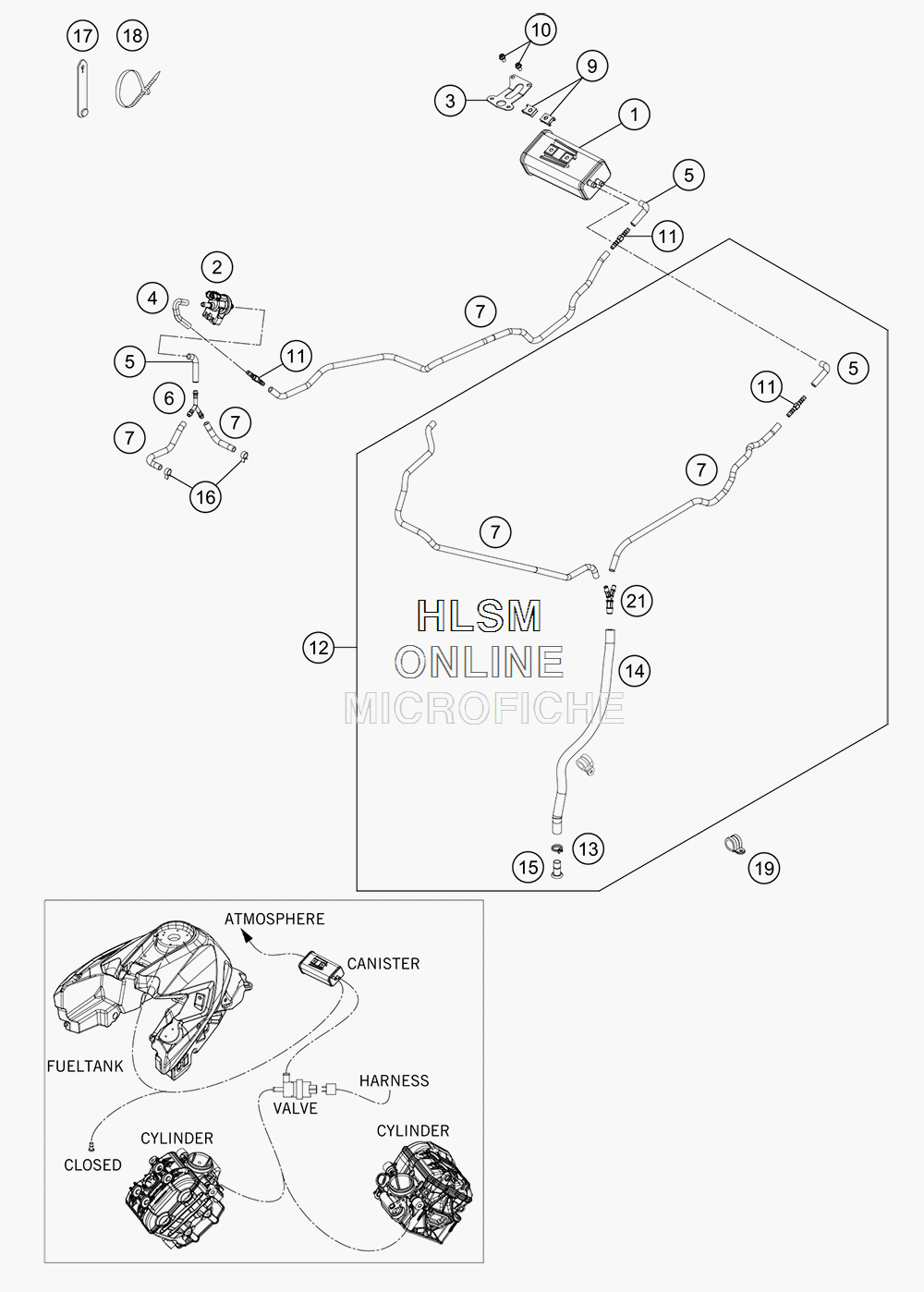

EVAPORTIVE CANISTER для Ktm 1290 SUPER DUKE GT ORANGE - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    75015001200 CARBON CANISTER
    CARBON CANISTER
  • 2
    76015015000 VALVE EVAP
    VALVE EVAP
  • 3
    61415002000 BRACKET FOR CARBON CANISTER
    BRACKET FOR CARBON CANISTER
  • 4
    61415021000 HOSE PURGE VALVE
    HOSE PURGE VALVE
  • 5
    61315022000 PREFORMED HOSE 6X10 FPM
    PREFORMED HOSE 6X10 FPM
  • 6
    60015025100 Y-CONNECTING PIECE YS 6-6-6 06
    Y-CONNECTING PIECE YS 6-6-6 06
  • 7
    78015019000 HOSE EPA D=6/10 L=2000MM
    HOSE EPA D=6/10 L=2000MM
  • 9
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 10
    0025060126 HH COLLAR SCREW M6X12
    HH COLLAR SCREW M6X12
  • 11
    69015019010 HOSE CONNECTION STRAIGHT
    HOSE CONNECTION STRAIGHT
  • 12
    61415025033 TANK VENT. TUBE - AKF
    TANK VENT. TUBE - AKF
  • 13
    58431082100 YDNAC-CLAMP 10173 (16MM)
    YDNAC-CLAMP 10173 (16MM)
  • 14
    78015119000 HOSE EPA D=10/16 L=2000MM
    HOSE EPA D=10/16 L=2000MM
  • 15
    61315026000 PLUG D=10
    PLUG D=10
  • 16
    59007017000 CLAMP YDNAC 10096F (9,6MM)
    CLAMP YDNAC 10096F (9,6MM)
  • 17
    60011093075 RUBBER CABLE TIE 75MM
    RUBBER CABLE TIE 75MM
  • 17
    60011093060 RUBBER CABLE TIE 60MM
    RUBBER CABLE TIE 60MM
  • 18
    44011076140 CABLE TIE 140/2,5MM BLACK
    CABLE TIE 140/2,5MM BLACK
  • 19
    61315027000 CABLE CLAMP D=16
    CABLE CLAMP D=16
  • 20
    61315028100 Y-CONNECTOR YS 6-10-6
    Y-CONNECTOR YS 6-10-6
