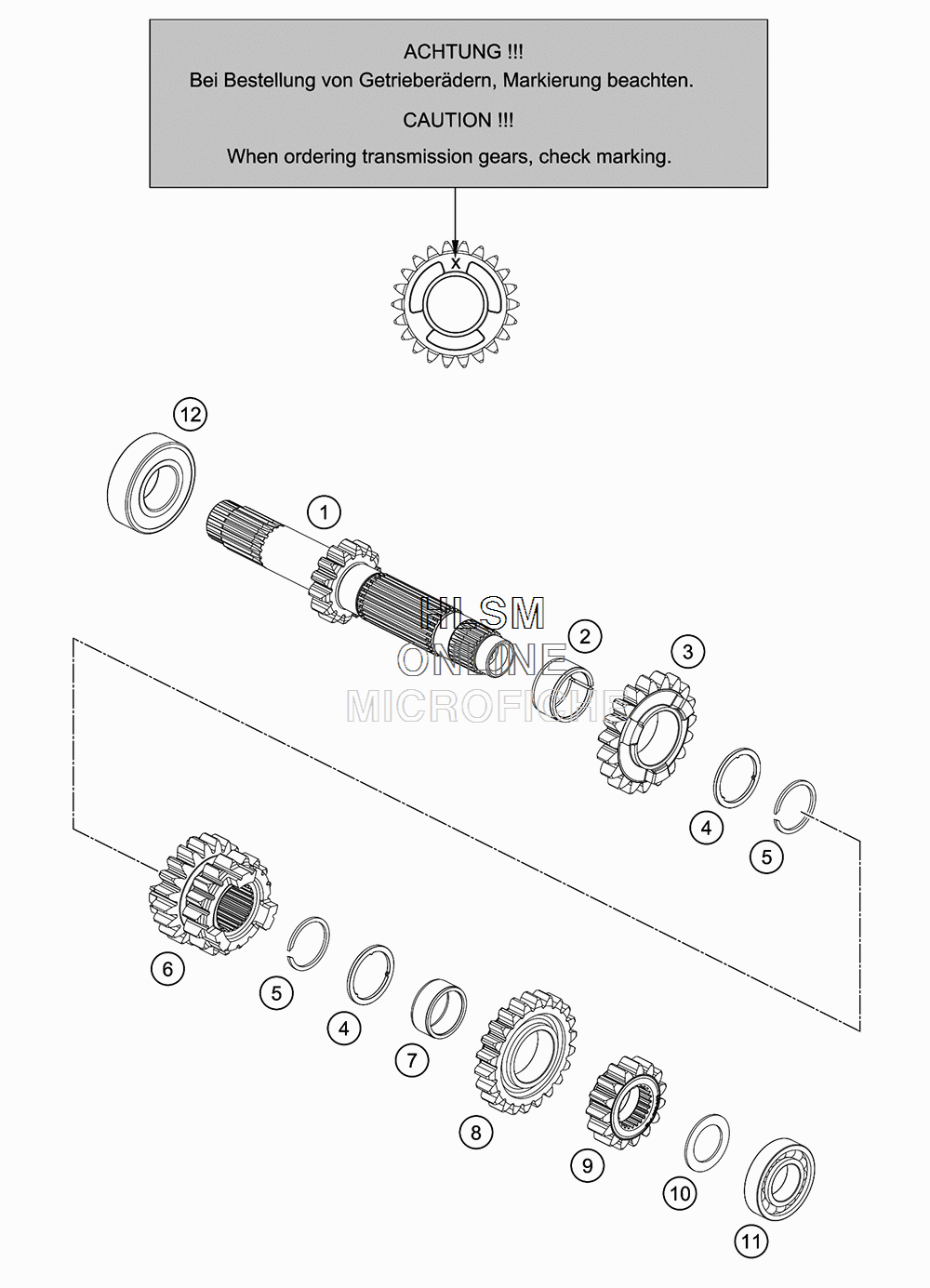

TRANSMISSION I - MAIN SHAFT для Ktm 125 SX - 2018 года выпуска
-
№АртикулНазвание
-
150433001100 DRIVE SHAFT CPL. 14TDRIVE SHAFT CPL. 14T
-
20405212513 NEEDLE BEARING K21X25X13 SPLITNEEDLE BEARING K21X25X13 SPLIT
-
350433005300 IDLER GEAR 5TH GEAR 19TIDLER GEAR 5TH GEAR 19T
-
450433043000 STOP DISKSTOP DISK
-
550133090000 LOCK RING 22X1,2LOCK RING 22X1,2
-
650433003000 SLIDING GEAR, 3RD/4TH GEARSLIDING GEAR, 3RD/4TH GEAR
-
70405202410 NEEDLE BEARING K20X24X10NEEDLE BEARING K20X24X10
-
850433006100 IDLER GEAR 6TH GEAR 22TIDLER GEAR 6TH GEAR 22T
-
950433002100 SOLID GEAR 2ND GEAR 15TSOLID GEAR 2ND GEAR 15T
-
1050333041000 STOP DISC 17,2X26X1 BSTOP DISC 17,2X26X1 B
-
110625160031 GROOVED BALL B. 16003 C4 J1GROOVED BALL B. 16003 C4 J1
-
120625060041 BALL BEARING 6004 TNH C3BALL BEARING 6004 TNH C3
