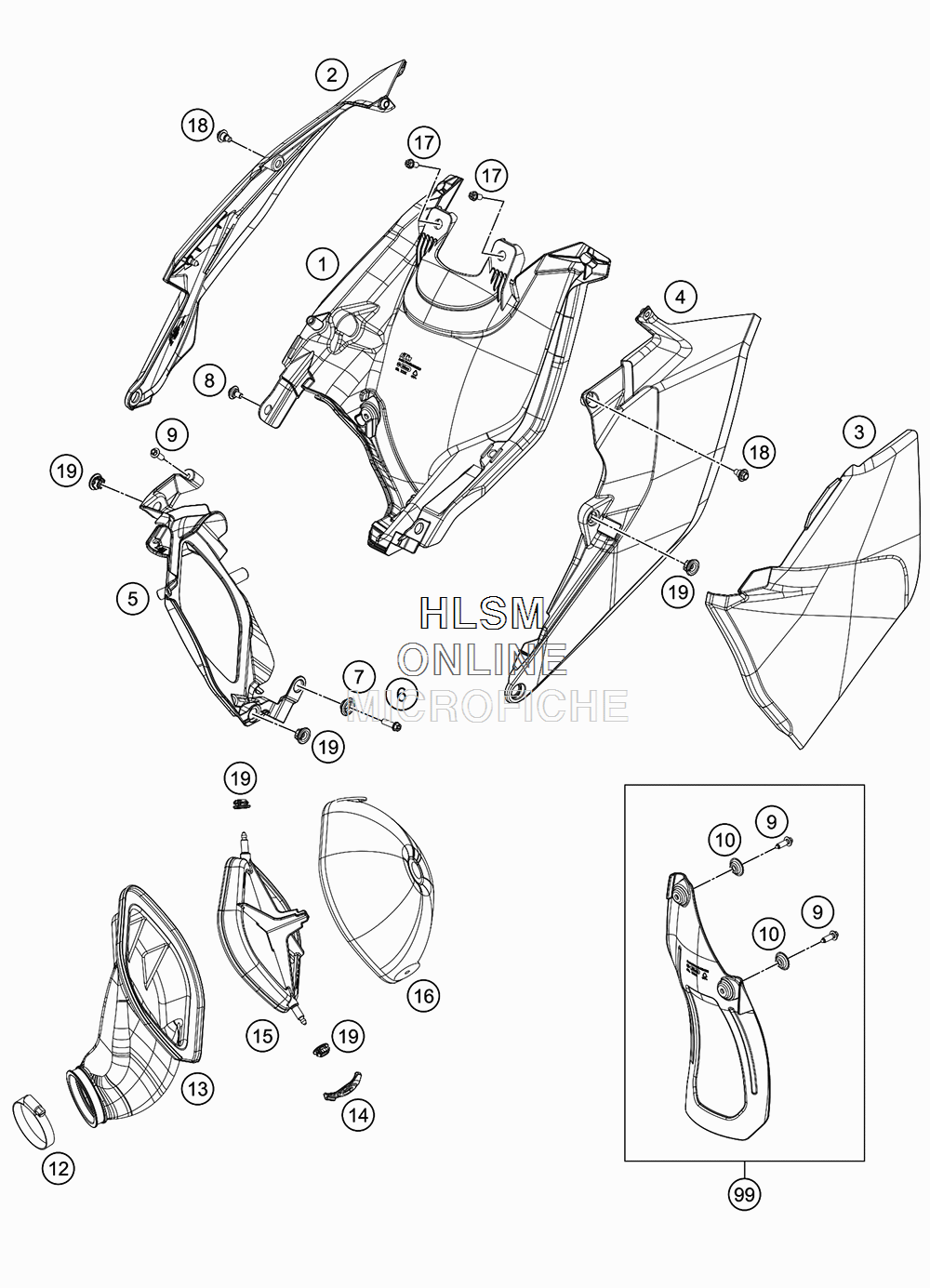

AIR FIL TER для Ktm 125 SX - 2018 года выпуска`
-
№АртикулНазвание
-
17900600100028 AIR BOX BOTTOMAIR BOX BOTTOM
-
27900600400028 AIR FILTER BOX COVER RIGHTAIR FILTER BOX COVER RIGHT
-
37900600300028 AIR FILTER BOX COVER LEFTAIR FILTER BOX COVER LEFT
-
47900600700028 FILTERBOX SIDEFILTERBOX SIDE
-
57900600101028 FILTER BOX FRONT PARTFILTER BOX FRONT PART
-
60025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
777308013010 COLLAR BUSH. F.REAR FENDERCOLLAR BUSH. F.REAR FENDER
-
883008000015 SPECIAL SCREW M6X15X3SPECIAL SCREW M6X15X3
-
90017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
1077304066050 BUSHING F. CHAIN SLIDING PR.BUSHING F. CHAIN SLIDING PR.
-
1251006027000 HOSE CLAMP 50-70MMHOSE CLAMP 50-70MM
-
1350406026000 AIRBOX RUBBERAIRBOX RUBBER
-
1479006017000 FILTER MOUNTING BRACKETFILTER MOUNTING BRACKET
-
1550406016000 AIR FILTER SUPPORTAIR FILTER SUPPORT
-
1679006015000 AIR FILTERAIR FILTER
-
170025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
1859001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
1947106003160 QUICK CONNECTOR CLUTCHQUICK CONNECTOR CLUTCH
-
9979006010010 SPLASH PROTECTOR KITSPLASH PROTECTOR KIT
