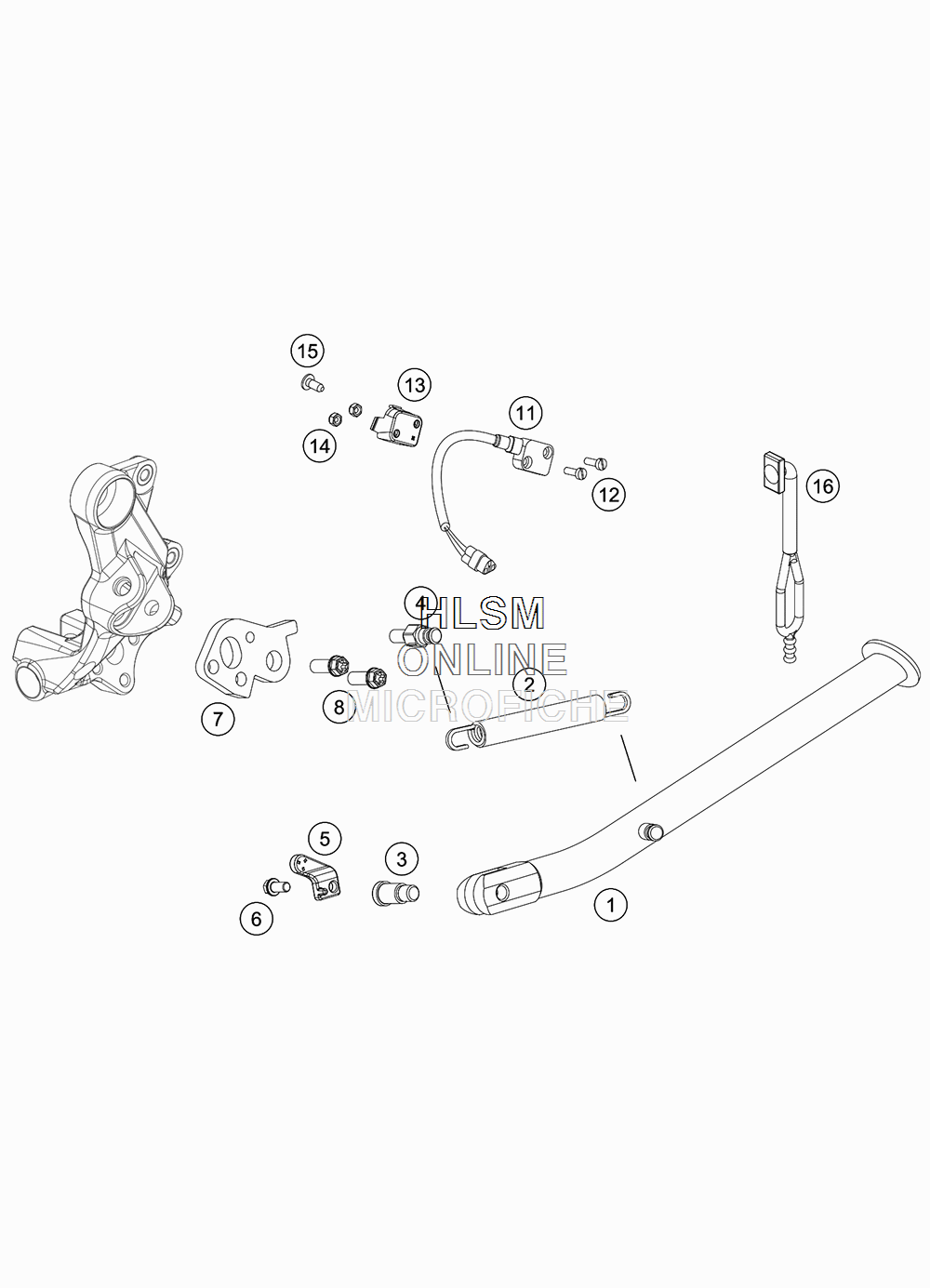

SIDE / CENTER STAND для Ktm 690 ENDURO R - 2017 года выпуска
-
№АртикулНазвание
-
17650312300033 SIDE STAND L=295MM ENDURO08SIDE STAND L=295MM ENDURO08
-
261003024000 SPRING L=116 MMSPRING L=116 MM
-
362503027200 SCREW FOR SIDE STAND M10X31,2SCREW FOR SIDE STAND M10X31,2
-
476503028001 SPECIAL SCR. SIDE STAND SPRINGSPECIAL SCR. SIDE STAND SPRING
-
576503029000 MAGNET HOLDERMAGNET HOLDER
-
60025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
776503026000 SIDE STAND BRACKET 08SIDE STAND BRACKET 08
-
80025080206 HH COLLAR SCREW M8X20HH COLLAR SCREW M8X20
-
1161011045000 SIDE STAND SENSORSIDE STAND SENSOR
-
120084040123 CYL.HEAD SCREW DIN84A M4X12CYL.HEAD SCREW DIN84A M4X12
-
1376511045050 HOLDER FOR SIDESTAND SWITCHHOLDER FOR SIDESTAND SWITCH
-
140985040003 SELF LOCKING NUT DIN0985-M 4SELF LOCKING NUT DIN0985-M 4
-
150081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
1676503025000 RUBBER SIDE STANDRUBBER SIDE STAND
