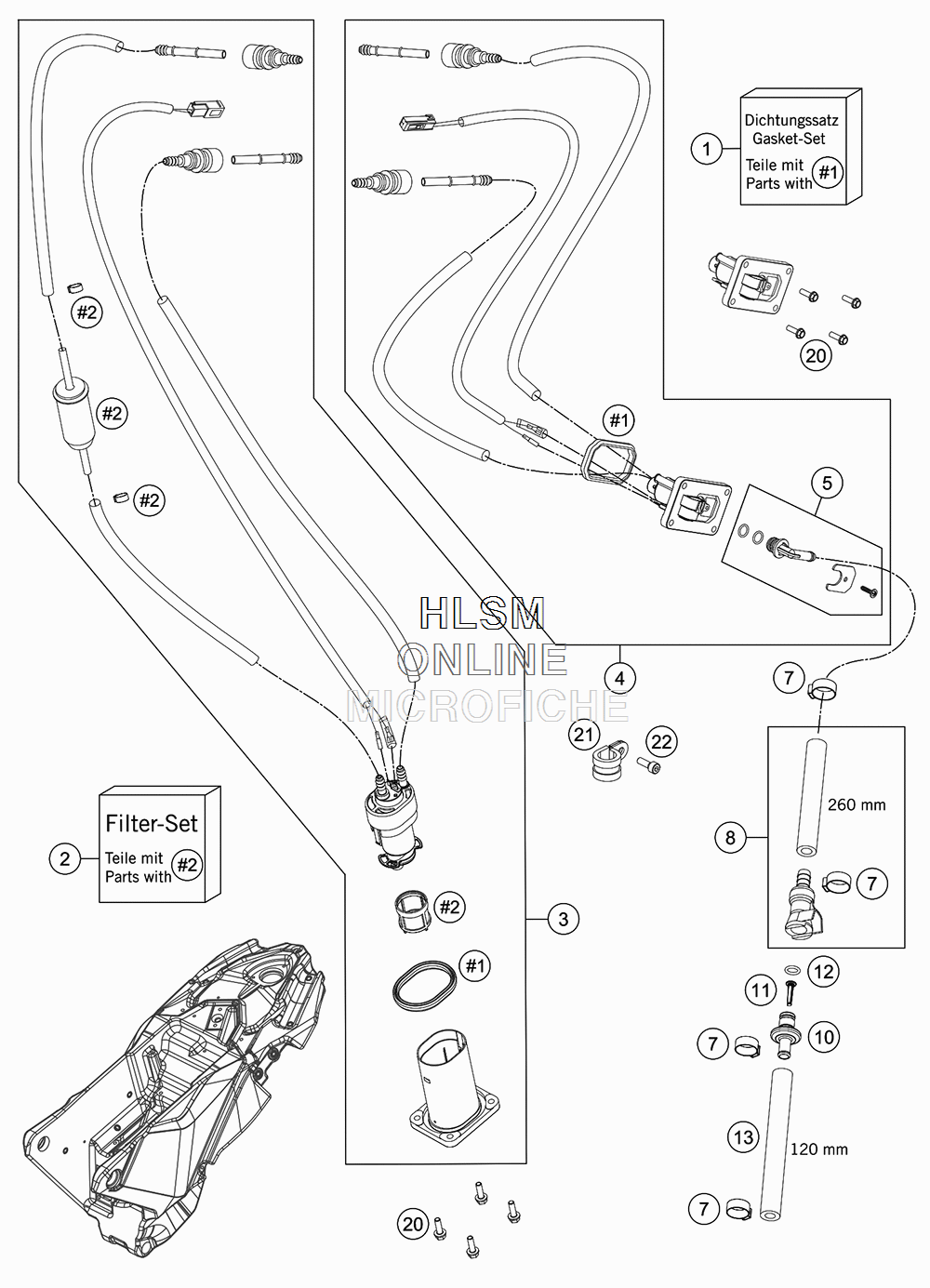

FUEL PUMP для Ktm 690 ENDURO R - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    75007089000 SEALINGS KIT
    SEALINGS KIT
  • 2
    81207090000 FILTER KIT
    FILTER KIT
  • 3
    75007088111 FUEL PUMP WITH FLANGE CPL.
    FUEL PUMP WITH FLANGE CPL.
  • 4
    75007088012 PRESSURE REGULATOR CPL.
    PRESSURE REGULATOR CPL.
  • 5
    75007092000 HYDRAULIC CONNECTOR CPL.
    HYDRAULIC CONNECTOR CPL.
  • 7
    00050157706 VARIABLE ONE-EAR CLAMP 15,7MM
    VARIABLE ONE-EAR CLAMP 15,7MM
  • 8
    75007116060 FUEL HOSE WITH CLUTCH
    FUEL HOSE WITH CLUTCH
  • 10
    77707010000 CONNECTOR FUEL PUMP
    CONNECTOR FUEL PUMP
  • 11
    78141013190 FUEL FILTER
    FUEL FILTER
  • 12
    58507012000 O-RING VITON F. PLUG CPC
    O-RING VITON F. PLUG CPC
  • 13
    60007316120 FUEL HOSE 7,5X3,5 L=120
    FUEL HOSE 7,5X3,5 L=120
  • 20
    0025050206 HH COLLAR SCREW M5X20
    HH COLLAR SCREW M5X20
  • 21
    49007439000 CLAMP RSGU 15/12
    CLAMP RSGU 15/12
  • 22
    0009050086 EJOT SPIRAL SCREW SF M5X8-K
    EJOT SPIRAL SCREW SF M5X8-K
