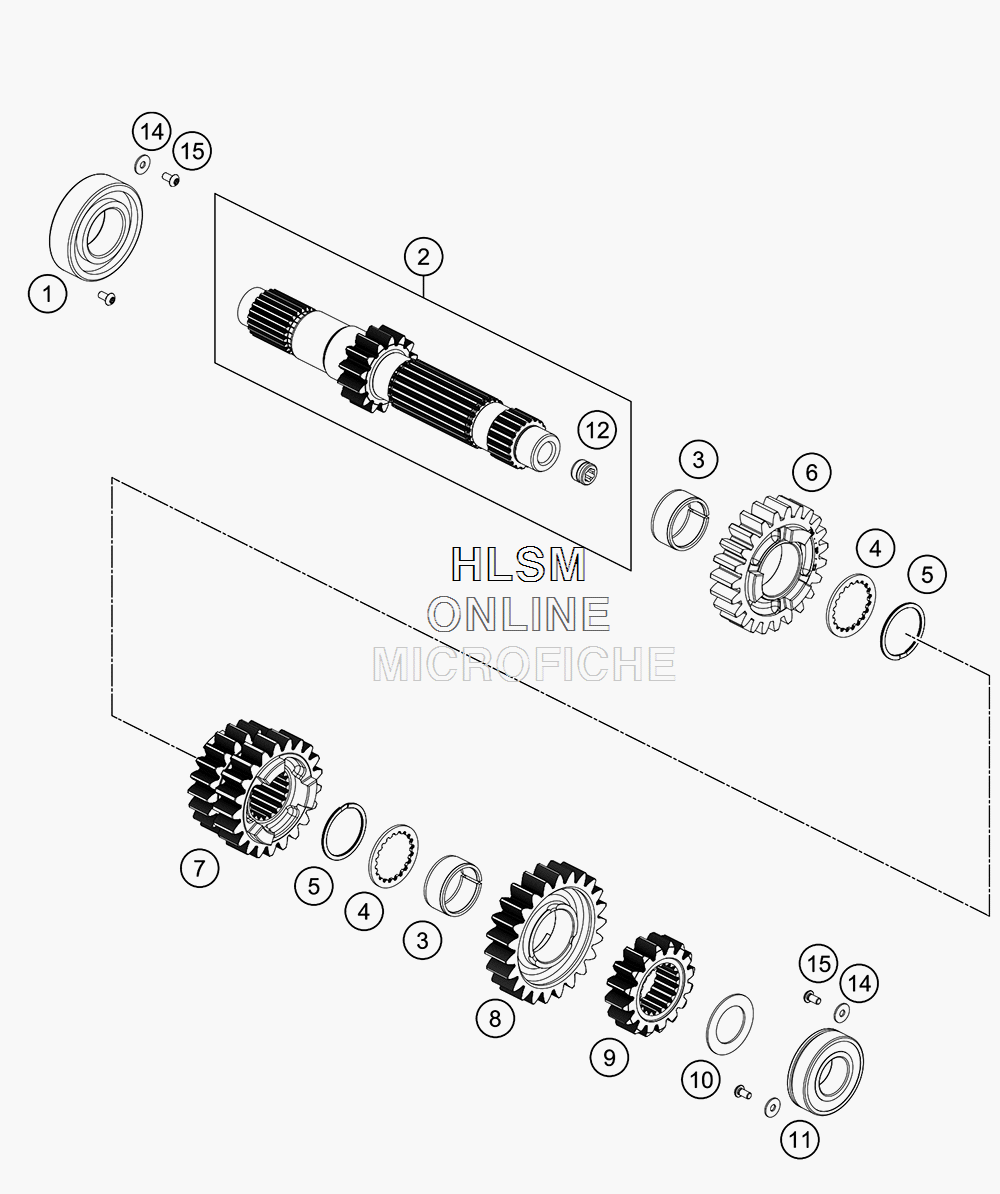

TRANSMISSION - MAIN SHAFT для Ktm 690 DUKE WHITE - 2017 года выпуска`
-
№АртикулНазвание
-
106252858161 BALL BEARING 58/28 C4 NBALL BEARING 58/28 C4 N
-
276633001000 MAIN SHAFT CPL.MAIN SHAFT CPL.
-
30405242813G NEEDLE BEAR.K 24X28X13 DIVIDEDNEEDLE BEAR.K 24X28X13 DIVIDED
-
476633040000 STOP DISK 24.6X33X1.5STOP DISK 24.6X33X1.5
-
50471027000 CIRCLIP XDNS-27CIRCLIP XDNS-27
-
676633005000 IDLER GEAR 5. GEARIDLER GEAR 5. GEAR
-
776633003000 SLIDING GEAR 3./4. GEARSLIDING GEAR 3./4. GEAR
-
876633006000 IDLER GEAR 6. GEARIDLER GEAR 6. GEAR
-
976633002000 SOLID GEAR 2. GEARSOLID GEAR 2. GEAR
-
1059033080000 SHIM 20X32X1SHIM 20X32X1
-
110625060044 BALL BEARING 6004 DDUN C4BALL BEARING 6004 DDUN C4
-
1277333001160 GUIDE BUSHINGGUIDE BUSHING
-
140021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
15073800501002 PAN HEAD SCREW M5X10 TX25PAN HEAD SCREW M5X10 TX25
