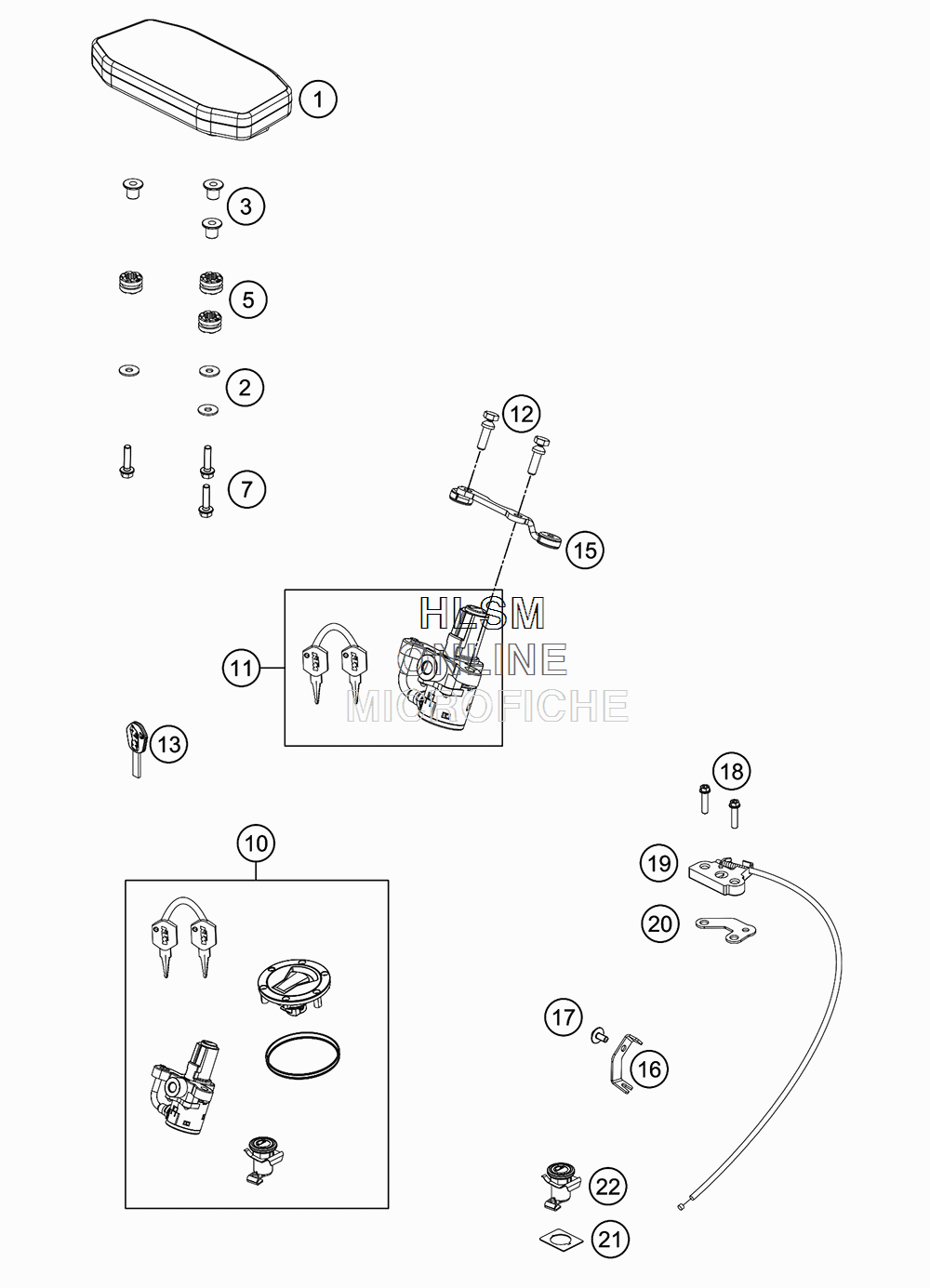

INSTRUMENTS / LOCK SYSTEM для Ktm 690 DUKE WHITE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    76014269000 INSTRUMENT PACK
    INSTRUMENT PACK
  • 2
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 3
    76014069050 COLLAR BUSHING 5,5X9X15X11,5
    COLLAR BUSHING 5,5X9X15X11,5
  • 5
    61314069051 DAMP. COMPONENT SPEEDOMETER
    DAMP. COMPONENT SPEEDOMETER
  • 7
    0025050206 HH COLLAR SCREW M5X20
    HH COLLAR SCREW M5X20
  • 10
    76011066044 LOCK SET
    LOCK SET
  • 11
    76011066000 IGNITION + STEERING LOCK
    IGNITION + STEERING LOCK
  • 12
    76011064000 TAMPERPROOF SCREW M6 IGN.LOCK
    TAMPERPROOF SCREW M6 IGN.LOCK
  • 13
    76011067100 BLANK KEY 690
    BLANK KEY 690
  • 15
    76011066095 ALU PLATE IGNITION LOCK COVER
    ALU PLATE IGNITION LOCK COVER
  • 16
    76007051000 SEAT LOCK BRACKET
    SEAT LOCK BRACKET
  • 17
    0024060123 COLLAR SCREW M6X12
    COLLAR SCREW M6X12
  • 18
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 19
    76007050050 SEAT LOCKING MECHANISM
    SEAT LOCKING MECHANISM
  • 20
    76007052000 BRACKET SEAT LOCKING MECHANISM
    BRACKET SEAT LOCKING MECHANISM
  • 21
    76007053000 ANTI-ROTATION ELEMENT SEATLOCK
    ANTI-ROTATION ELEMENT SEATLOCK
  • 22
    76007050000 SEAT LOCK
    SEAT LOCK
