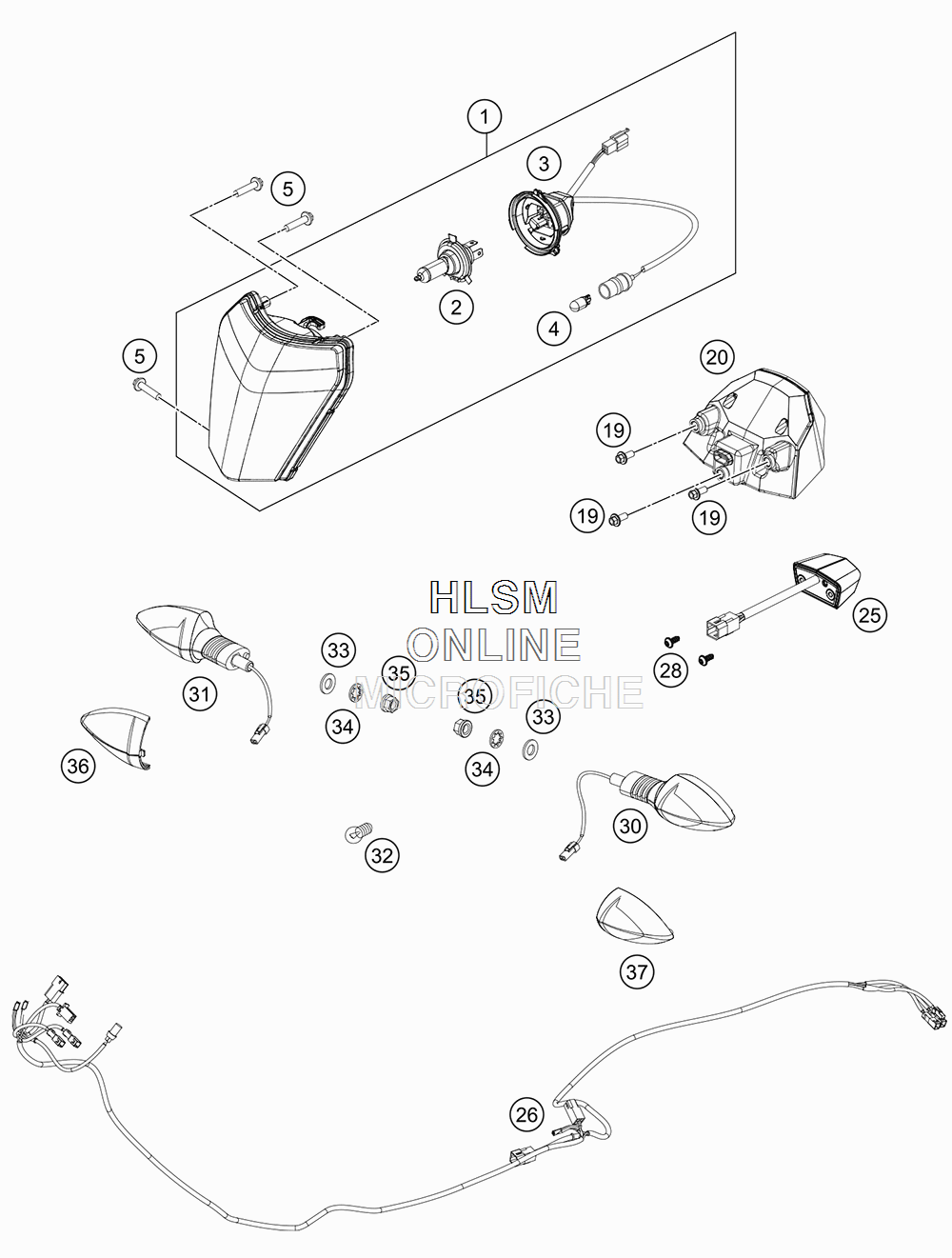

LIGHTING SYSTEM для Ktm 500 EXC-F - 2017 года выпуска`
-
№АртикулНазвание
-
178114001000 HEAD LIGHT CPL.HEAD LIGHT CPL.
-
254611038012 BULB HS1 12V 35/35W WHITEBULB HS1 12V 35/35W WHITE
-
378114001050 LAMP BRACKET CPL.LAMP BRACKET CPL.
-
449011435100 BULB 12V 5W (W2,1X9,5D) PHIL.BULB 12V 5W (W2,1X9,5D) PHIL.
-
50081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
190025050126 HH COLLAR SCREW M5X12HH COLLAR SCREW M5X12
-
2078114140000 REAR LIGHT USAREAR LIGHT USA
-
2560314047000 NUMBER PLATE LIGHTNUMBER PLATE LIGHT
-
2677711081100 TURN SIGNAL WIRING HARNESSTURN SIGNAL WIRING HARNESS
-
280081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
3078114025000 FLASHER CPL.FRONT L/S REAR R/SFLASHER CPL.FRONT L/S REAR R/S
-
3178114026000 FLASHER CPL.FRONT R/S REAR L/SFLASHER CPL.FRONT R/S REAR L/S
-
3244111015100 BULB 12V 10WBULB 12V 10W
-
330125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
340797100003 LOCK WASHER DIN6797-J10,5 ZILOCK WASHER DIN6797-J10,5 ZI
-
3558414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
3678114028000 FLASHER LENS L/S R/S TRANSP.FLASHER LENS L/S R/S TRANSP.
-
3778114027000 FLASHER LENS FRO.L/S-REAR R/SFLASHER LENS FRO.L/S-REAR R/S
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER
- BALANCER SHAFT
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- DECAL
- ELECTRIC STARTER
- ENGINE CASE
- EVAPORATIVE CANISTER
- EXHAUST SYSTEM
- FRAME
- FRONT FORK DISASSEMBLED
- FRONT FORK- TRIPLE CLAMP
- FRONT WHEEL
- FUEL PUMP
- HAND BRAKE CYLINDER
- HANDLEBAR- CONTROLS
- IGNITION SYSTEM
- INSTRUMENTS / LOCK SYSTEM
- • LIGHTING SYSTEM
- LUBRICATING SYSTEM
- MASK- FENDERS
- REAR BRAKE CONTROL
- REAR WHEEL
- SHIFTING MECHANSIM
- SHOCK ABSORBER
- SHOCK ABSORBER DISASSEMBLED
- SIDE / CENTER STAND
- SWING ARM
- TANK- SEAT- COVER
- THROTTLE BODY
- TIMING DRIVE
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
- VALVE DRIVE
- WATER PUMP
- WIRING HARNESS
- WP SHIMS FOR SETTING
