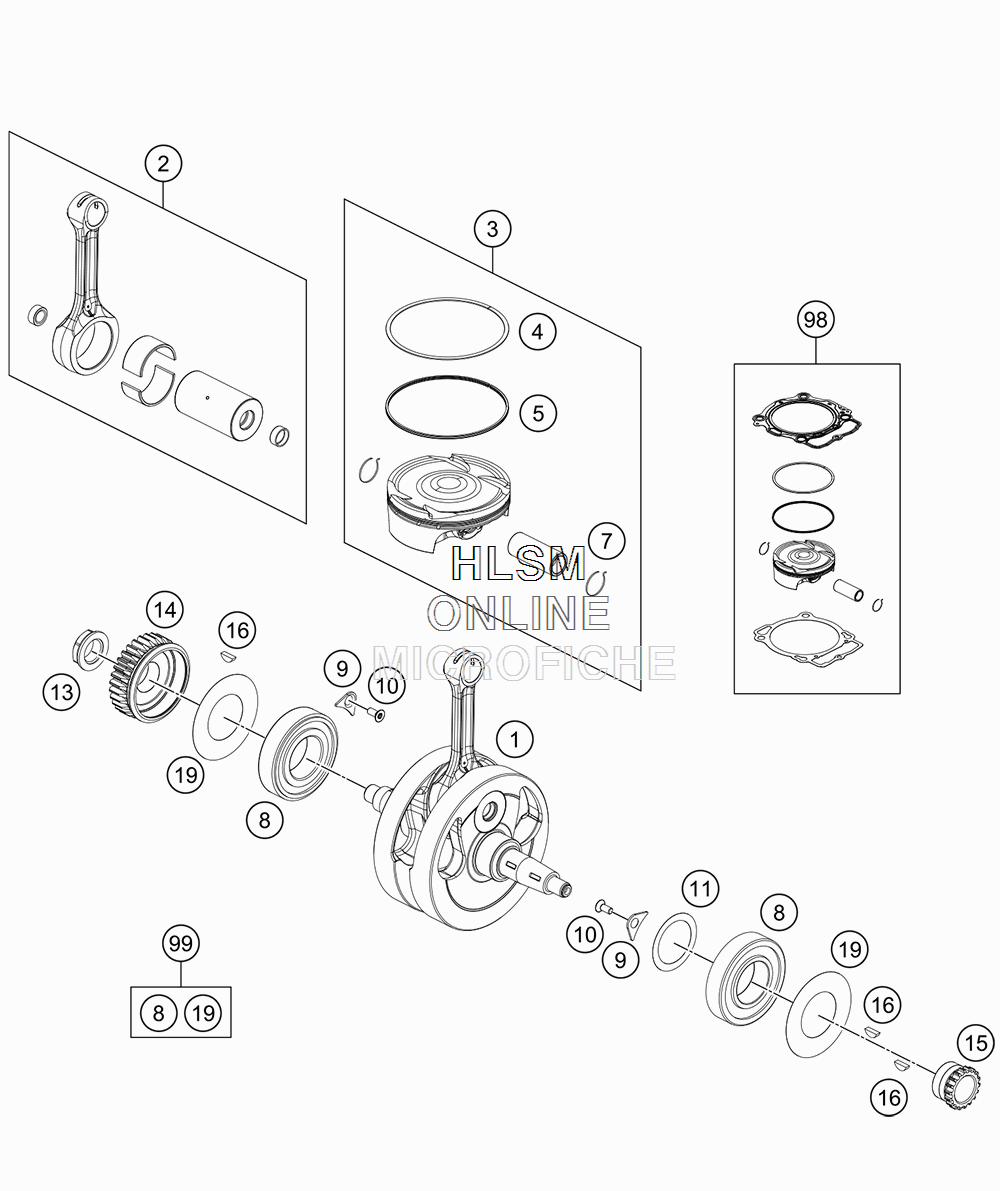

CRANKSHAFT - PISTON для Ktm 500 EXC-F - 2017 года выпуска

№

Артикул

Название
1

79630018000 CRANKSHA FT CPL.

CRANKSHA FT CPL.

170 ₽
2

79630015044 CONROD REPAIR KIT

CONROD REPAIR KIT

120 760 ₽
3

79630007000I PISTON I CPL.

PISTON I CPL.

109 280 ₽
3

79630007000II PISTON II CPL.

PISTON II CPL.

109 280 ₽
4

78930030000 COMPRESSION RING

COMPRESSION RING

9 790 ₽
5

78930032000 OIL SCRAPER RING

OIL SCRAPER RING

14 170 ₽
7

78930074000 CIRCLIP

CIRCLIP

5 200 ₽
8

79430082000 CYLINDER ROLLER BEARING NJ207

CYLINDER ROLLER BEARING NJ207

24 590 ₽
9

75030085000 RETAINING PLATE F. CS BEARING

RETAINING PLATE F. CS BEARING

1 140 ₽
10

0019050121S INT. TORX FLAT HEAD M5X12 T25

INT. TORX FLAT HEAD M5X12 T25

290 ₽
11

56530081000 SHIM WASHER 36X48X0,10

SHIM WASHER 36X48X0,10

350 ₽
11

56530081100 SHIM WASHER 36X48X0,15

SHIM WASHER 36X48X0,15

350 ₽
11

56530081200 SHIM WASHER 36X48X0,20 STEEL

SHIM WASHER 36X48X0,20 STEEL

350 ₽
11

56530081300 SHIM WASHER 36X48X0,30

SHIM WASHER 36X48X0,30

350 ₽
13

78030029200 NUT PRIMARY WHEEL M20X1,5

NUT PRIMARY WHEEL M20X1,5

1 870 ₽
14

79432023031 PRIMARY GEAR 31T

PRIMARY GEAR 31T

22 250 ₽
15

78036014200 TIMING GEAR 18T.

TIMING GEAR 18T.

9 410 ₽
16

0888030037 WOODRUFF KEY DIN6888-3X3,7

WOODRUFF KEY DIN6888-3X3,7

290 ₽
19

79430084000 BEARING SEAL

BEARING SEAL

1 870 ₽
98

79630007010I PISTON KIT I 500 EXC-F

PISTON KIT I 500 EXC-F

125 360 ₽
98

79630007010II PISTON KIT II 500 EXC-F

PISTON KIT II 500 EXC-F

125 360 ₽
99

00050002315 CRANKSHAFT REP.KIT

CRANKSHAFT REP.KIT

42 050 ₽
