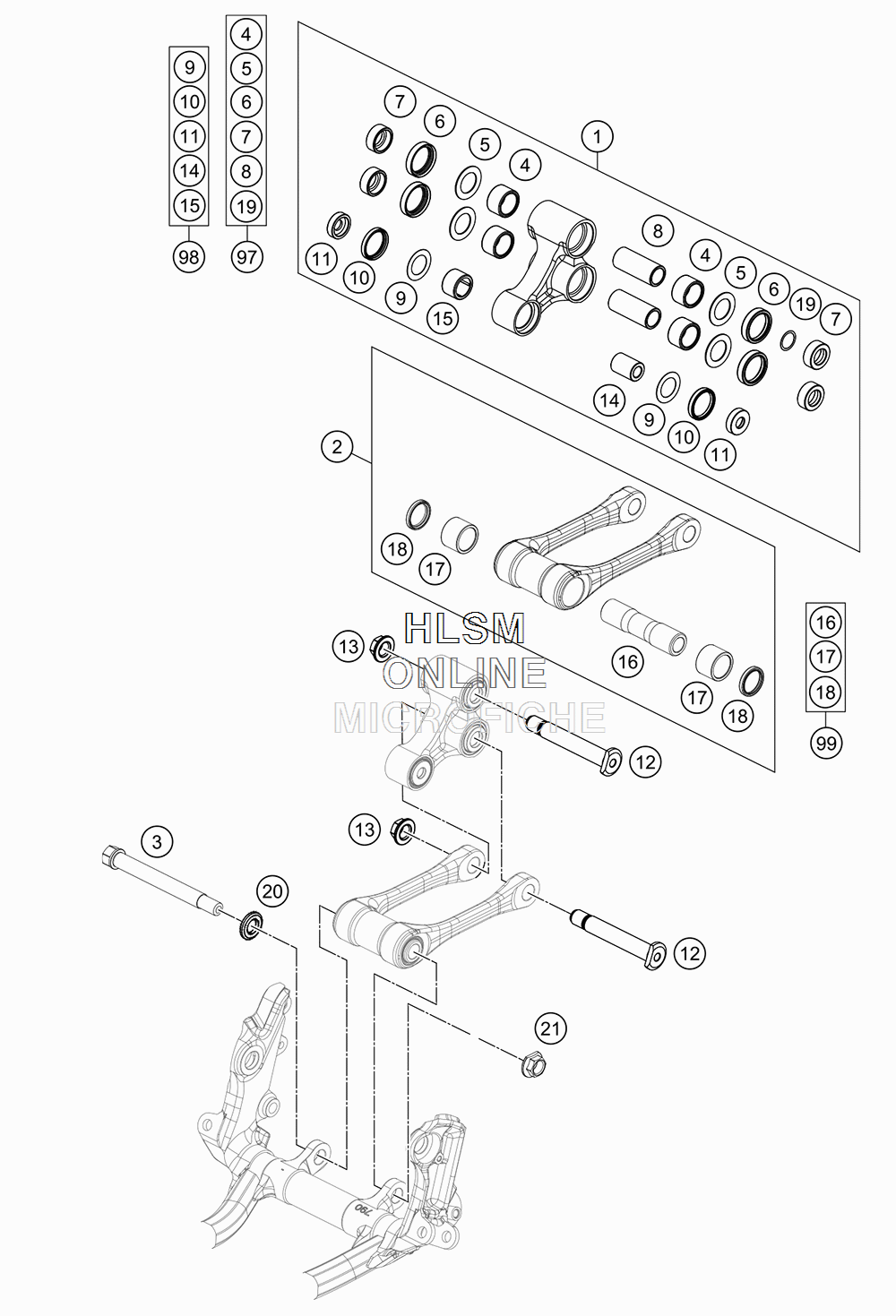

PRO LEVER LINKING для Ktm 300 XC - 2017 года выпуска`
-
№АртикулНазвание
-
17900408014401 TRIANGLE LEVER CPL.TRIANGLE LEVER CPL.
-
27900408304401 PULLROD CPL. SX 2016PULLROD CPL. SX 2016
-
377404084000 BOLT TIE-ROD BEARING M14BOLT TIE-ROD BEARING M14
-
454603097000 NEEDLE BUSH HKNEEDLE BUSH HK
-
559033080000 SHIM 20X32X1SHIM 20X32X1
-
60760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
777204080130 BUCKET SHAFT SEAL RING 25X11BUCKET SHAFT SEAL RING 25X11
-
854603081000 BUSHING SLEEVE 15 X 20 X 48BUSHING SLEEVE 15 X 20 X 48
-
950180604 SHIM D29,75 X D19 X T0,4SHIM D29,75 X D19 X T0,4
-
100760243050 SHAFT SEAL RING 24X30X5SHAFT SEAL RING 24X30X5
-
1177204080020 BUCKET FOR SHAFT SEAL RINGBUCKET FOR SHAFT SEAL RING
-
1277204085000 BOLT FOR CANTILEVER M14BOLT FOR CANTILEVER M14
-
1377204087000 HEX NUT M14X1.5 SW17HEX NUT M14X1.5 SW17
-
1477204080010 BEARING SLEEVE 10X18X25,5BEARING SLEEVE 10X18X25,5
-
150618182416 NEEDLE BUSH HN1816 RS 18/24/16NEEDLE BUSH HN1816 RS 18/24/16
-
1679004084010 BEARING SLEEVE F. TIE-RODBEARING SLEEVE F. TIE-ROD
-
170618222820 NEEDLE BEARING HK2220 22X28X20NEEDLE BEARING HK2220 22X28X20
-
180760222841 SHAFT SEAL RING G22X28X4SHAFT SEAL RING G22X28X4
-
1954603090010 STEEL WASHER 15,2X19X0,1STEEL WASHER 15,2X19X0,1
-
1954603090020 STEEL WASHER 15,2X19X0,2STEEL WASHER 15,2X19X0,2
-
1954603090030 STEEL WASHER 15,2X19X0,3STEEL WASHER 15,2X19X0,3
-
2077404084010 WASHER TIE-ROD BEARING M14WASHER TIE-ROD BEARING M14
-
2177404084120 HEX NUT M14X1.5 SW17HEX NUT M14X1.5 SW17
-
9777204080110 TRIANGLE LEVER REP. KIT REARTRIANGLE LEVER REP. KIT REAR
-
9877204080090 TRIANGLE LEVER REP. KIT FRONTTRIANGLE LEVER REP. KIT FRONT
-
9979004083010 PULL ROD REP. KIT SX-FPULL ROD REP. KIT SX-F
