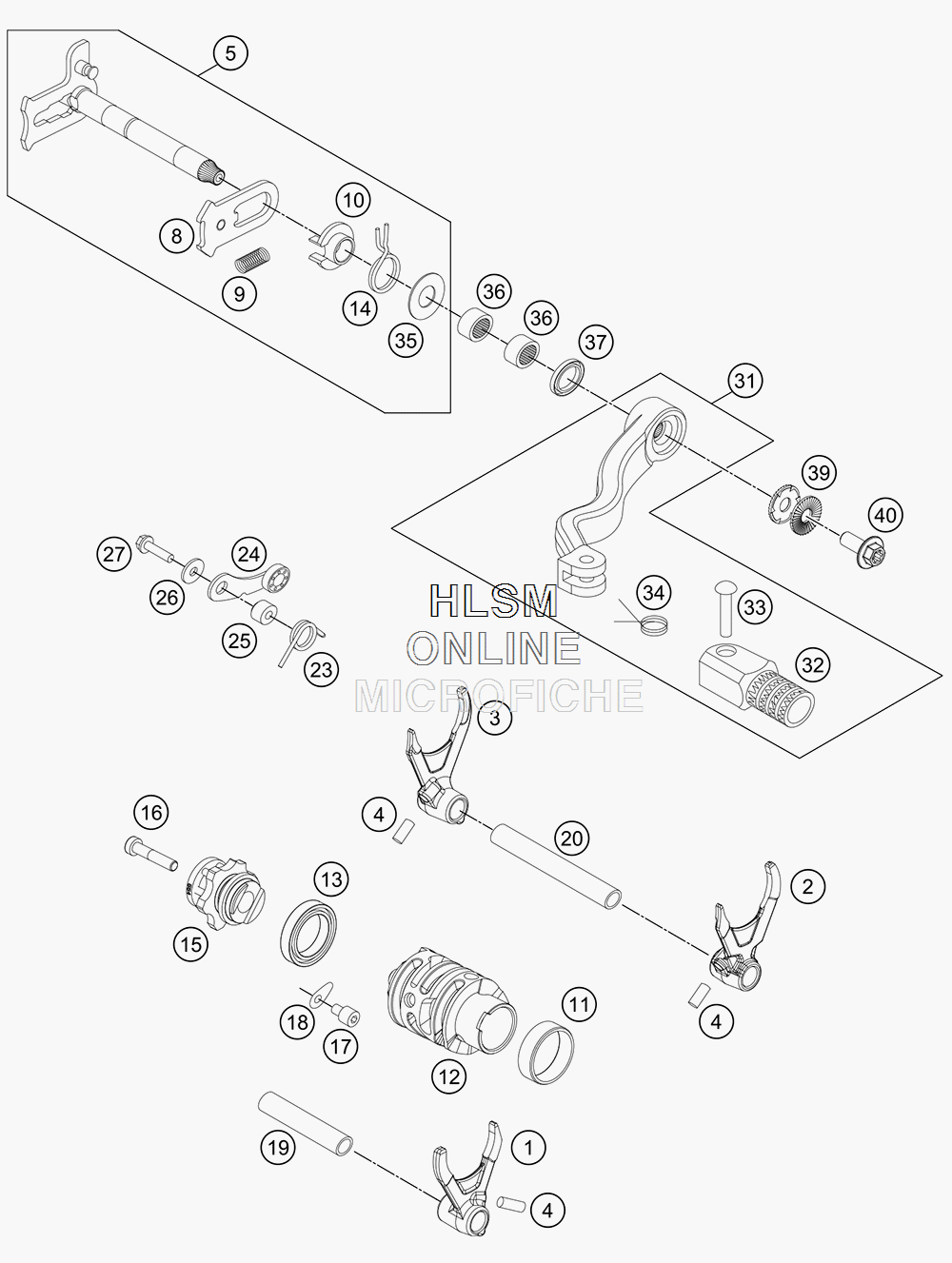

SHIFTING MECHANISM для Ktm 300 XC - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    79234101000 SHIFT FORK 5.-6. GEAR
    SHIFT FORK 5.-6. GEAR
  • 2
    79234102000 SHIFT FORK 2.-4. GEAR
    SHIFT FORK 2.-4. GEAR
  • 3
    79234103000 SHIFT FORK 1.-3. GEAR
    SHIFT FORK 1.-3. GEAR
  • 4
    0402061480 NEEDLE ROLLER DIN5402 6X14,8
    NEEDLE ROLLER DIN5402 6X14,8
  • 5
    55434005133 SHIFT SHAFT CPL.
    SHIFT SHAFT CPL.
  • 8
    61234008044 SLIDING PLATE
    SLIDING PLATE
  • 9
    56534013100 TENSIONING SPRING 0,8MM
    TENSIONING SPRING 0,8MM
  • 10
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 11
    79234012010 FRICTION BEARING CONTROLLER
    FRICTION BEARING CONTROLLER
  • 12
    79234112000 SHIFT ROLLER
    SHIFT ROLLER
  • 13
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 14
    54834014000 RETURN SPRING
    RETURN SPRING
  • 15
    55434015000 GEARSHIFT CPL.
    GEARSHIFT CPL.
  • 16
    0984060302 AH SCREW DIN6912 M 6X30
    AH SCREW DIN6912 M 6X30
  • 17
    0019050106S INT. TORX FLAT HEAD M5X10 10.9
    INT. TORX FLAT HEAD M5X10 10.9
  • 18
    75030085000 RETAINING PLATE F. CS BEARING
    RETAINING PLATE F. CS BEARING
  • 19
    54834019000 SHIFT. RAIL MAIN SHAFT 250/300
    SHIFT. RAIL MAIN SHAFT 250/300
  • 20
    77034019000 SHIFTING MAIN L=93MM
    SHIFTING MAIN L=93MM
  • 23
    55434023100 LOCKING LEVER SPRING
    LOCKING LEVER SPRING
  • 24
    55434024000 LOCKING LEVER CPL.
    LOCKING LEVER CPL.
  • 25
    54634052300 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 26
    0349000050 WASHER DIN7349-5X15X2
    WASHER DIN7349-5X15X2
  • 27
    0025050206 HH COLLAR SCREW M5X20
    HH COLLAR SCREW M5X20
  • 31
    55434031000 SHIFTING SHAFT CPL.
    SHIFTING SHAFT CPL.
  • 32
    54634131000 STEP PLATE FOR SHIFT LEVER 250
    STEP PLATE FOR SHIFT LEVER 250
  • 33
    54634031050 BOLT 6X25 FOR SHIFT LEVER
    BOLT 6X25 FOR SHIFT LEVER
  • 34
    54634032100 SHIFTING LEVER SPRING 250
    SHIFTING LEVER SPRING 250
  • 35
    54634050000 STOP DISK 14X30X1
    STOP DISK 14X30X1
  • 36
    54632095000 NEEDLE BEAR.HK 1412 14X20X12
    NEEDLE BEAR.HK 1412 14X20X12
  • 37
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 39
    50233041500 PAIR NORDLOCK WASHER M6
    PAIR NORDLOCK WASHER M6
  • 40
    0024060156S HH COLLAR SCREW M6X15 TORX30
    HH COLLAR SCREW M6X15 TORX30
