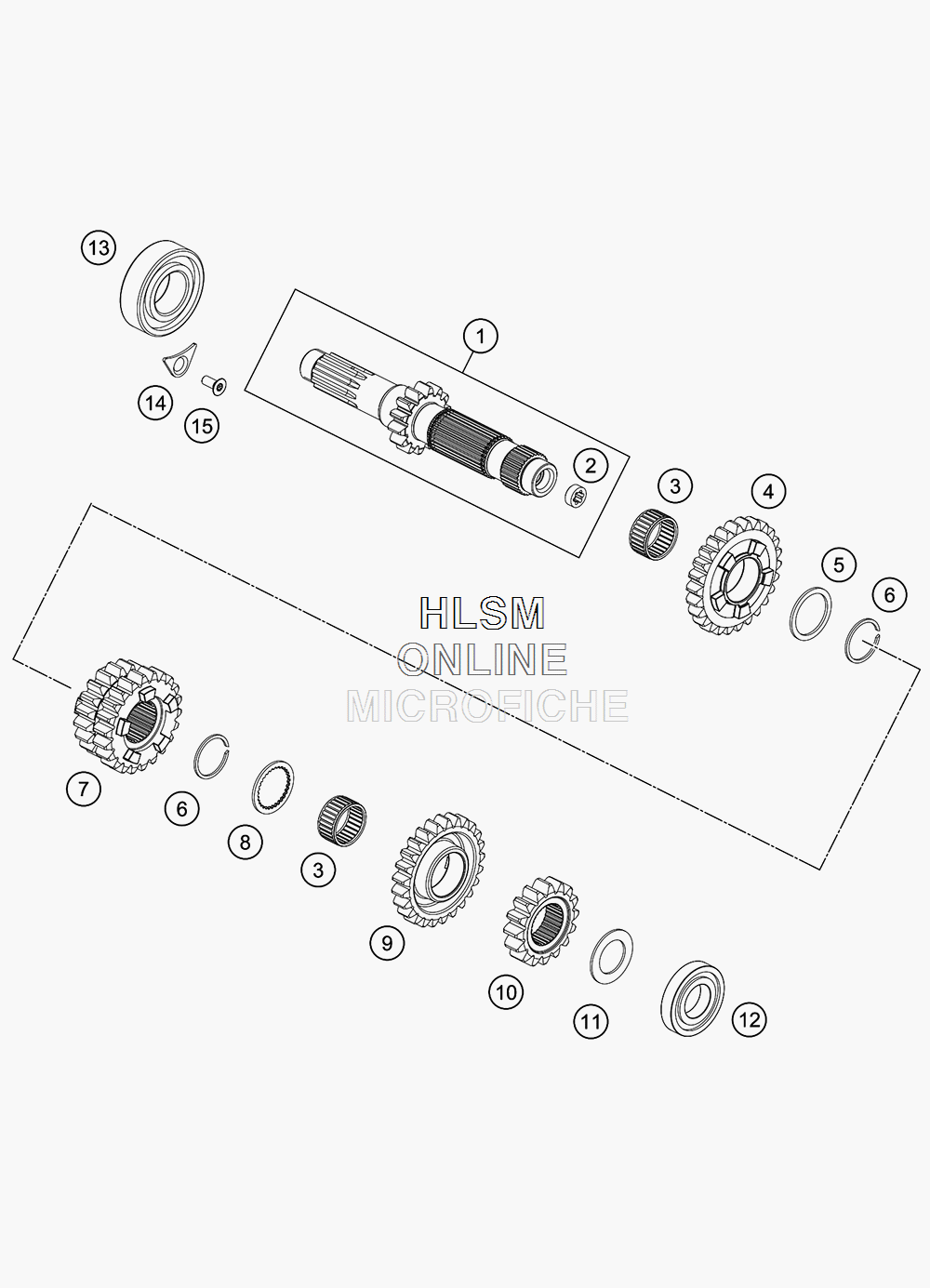

TRANSMISSION I - MAIN SHAFT для Ktm 300 XC-WSD - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    77233101000 MAIN SHAFT CPL. 14 T.
    MAIN SHAFT CPL. 14 T.
  • 2
    78033001110 BUSHING
    BUSHING
  • 3
    0405222613 NEEDLE BEAR. K 22X26X13 TN
    NEEDLE BEAR. K 22X26X13 TN
  • 4
    54833206000 IDLER GEAR 6. G, Z=26
    IDLER GEAR 6. G, Z=26
  • 5
    54833044000 STOP DISC 25X31X1,5
    STOP DISC 25X31X1,5
  • 6
    0417024000 CIRCLIP WS24
    CIRCLIP WS24
  • 7
    79233103000 SLIDING GEAR 3./4.G. Z=20/22
    SLIDING GEAR 3./4.G. Z=20/22
  • 8
    54833043000 STOP DISC 25X0,8X30X30X7H
    STOP DISC 25X0,8X30X30X7H
  • 9
    54833205000 IDLER GEAR 5.G, Z =25
    IDLER GEAR 5.G, Z =25
  • 10
    54833202000 SOLID GEAR
    SOLID GEAR
  • 10
    77233015000 DISK 20,2X32X1,3
    DISK 20,2X32X1,3
  • 12
    0625160040 GROOVED BALL BEAR. TM 16004 C3
    GROOVED BALL BEAR. TM 16004 C3
  • 13
    0625062054 BALL BEARING 6205 C3 NTN
    BALL BEARING 6205 C3 NTN
  • 14
    75030085000 RETAINING PLATE F. CS BEARING
    RETAINING PLATE F. CS BEARING
  • 15
    0019050121S INT. TORX FLAT HEAD M5X12 T25
    INT. TORX FLAT HEAD M5X12 T25
