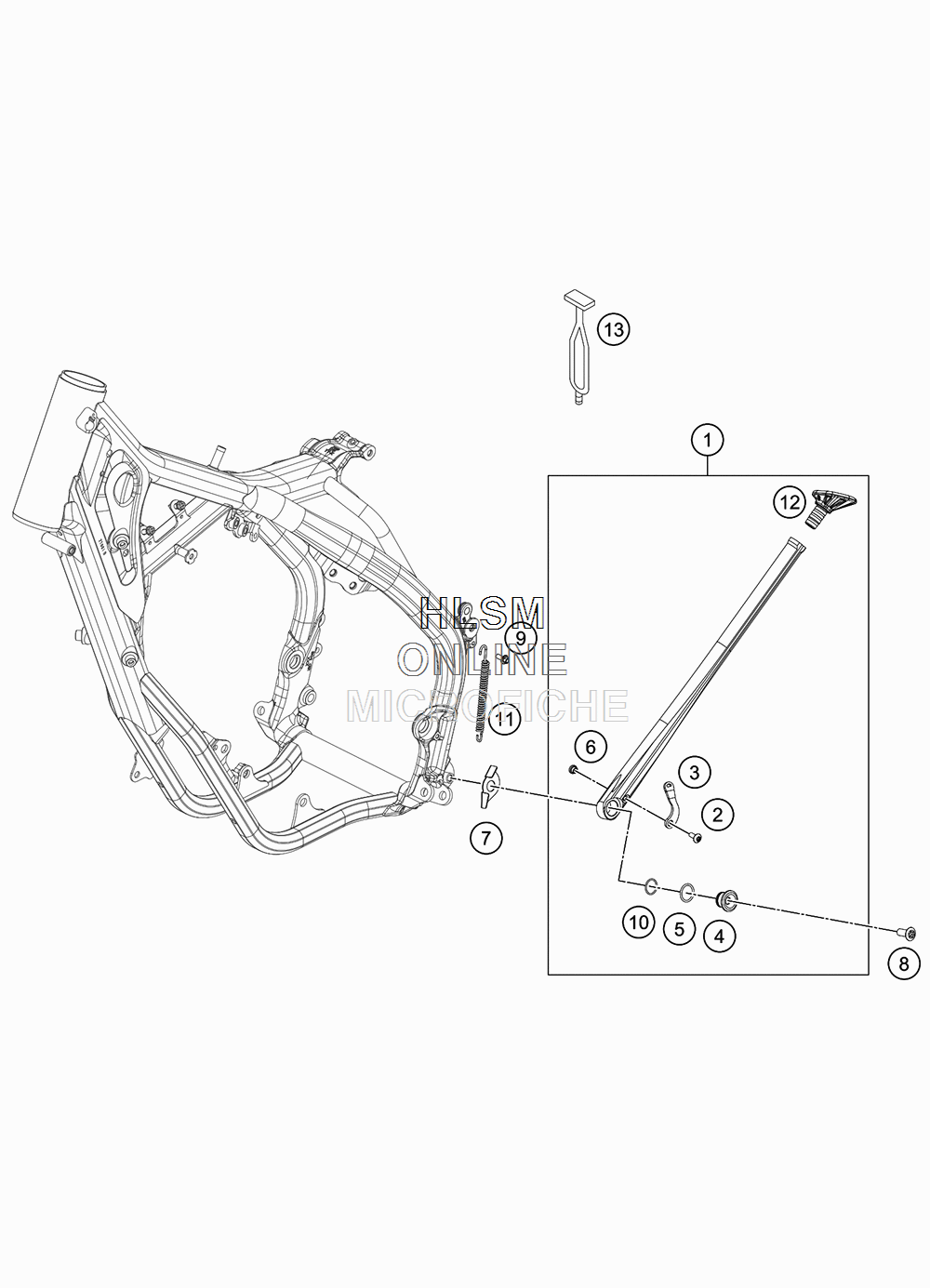

SIDE / CENTER STAND для Ktm 300 XC-WSD - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    79003023044 SIDE STAND CPL.
    SIDE STAND CPL.
  • 2
    58605083014 SCREW M5X14 TORX 25
    SCREW M5X14 TORX 25
  • 3
    79003023090 SPRING BRACKET EXC 16
    SPRING BRACKET EXC 16
  • 4
    78003023081 SIDE STAND BUSHING EXC-EU
    SIDE STAND BUSHING EXC-EU
  • 5
    0770180020 O-RING 18,00X2,00 NBR 70
    O-RING 18,00X2,00 NBR 70
  • 6
    78003023070 SPACER BUSH. SPRING BRACKET
    SPACER BUSH. SPRING BRACKET
  • 7
    79003023050 SIDE STAND STOP PLATE
    SIDE STAND STOP PLATE
  • 8
    0019080266S COUNTER-SUNK SCREW ISA45 M8X26
    COUNTER-SUNK SCREW ISA45 M8X26
  • 9
    0014050123 HH COLLAR SCREW M 5X12
    HH COLLAR SCREW M 5X12
  • 10
    0770125015 O-RING 12,5X1,5 NBR
    O-RING 12,5X1,5 NBR
  • 11
    79003024000 SIDESTAND SPRING EXC
    SIDESTAND SPRING EXC
  • 12
    78003023155 STAND BASE
    STAND BASE
  • 13
    50303018000 RUBBER L=145MM
    RUBBER L=145MM
