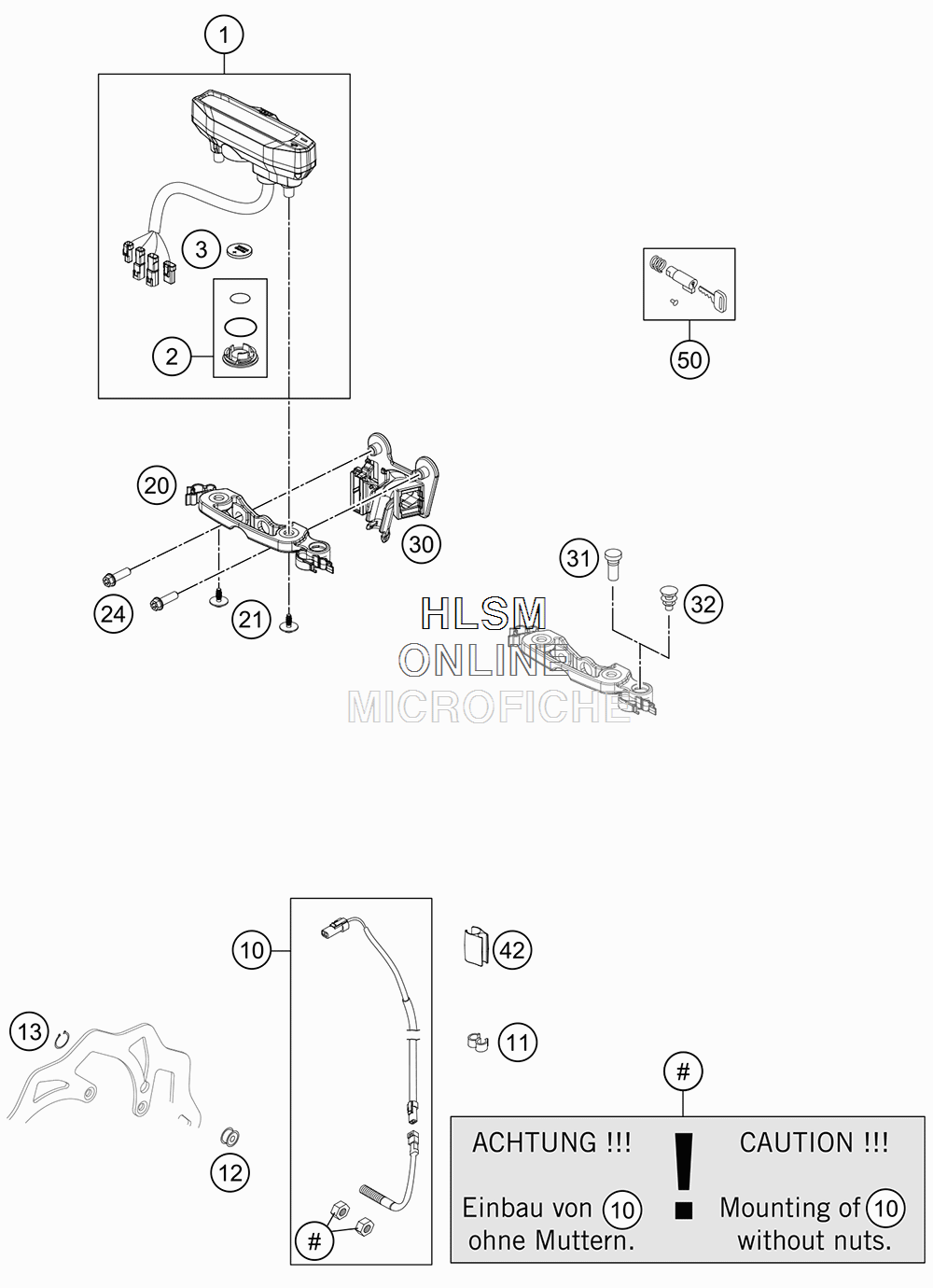

INSTRUMENTS / LOCK SYSTEM для Ktm 300 EXC-SD - 2017 года выпуска`
-
№АртикулНазвание
-
177714069400 TACHO DIGITAL KM/H F. 21"TACHO DIGITAL KM/H F. 21"
-
277714069010 BATTERY COVER F. SPEEDOMETERBATTERY COVER F. SPEEDOMETER
-
358314068000 BATTERY F. SPEEDOM. M.A.E.BATTERY F. SPEEDOM. M.A.E.
-
1054814068100 CABLE FOR DIGITAL SPEEDOM.CABLE FOR DIGITAL SPEEDOM.
-
1160111094000 CLIP 5/7 MMCLIP 5/7 MM
-
1254814069050 MAGNET FOR DIGITAL SPEEDOM.MAGNET FOR DIGITAL SPEEDOM.
-
130471009104 CIRCLIP DIN0471- 9X1CIRCLIP DIN0471- 9X1
-
2077714060000 SPEEDOMETER BRACKETSPEEDOMETER BRACKET
-
210081645121 EJOT DELTA PT SCREW 45X12-ZEJOT DELTA PT SCREW 45X12-Z
-
240024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
3077711083000 SUPPORT BRACKETSUPPORT BRACKET
-
3158011024300 FLASHER INDICAT.LIGHT GREENFLASHER INDICAT.LIGHT GREEN
-
3250210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4254813026000 CABLE SUPPORT 10/6MMCABLE SUPPORT 10/6MM
-
5078003035000 STEERING HEAD LOCKSTEERING HEAD LOCK
