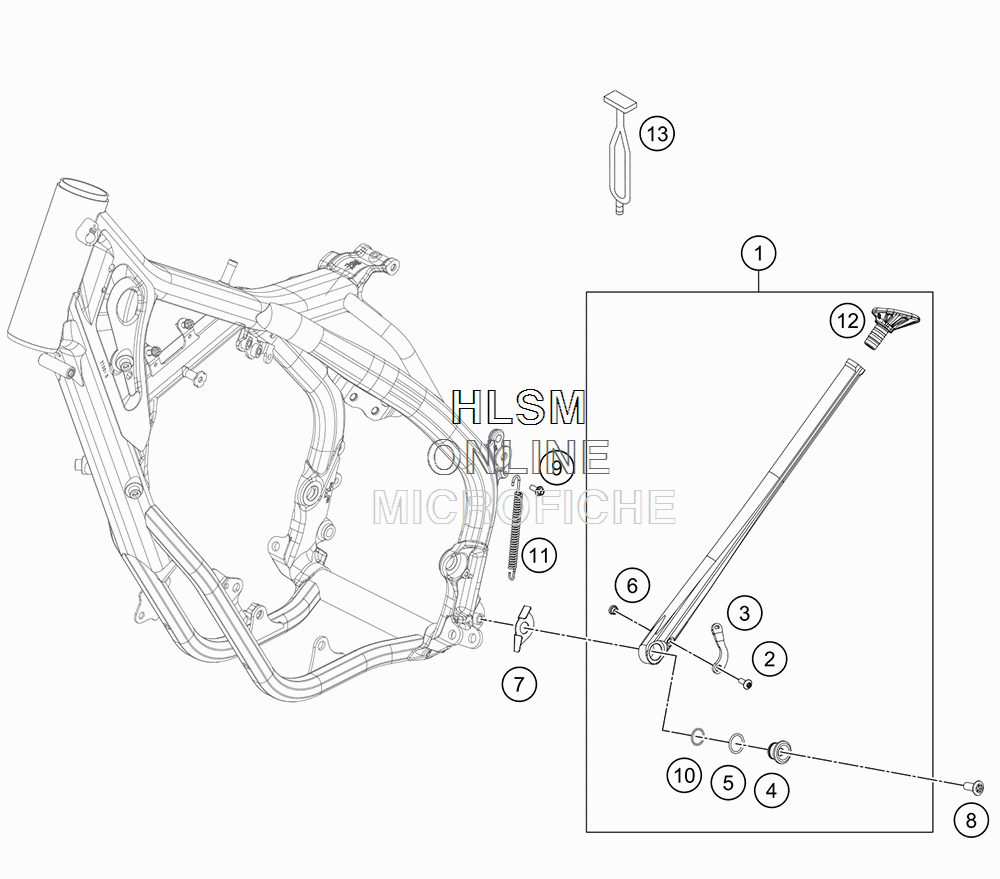

SIDE- / CENTER STAND для Ktm 300 EXC-SD - 2017 года выпуска
-
№АртикулНазвание
-
179003023044 SIDE STAND CPL.SIDE STAND CPL.
-
258605083014 SCREW M5X14 TORX 25SCREW M5X14 TORX 25
-
379003023090 SPRING BRACKET EXC 16SPRING BRACKET EXC 16
-
478003023081 SIDE STAND BUSHING EXC-EUSIDE STAND BUSHING EXC-EU
-
50770180020 O-RING 18,00X2,00 NBR 70O-RING 18,00X2,00 NBR 70
-
678003023070 SPACER BUSH. SPRING BRACKETSPACER BUSH. SPRING BRACKET
-
779003023050 SIDE STAND STOP PLATESIDE STAND STOP PLATE
-
80019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
90014050123 HH COLLAR SCREW M 5X12HH COLLAR SCREW M 5X12
-
100770125015 O-RING 12,5X1,5 NBRO-RING 12,5X1,5 NBR
-
1179003024000 SIDESTAND SPRINGSIDESTAND SPRING
-
1278003023155 STAND BASESTAND BASE
-
1350303018000 RUBBER L=145MMRUBBER L=145MM
