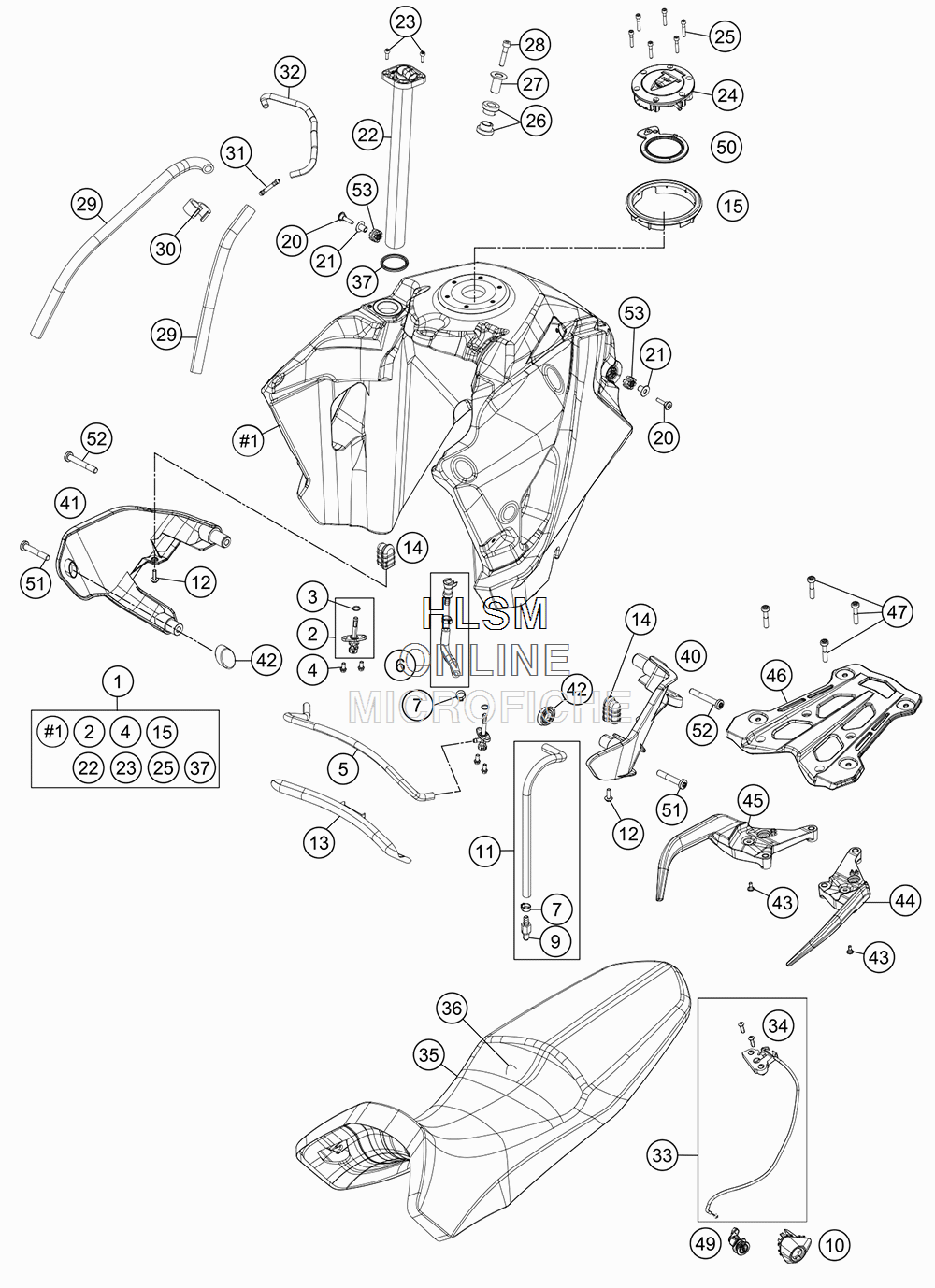

TANK- SEAT- COVER для Ktm 1090 ADVENTURE - 2017 года выпуска`
-
№АртикулНазвание
-
16060701314430 FUEL TANK ADV . CPL.FUEL TANK ADV . CPL.
-
258507003200 FUEL COCK CPL.FUEL COCK CPL.
-
30770020130 O-RING 1,78X10,82X14,38 2-013O-RING 1,78X10,82X14,38 2-013
-
40025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
560007416510 FUEL HOSE 6,4X3,2 L=510MMFUEL HOSE 6,4X3,2 L=510MM
-
660307017000 FUEL HOSE TANK/CONNECTORFUEL HOSE TANK/CONNECTOR
-
700050157706 VARIABLE ONE-EAR CLAMP 15,7MMVARIABLE ONE-EAR CLAMP 15,7MM
-
95850701030030 PLUG CPC BLACKPLUG CPC BLACK
-
1060307053000 SEAT LOCK COVERSEAT LOCK COVER
-
1160307016050 FUEL PIPE 1FUEL PIPE 1
-
120024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1360307070000 BRACKET FUEL HOSEBRACKET FUEL HOSE
-
1460307020000 TANK RUBBERTANK RUBBER
-
1560307009000 TANK CAP RINGTANK CAP RING
-
2060307025000 SPECIAL SCREW M6X32.5 ISA 40SPECIAL SCREW M6X32.5 ISA 40
-
2169007028000 COLLAR BUSH. 6,2X10X21X14MMCOLLAR BUSH. 6,2X10X21X14MM
-
2260307080000 GAS LEVEL SENSORGAS LEVEL SENSOR
-
230912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
2460307008100 TANK CAPTANK CAP
-
250912050253 AH SCREW DIN0912-M 5X25AH SCREW DIN0912-M 5X25
-
2661007065000 TANK RUBBER BUSHING FRONTTANK RUBBER BUSHING FRONT
-
2761007060000 BEARING BUSHING OUTSIDEBEARING BUSHING OUTSIDE
-
280912080403 AH SCREW DIN912 M8X40AH SCREW DIN912 M8X40
-
2960007126001 HOSE 5,4X9,4 NBR, METERHOSE 5,4X9,4 NBR, METER
-
3060038039000 DISTANCE HOLDER 10/10 BLACKDISTANCE HOLDER 10/10 BLACK
-
3169015019010 HOSE CONNECTION STRAIGHTHOSE CONNECTION STRAIGHT
-
3260307008150 HOSE TANK BREAT.HOSE TANK BREAT.
-
3360307050000 SEAT LOCK CPL.SEAT LOCK CPL.
-
340738060201 FLAT HEAD SCREW ISO7380 M6X20FLAT HEAD SCREW ISO7380 M6X20
-
3560607040000 SEATSEAT
-
3660607140050 SEAT COVERSEAT COVER
-
3760307080090 GASKET FUEL LEVEL SENSORGASKET FUEL LEVEL SENSOR
-
406030702700033 TANK GUARD LEFT BLACKTANK GUARD LEFT BLACK
-
416030702800033 TANK GUARD RIGHT BLACKTANK GUARD RIGHT BLACK
-
4260307032000 DAMPERDAMPER
-
4369013099050 SCREW F. EXPANSION TANKSCREW F. EXPANSION TANK
-
446031200810030 GRIP L/S BLACKGRIP L/S BLACK
-
456031200920030 HAND GRIP R/SHAND GRIP R/S
-
466061201000030 BAGGAGE CARRIER BRIDGEBAGGAGE CARRIER BRIDGE
-
470035080506S AH-COLLAR SCREW M8X50 ISA45AH-COLLAR SCREW M8X50 ISA45
-
4960307050020 LOCK CYLINDER SEAT LOCKLOCK CYLINDER SEAT LOCK
-
5060307008190 GASKET TANK CAPGASKET TANK CAP
-
510035100609S AH-COLLAR SCREW M10X60 ISA45AH-COLLAR SCREW M10X60 ISA45
-
520035100709S AH-COLLAR SCREW M10X70 ISA45AH-COLLAR SCREW M10X70 ISA45
-
5369007027000 RUBBER SLEEVE TANK MOUNTRUBBER SLEEVE TANK MOUNT
