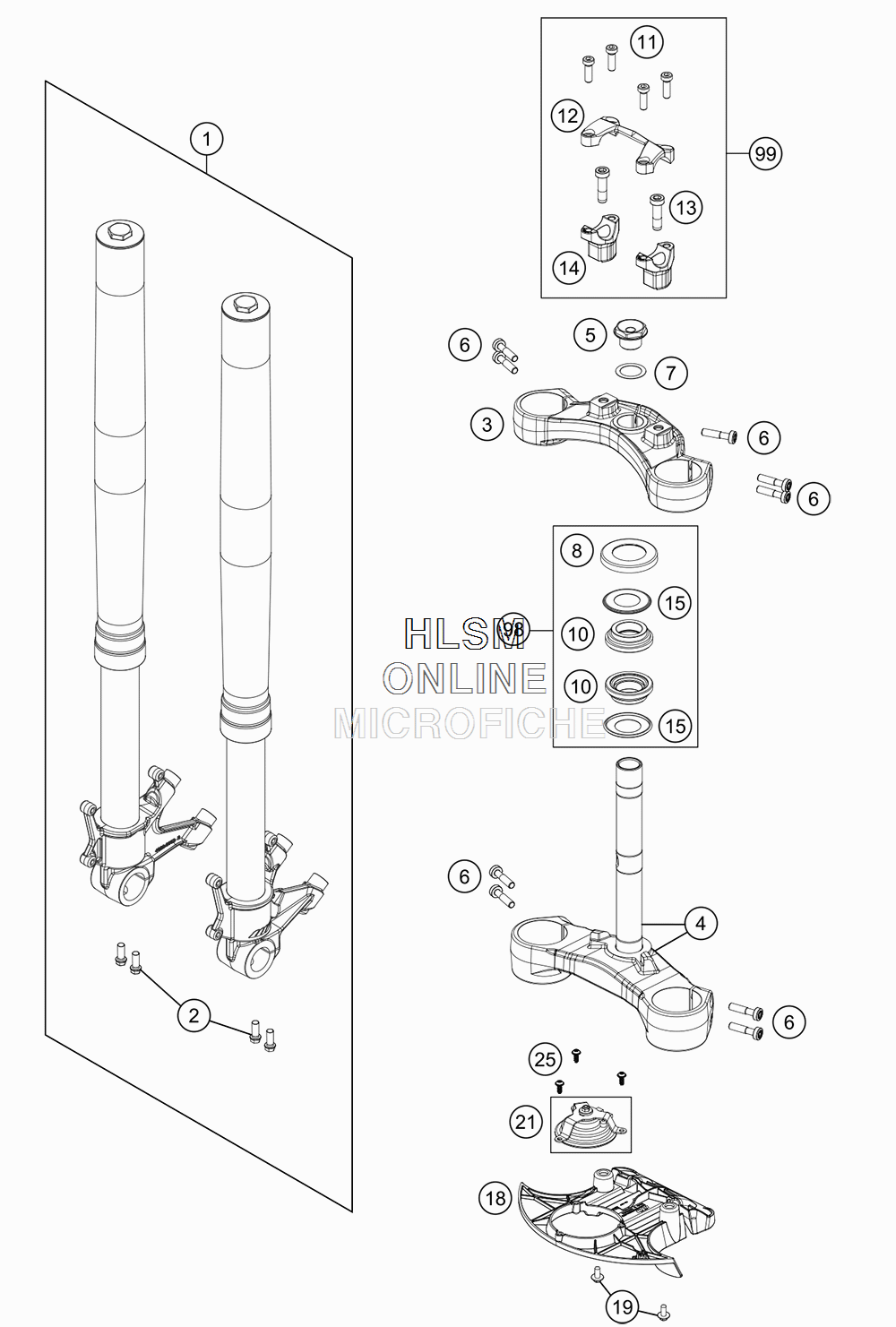

FRONT FORK- TRIPLE CLAMP для Ktm 1090 ADVENTURE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    05186O0801 FRONT FORK
    FRONT FORK
  • 2
    0025080206S HH COLLAR SCREW M8X20 ISA40
    HH COLLAR SCREW M8X20 ISA40
  • 3
    6070113403233S TRIPLE CLAMP
    TRIPLE CLAMP
  • 4
    6080113203233S TRIPLE CLAMP
    TRIPLE CLAMP
  • 5
    6900103600001 STEERING HEAD SCREW
    STEERING HEAD SCREW
  • 6
    0035080356 AH-COLLAR SCREW M8X35 ISA45
    AH-COLLAR SCREW M8X35 ISA45
  • 7
    0988253505 THRUST WASH DIN0988-25X35X0,5
    THRUST WASH DIN0988-25X35X0,5
  • 8
    69001086100 PROT. RING STEER. HEAD BEARING
    PROT. RING STEER. HEAD BEARING
  • 10
    69001181000 STEERINGHEAD KPL.17
    STEERINGHEAD KPL.17
  • 11
    0025080256 HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 12
    7720103800030 HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 13
    0032100356S AH-COLLAR SCREW M10X35 ISA45
    AH-COLLAR SCREW M10X35 ISA45
  • 14
    5940103903730 HANDLEB.SUPP. D=28MM H=37MM
    HANDLEB.SUPP. D=28MM H=37MM
  • 15
    69001084000 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 18
    60308024200 TRIPLECLAMP-FACEPLATE BELOW
    TRIPLECLAMP-FACEPLATE BELOW
  • 19
    0024060136 HH COLLAR SCREW M6X13
    HH COLLAR SCREW M6X13
  • 21
    60311060100 HORN
    HORN
  • 25
    0081050121 SCREW FOR PLASTIC K50X12
    SCREW FOR PLASTIC K50X12
  • 98
    69001181010 STEARING HEAD REP. KIT
    STEARING HEAD REP. KIT
  • 99
    00050000927 HANDLEBAR SUPPOR T KIT
    HANDLEBAR SUPPOR T KIT
