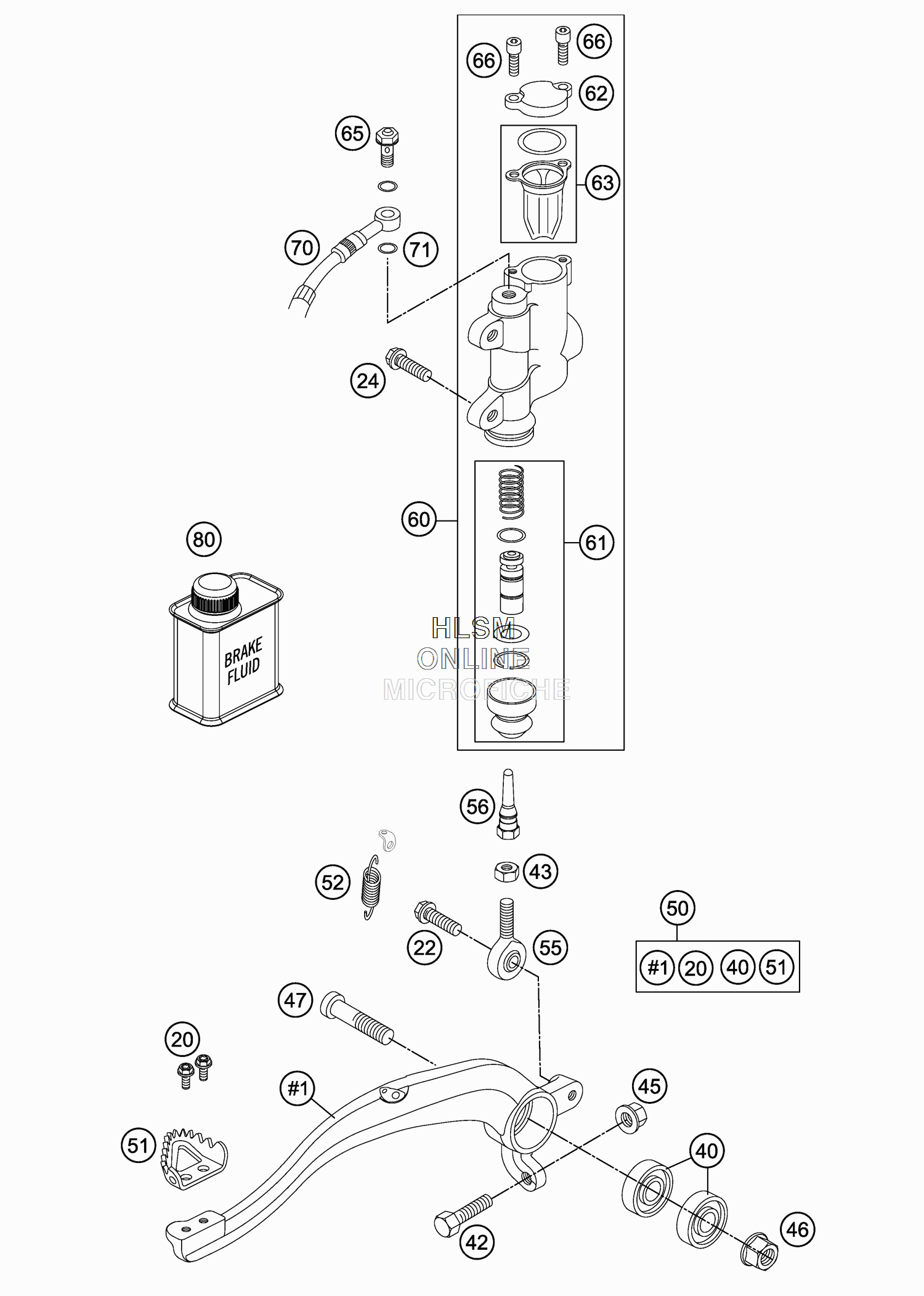

REAR BRAKE CONTROL для Ktm 85 SX 17/14 - 2016 года выпуска

  • №
    Артикул
    Название
  • 20
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
  • 22
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 24
    0025060126 HH COLLAR SCREW M6X12
    HH COLLAR SCREW M6X12
  • 40
    0625060002 BALL BEARING SKF 6000-2RS1
    BALL BEARING SKF 6000-2RS1
  • 42
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 43
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 45
    46030045000 COLLAR NUT M8 WS=10
    COLLAR NUT M8 WS=10
  • 46
    54630044000 COLLAR NUT M10 WS=13
    COLLAR NUT M10 WS=13
  • 47
    0032100406S AH-COLLAR SCREW M10X40 ISA45
    AH-COLLAR SCREW M10X40 ISA45
  • 50
    47013050044 FOOT BRAKE LEVER CPL. 85 SX 03
    FOOT BRAKE LEVER CPL. 85 SX 03
  • 51
    54813051000 STEP PLATE FOR BRAKE LEVER
    STEP PLATE FOR BRAKE LEVER
  • 52
    54603062100 RETURN SPRING FOR BRAKE LEVER
    RETURN SPRING FOR BRAKE LEVER
  • 55
    54813055000 SWIVEL HEAD KA6
    SWIVEL HEAD KA6
  • 56
    47013056100 PRESSURE ROD 85 SX
    PRESSURE ROD 85 SX
  • 60
    47013060200 FOOT BRAKE CYL. R. CPL D=11
    FOOT BRAKE CYL. R. CPL D=11
  • 60
    47013060300 FOOT BRAKE CYL. R. CPL. D=12
    FOOT BRAKE CYL. R. CPL. D=12
  • 61
    47013061000 REP. SET PISTON REAR D=11
    REP. SET PISTON REAR D=11
  • 61
    47013061100 REP. SET PISTON REAR D=12
    REP. SET PISTON REAR D=12
  • 62
    47013062000 CYLINDER COVER REAR
    CYLINDER COVER REAR
  • 63
    47013063000 GASKET CYLINDER COVER REAR
    GASKET CYLINDER COVER REAR
  • 65
    47013025000 HOLLOW SCREW BRAKE CYLINDER
    HOLLOW SCREW BRAKE CYLINDER
  • 66
    0912040103 AH.SCREW DIN0912-M 4X10
    AH.SCREW DIN0912-M 4X10
  • 70
    47013070000 BRAKE HOSE REAR
    BRAKE HOSE REAR
  • 71
    0770080019 O-RING 8,00X1,00 FORMULA
    O-RING 8,00X1,00 FORMULA
  • 80
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
