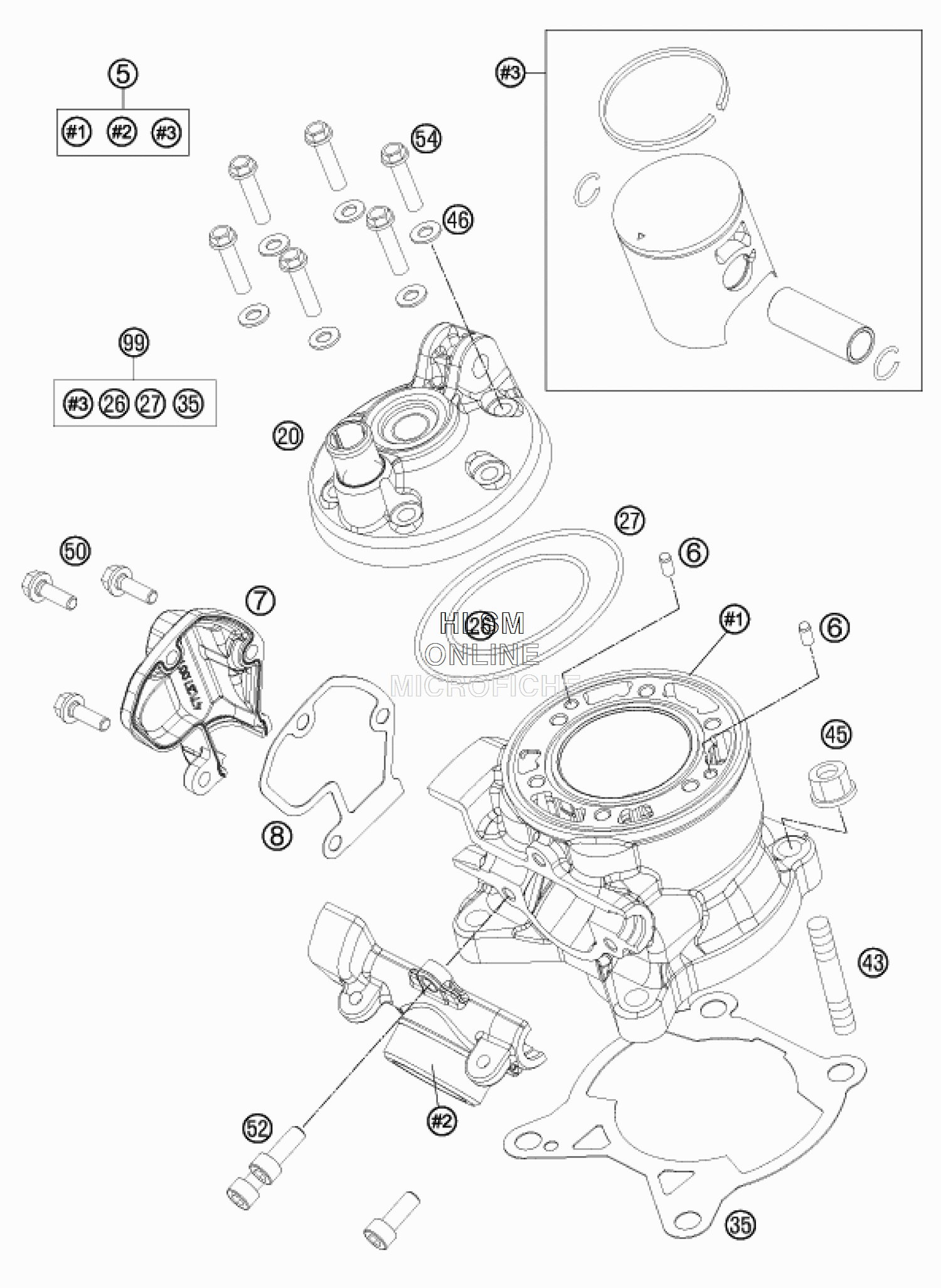

CYLINDER для Ktm 85 SX 17/14 - 2016 года выпуска

  • №
    Артикул
    Название
  • 5
    47130038000 CYLINDER - PISTON
    CYLINDER - PISTON
  • 6
    0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8
    NEEDLE ROL.DIN5402 NRB 4X9,8
  • 7
    47137007000 CONTROL COVER
    CONTROL COVER
  • 8
    47137008000 GASKET CONTROL COVER
    GASKET CONTROL COVER
  • 20
    47130006000 CYLINDER HEAD
    CYLINDER HEAD
  • 26
    0770540020 O-RING 54X2 VITON
    O-RING 54X2 VITON
  • 27
    0770800021 O-RING 80,00X2,00 VITON
    O-RING 80,00X2,00 VITON
  • 35
    47030035020 CYLINDER BASE GASKET 0,20MM
    CYLINDER BASE GASKET 0,20MM
  • 35
    47030035030 CYLINDER BASE GASKET 0,30MM
    CYLINDER BASE GASKET 0,30MM
  • 35
    47030035000 CYLINDER BASE GASKET 0,50MM
    CYLINDER BASE GASKET 0,50MM
  • 43
    0835080240 STUD DIN 0835-M 8X24
    STUD DIN 0835-M 8X24
  • 45
    46030045000 COLLAR NUT M8 WS=10
    COLLAR NUT M8 WS=10
  • 46
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 50
    0015050123 HH COLLAR SCREW M 5X12
    HH COLLAR SCREW M 5X12
  • 52
    0012060164 AH SCREW DIN6912 M6X16 SL
    AH SCREW DIN6912 M6X16 SL
  • 54
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 99
    00050000204 PISTON KIT GR.I 85 SX 06-15
    PISTON KIT GR.I 85 SX 06-15
  • 99
    00050000205 PISTON KIT GR.II 85 SX 03-15
    PISTON KIT GR.II 85 SX 03-15
