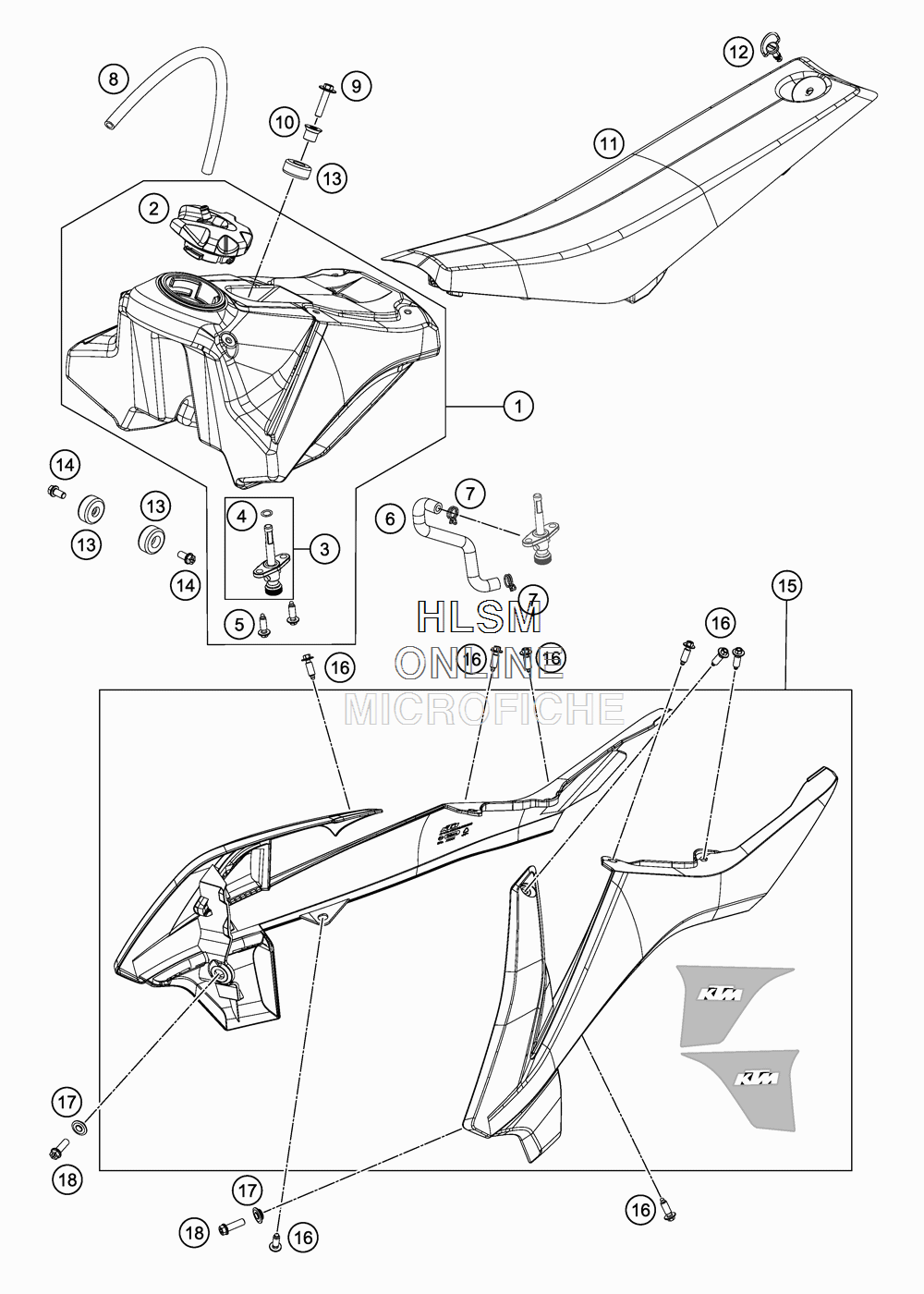

TANK SEAT COVER для Ktm 65 SX - 2016 года выпуска
-
№АртикулНазвание
-
14630701303330 FUEL TANK 3LFUEL TANK 3L
-
278107008044X4 TANK PLUG CPL.TANK PLUG CPL.
-
358507003200 FUEL PETCOCK CPL.FUEL PETCOCK CPL.
-
40770020130 O-RING 1,78X10,82X14,38 2-013O-RING 1,78X10,82X14,38 2-013
-
50017060205 SCREW FOR PLASTIC K60X20SCREW FOR PLASTIC K60X20
-
646307016000 FUEL HOSEFUEL HOSE
-
758007117000 YDNAC-CLAMP 10107 10MMYDNAC-CLAMP 10107 10MM
-
878007000270 PVC-HOSE 5,6X10X270MMPVC-HOSE 5,6X10X270MM
-
90024060273 COLLAR SCREW M6X27COLLAR SCREW M6X27
-
1077307026000 TANK BUSHINGTANK BUSHING
-
1146307040000 SEATSEAT
-
1245007040051 QUICK RELEASE CPL. 50QUICK RELEASE CPL. 50
-
1350307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
140025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
1546308054000EBA SPOILER SET WITH DECALSPOILER SET WITH DECAL
-
160017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
1750308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
180025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
