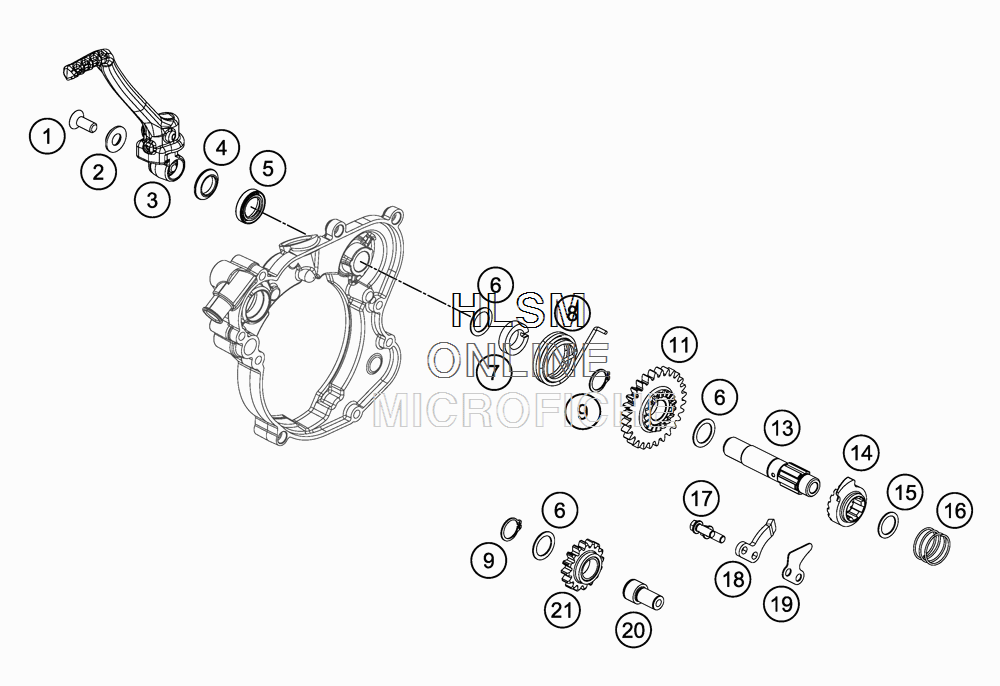

KICK STARTER для Ktm 65 SX - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    0019080206 COUNTER-SUNK SCREW ISA45 M8X20
    COUNTER-SUNK SCREW ISA45 M8X20
  • 2
    54633037000 WASHER 8MM GALVANIZED
    WASHER 8MM GALVANIZED
  • 3
    46333070044 KICK STARTER CPL
    KICK STARTER CPL
  • 4
    46233038000 SPACER SLEEVE
    SPACER SLEEVE
  • 5
    0760172860 SHAFT SEAL RING 17X28X6B NBR
    SHAFT SEAL RING 17X28X6B NBR
  • 6
    50333030000 STOP DISK 17,2X24X1
    STOP DISK 17,2X24X1
  • 7
    50333055000 DRIVING HUB
    DRIVING HUB
  • 8
    50333054000 KICKSTARTER SPRING 2,6MM
    KICKSTARTER SPRING 2,6MM
  • 9
    0471170010 CIRCLIP DIN0471-17X1
    CIRCLIP DIN0471-17X1
  • 11
    77033051000 KICKSTART. GEAR 28-T
    KICKSTART. GEAR 28-T
  • 13
    50333050000 KICKSTARTER SHAFT 125/200'98
    KICKSTARTER SHAFT 125/200'98
  • 14
    50333052000 KICKSTARTER RATCHET
    KICKSTARTER RATCHET
  • 15
    0988162210 THRUST WASHER DIN0988-16X22X1
    THRUST WASHER DIN0988-16X22X1
  • 16
    50333056000 SPRING 1,4MM
    SPRING 1,4MM
  • 17
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 18
    50333069000 STOP MET.SHEET 4MM
    STOP MET.SHEET 4MM
  • 19
    46233069001 COVER PLATE
    COVER PLATE
  • 20
    46233018000 BEARING PIN IDLER GEAR
    BEARING PIN IDLER GEAR
  • 21
    46233053016 INTERMEDIATE STARTING GEAR
    INTERMEDIATE STARTING GEAR
