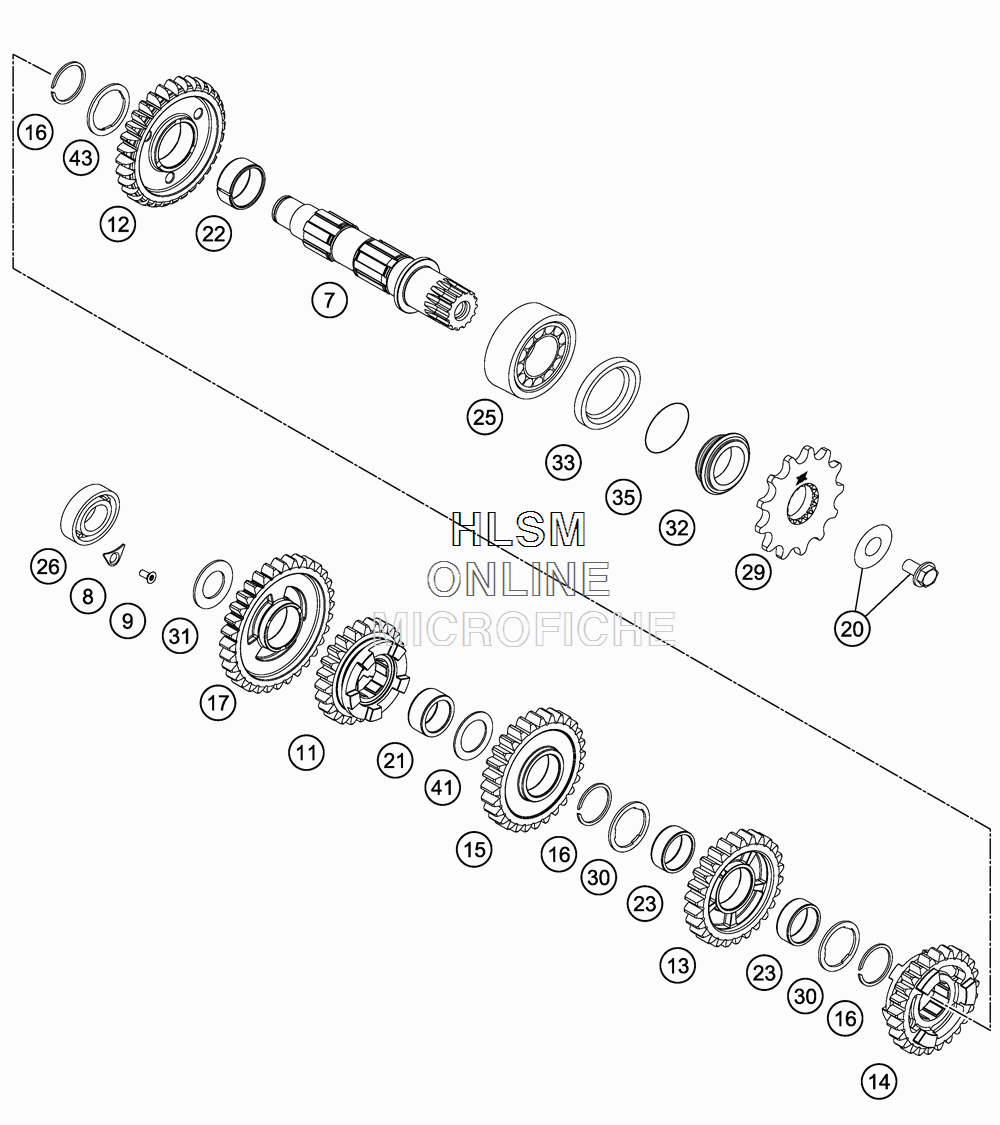

TRANSMISSION - COUNTERSHAFT для Ktm 350 XCF - 2016 года выпуска`

№

Артикул

Название
7

77233110000 COUNTERSHAFT

COUNTERSHAFT

31 110 ₽
8

75030085000 RETAINING PLATE F. CS BEARING

RETAINING PLATE F. CS BEARING

1 140 ₽
9

0019050106S INT. TORX FLAT HEAD M5X10 10.9

INT. TORX FLAT HEAD M5X10 10.9

290 ₽
11

54833216000 SLIDING GEAR 6.G., Z=20

SLIDING GEAR 6.G., Z=20

28 650 ₽
12

54833312000 IDLER GEAR 2. GEAR, 25

IDLER GEAR 2. GEAR, 25

21 470 ₽
13

54833214000 IDLER GEAR 4.G., Z=23

IDLER GEAR 4.G., Z=23

21 610 ₽
14

54833215000 SLIDING GEAR 5.G., Z=22

SLIDING GEAR 5.G., Z=22

21 730 ₽
15

54833213000 IDLER GEAR 3.G., Z= 25

IDLER GEAR 3.G., Z= 25

24 010 ₽
16

0417024000 CIRCLIP WS24

CIRCLIP WS24

320 ₽
17

54833311000 IDLER GEAR 1. GEAR, 31

IDLER GEAR 1. GEAR, 31

20 650 ₽
20

59033034044 SCREW 10.9+SPRING WASHER

SCREW 10.9+SPRING WASHER

2 050 ₽
21

0405202612 NEEDLE BEARING K 20X26X12

NEEDLE BEARING K 20X26X12

2 950 ₽
22

0405242812 NEDDLE BEAR. K24X28X11,9 DIV.

NEDDLE BEAR. K24X28X11,9 DIV.

1 670 ₽
23

0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED

NEEDLE BEAR.K 22X26X10 DIVIDED

3 130 ₽
25

49030023000 CYL.ROLL BEARING NJ205

CYL.ROLL BEARING NJ205

20 130 ₽
26

0625062035 BALL BEARING 6203 JR2 C3

BALL BEARING 6203 JR2 C3

3 890 ₽
29

79233029014 SPROCKET 14T

SPROCKET 14T

8 110 ₽
29

79233029013 SPROCKET 13T

SPROCKET 13T

8 110 ₽
30

54833043000 STOP DISC 25X0,8X30X30X7H

STOP DISC 25X0,8X30X30X7H

1 200 ₽
31

77233020000 STOP DISK 17,2X30X1,3

STOP DISK 17,2X30X1,3

930 ₽
32

78133014000 SPACER SLEEVE COUNTER

SPACER SLEEVE COUNTER

7 650 ₽
33

0760324571 SHAFT SEAL RING 32X45X7 BSLNBR

SHAFT SEAL RING 32X45X7 BSLNBR

1 140 ₽
35

0770020220 O-RING 25,12X1,78 NBR70

O-RING 25,12X1,78 NBR70

590 ₽
41

54833080000 STOP DISC 20,2X30X1

STOP DISC 20,2X30X1

640 ₽
43

54833044000 STOP DISC 25X31X1,5

STOP DISC 25X31X1,5

1 030 ₽
