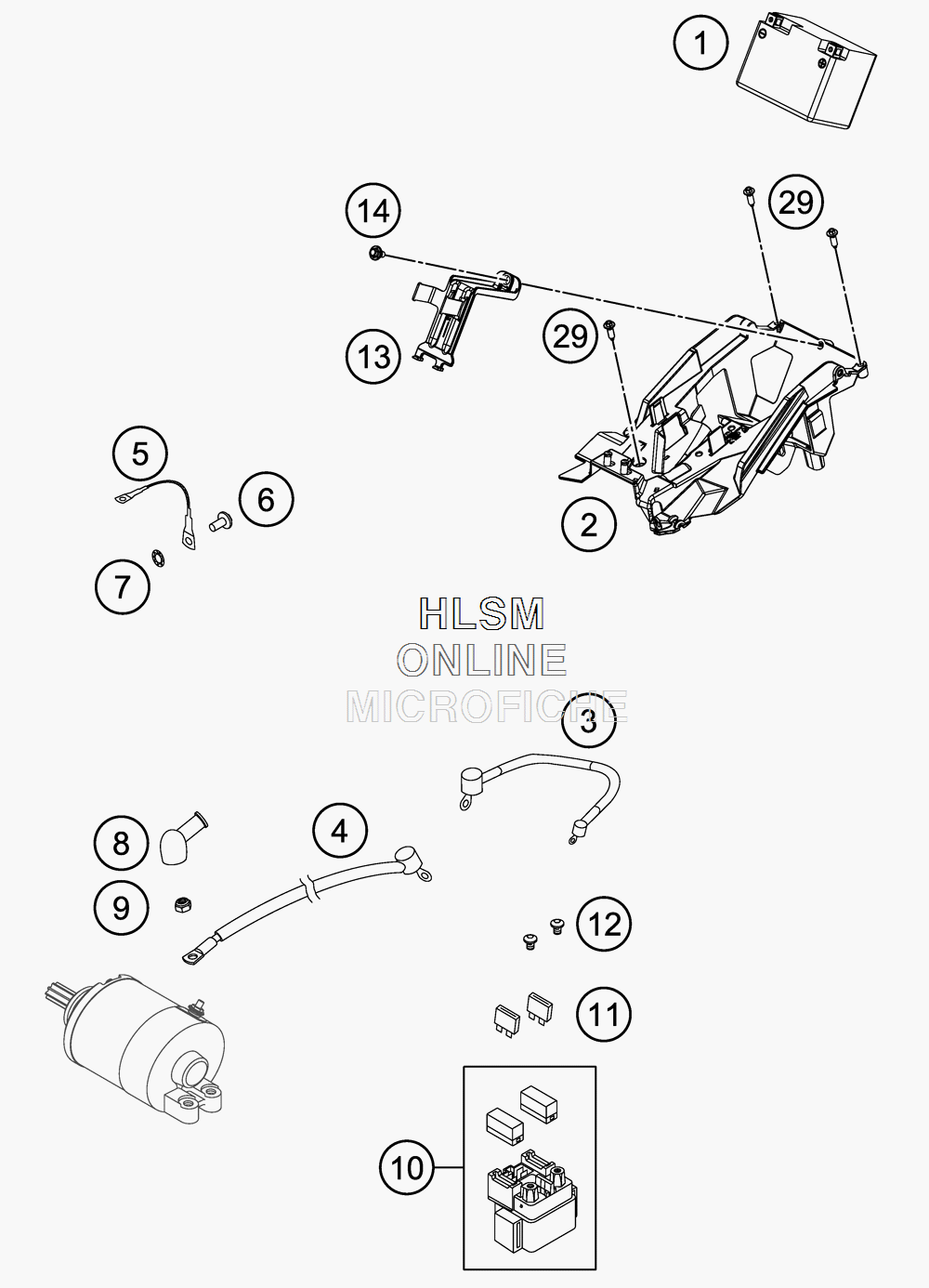

BATTERY для Ktm 350 XCF - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    77311953000 LITHIUM ION BATTERY 5S
    LITHIUM ION BATTERY 5S
  • 2
    79011055100 BATTER Y BOX
    BATTER Y BOX
  • 3
    58711086000 WIRING HARNESS BATTERY DUKE'99
    WIRING HARNESS BATTERY DUKE'99
  • 4
    58411059100 STARTERCABLE 700 MM
    STARTERCABLE 700 MM
  • 5
    58411097100 GROUND CABLE D=6MM L=140MM '97
    GROUND CABLE D=6MM L=140MM '97
  • 6
    0009050106 EJOT SPIRAL SCREW SF M5X10-K
    EJOT SPIRAL SCREW SF M5X10-K
  • 7
    58411098100 CONTACT WASHER M6 VSV-K6
    CONTACT WASHER M6 VSV-K6
  • 8
    77240099000 PROTECTION CAP F. STARTER ENG.
    PROTECTION CAP F. STARTER ENG.
  • 9
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 10
    58211058000 STARTER RELAY 12V
    STARTER RELAY 12V
  • 11
    58011109110 FUSE 10 A
    FUSE 10 A
  • 12
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
  • 13
    79011056100 BA TTER Y BOX SUPPOR T
    BA TTER Y BOX SUPPOR T
  • 14
    59001092050 SPECIAL SCREW M6X12,5
    SPECIAL SCREW M6X12,5
  • 29
    0017060205 SCREW FOR PLASTIC K60X20
    SCREW FOR PLASTIC K60X20
