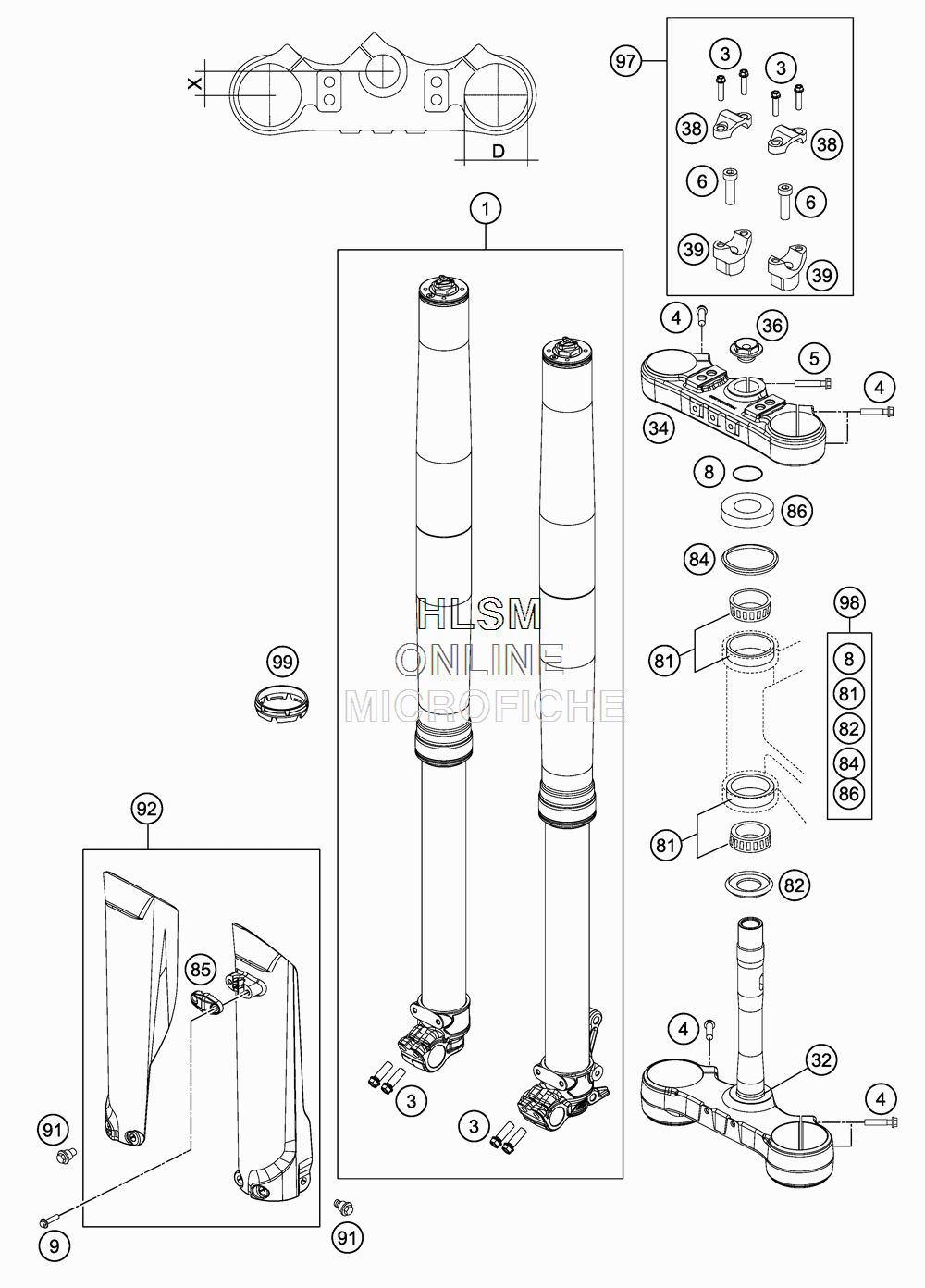

FRONT FORK TRIPLE CLAMP для Ktm 350 EXCF - 2016 года выпуска`
-
№АртикулНазвание
-
114187P6701 FORK 350EXC-F/XCF -W 16FORK 350EXC-F/XCF -W 16
-
30025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
40025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
50025080356 HH COLLAR SCREW M8X35HH COLLAR SCREW M8X35
-
60032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
80770025035 O-RING 25X3,55 NBR70O-RING 25X3,55 NBR70
-
90017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
3278101132122 BOTTOM TRIPLE CLAMP CPL.BOTTOM TRIPLE CLAMP CPL.
-
3478101034022 TOP TRIPLE CLAMP X=22MMTOP TRIPLE CLAMP X=22MM
-
3670009082000 AXLESCREW M20X1.5; SW17AXLESCREW M20X1.5; SW17
-
3877201038000 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
3959401039032 HANDLEB.SUPP. D=28MM H=32MMHANDLEB.SUPP. D=28MM H=32MM
-
3959401039037 HANDLEB.SUPP. D=28MM H=37MMHANDLEB.SUPP. D=28MM H=37MM
-
3959401039042 HANDLEB.SUPP. D=28MM H=42MMHANDLEB.SUPP. D=28MM H=42MM
-
8154201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8277701084000 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
857770108500028 CLAMP BRAKE HOSECLAMP BRAKE HOSE
-
8678101086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
927770109400028C FORK PROTECTION SETFORK PROTECTION SET
-
9700050000921 HANDLEBAR SUPPORT KIT D28/H37HANDLEBAR SUPPORT KIT D28/H37
-
9800050000930 STEARING HEAD REP. KIT 06-15STEARING HEAD REP. KIT 06-15
-
9948600698 FORK PROTECTION RINGFORK PROTECTION RING
