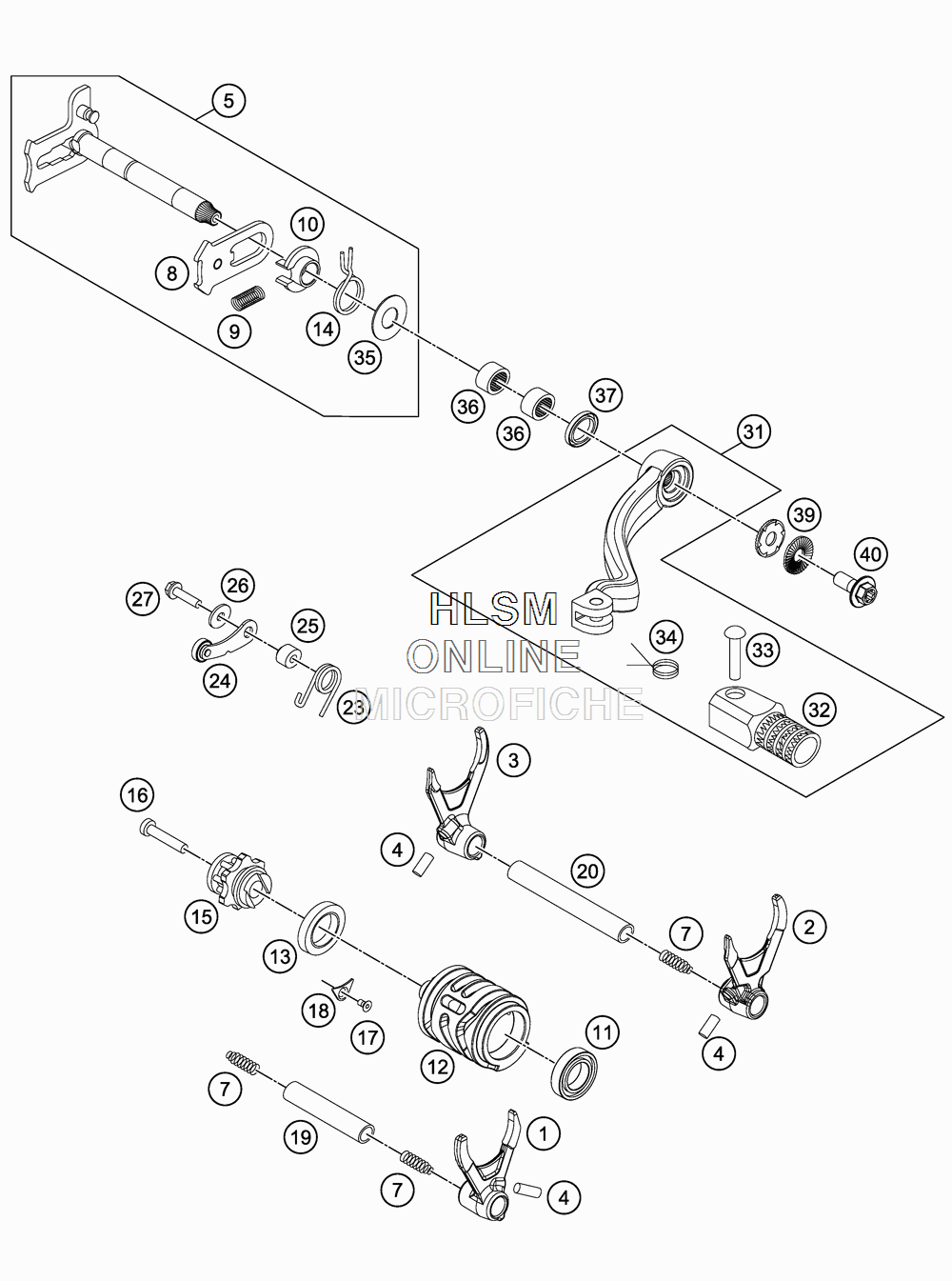

SHIFTING MECHANISM для Ktm 350 EXCF - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    54834201000 SHIFT FORK 5./6.G.
    SHIFT FORK 5./6.G.
  • 2
    54834202000 SHIFT FORK 2./4.G.
    SHIFT FORK 2./4.G.
  • 3
    54834203000 SHIFT FORK 1./3. G.
    SHIFT FORK 1./3. G.
  • 4
    0402061480 NEEDLE ROLLER DIN5402 6X14,8
    NEEDLE ROLLER DIN5402 6X14,8
  • 5
    54834005133 SHIFT SHAFT ASSY
    SHIFT SHAFT ASSY
  • 7
    58038023200 PRESSURE SPRING 0,9MM
    PRESSURE SPRING 0,9MM
  • 8
    61234008044 SLIDING PLATE
    SLIDING PLATE
  • 9
    56534013100 TENSIONING SPRING 0,8MM
    TENSIONING SPRING 0,8MM
  • 10
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 11
    0625069034 BALL BEARING 6903 C4
    BALL BEARING 6903 C4
  • 12
    54834212200 GEAR SHIFT DRUM
    GEAR SHIFT DRUM
  • 13
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 14
    54834014000 RETURN SPRING
    RETURN SPRING
  • 15
    77234015000 SHIFT LOCATING DRUM CPL.
    SHIFT LOCATING DRUM CPL.
  • 16
    0912060353 AH SCREW DIN0912-M 6X35
    AH SCREW DIN0912-M 6X35
  • 17
    0019050106S INT. TORX FLAT HEAD M5X10 10.9
    INT. TORX FLAT HEAD M5X10 10.9
  • 18
    75030085000 RETAINING PLATE F. CS BEARING
    RETAINING PLATE F. CS BEARING
  • 19
    54834019000 SHIFT. RAIL MAIN SHAFT 250/300
    SHIFT. RAIL MAIN SHAFT 250/300
  • 20
    54834020000 SHIFT. RAIL C. SHAFT 250/300
    SHIFT. RAIL C. SHAFT 250/300
  • 23
    60034023000 ARRESTING LEVER SPRING
    ARRESTING LEVER SPRING
  • 24
    50334024144 LOCATING LEVER CPL.
    LOCATING LEVER CPL.
  • 25
    54634052300 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 26
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 27
    0025050206 HH COLLAR SCREW M5X20
    HH COLLAR SCREW M5X20
  • 31
    59034031000 SHIFT LEVER CPL.RACING
    SHIFT LEVER CPL.RACING
  • 32
    54634131000 STEP PLATE FOR SHIFT LEVER
    STEP PLATE FOR SHIFT LEVER
  • 33
    54634031050 BOLT 6X25 FOR SHIFT LEVER
    BOLT 6X25 FOR SHIFT LEVER
  • 34
    54634032100 SHIFTING LEVER SPRING
    SHIFTING LEVER SPRING
  • 35
    54634050000 STOP DISK 14X30X1
    STOP DISK 14X30X1
  • 36
    54632095000 NEEDLE BEAR.HK 1412 14X20X12
    NEEDLE BEAR.HK 1412 14X20X12
  • 37
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 39
    50233041500 NORDLOCK WASHER M6
    NORDLOCK WASHER M6
  • 40
    0024060156S HH COLLAR SCREW M6X15 TORX30
    HH COLLAR SCREW M6X15 TORX30
